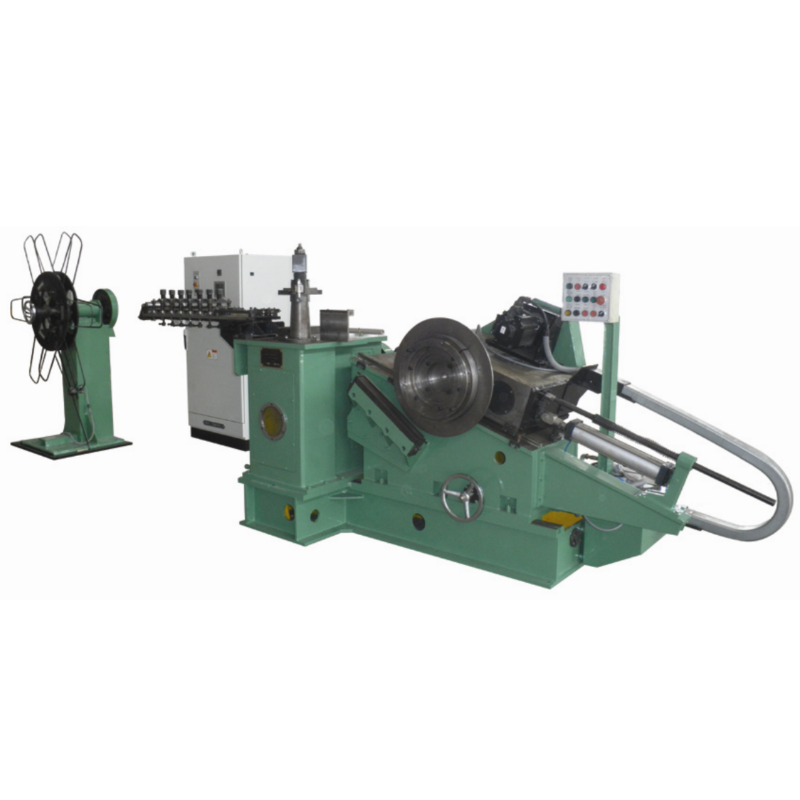

CNC Axial Flux Motor Stator Winding Stamping machine （4 servos）

CNC Axial Flux Motor Stator Winding Stamping machine （4 servos）

Overview
Recommended Products

I Description of the machine

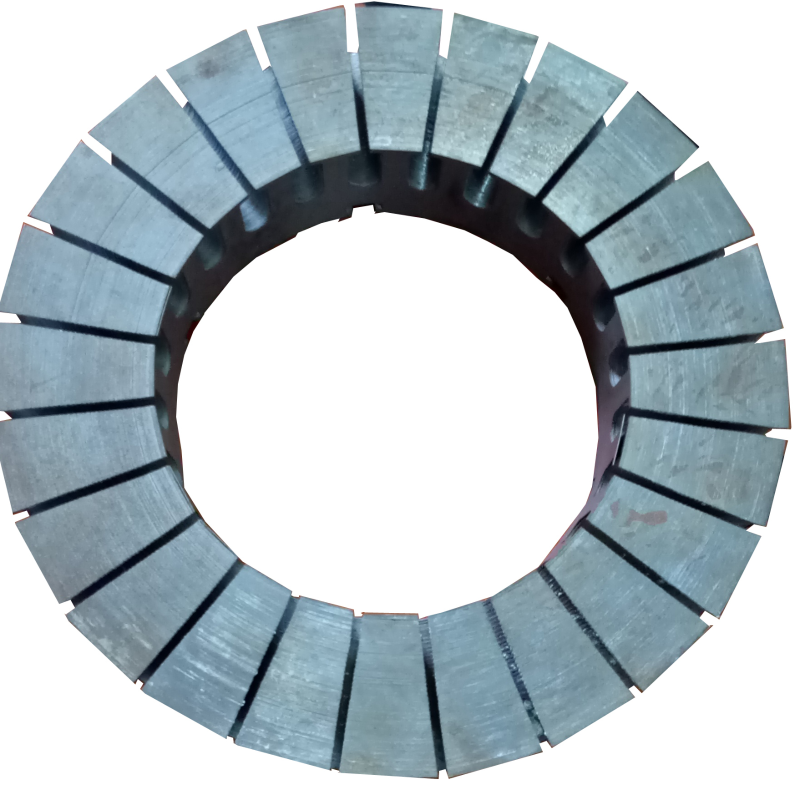

This machine is used for producing axial direction air gap disk motors.

II Feature

1- Winding parts is consist of high-precision gear and the dedicated servo system (Siemens, Yaskawa, or Delta systems), with intelligent control and high precision.

2- Pressure machine is used of lower transmission press, small shaking and smooth operation.

3- Winding mechanism use randomized compensation, in order to promise grooved uniformity, because of thickness error.

4- HIM system- It can be set the numbers of grooves, no need change exchange gears.

5- Winding motor use Yaskawa servo motor, stable and reliable operation, stepless speed.

6- Failure warning and automatic diagnosis function.

7- This machine can add automatic welding equipment.

Component part of machines: Feeding section, sliding block section, lubricating section, winding section, machine body, gas circuit and electric section.

III Main technical data

Name	Data	Data
Machine code	JRJ-25KN-400	J98K2-31.5-600
Normal force	25kN	31.5kN
Slider stroke	20mm	20mm
Max. movement times for slider	120-350rpm	120-350rpm
Max. thickness of punching	0.5mm	0.5mm
Max. closing height	160mm	160mm (170)
The height of lower die	80mm	80mm
Diameter of die handle hole x depth	φ32H7*20	φ32H7*20
Closing height regulating variable	20mm	20mm
Width of strip	＜80mm	＜80mm
ID of stator	≥80mm	≥380mm
OD of stator	≤400mm	＜600mm
Speed	350 times of stroke per minute	10-300
Suitable number of grooves	6-999	6-999
Angle for slot shape	18° (left and right-handed rotation)	18° (left and right-handed rotation)
ID of strip on pay-off stand	450-510mm or customized	450-510mm or customized
OD of strip on pay-off stand	900mm or customized	900mm or customized
Working pressure of compressed air	0.6MPa	0.6MPa
Punching & winding servo motor	SGMGH, Yaskawa	SGMGH, Yaskawa
Dimension (L x W x H)	6100 x 1200 x 1800mm	6100 x 1200 x 1800mm
