Automatic Prepreg Cutting Machine Fully Automatic High Precision Cutter Custom Width Touch Screen Low Material Waste
✔ High Cutting Precision
✔ Perfect for Prepreg Materials
✔ Low Material Waste
- Overview
- Recommended Products
- Carbon fiber prepreg
- Glass fiber prepreg
- Composite roll materials for new energy & aerospace industry
- Large sheet composite raw materials
Product Overview

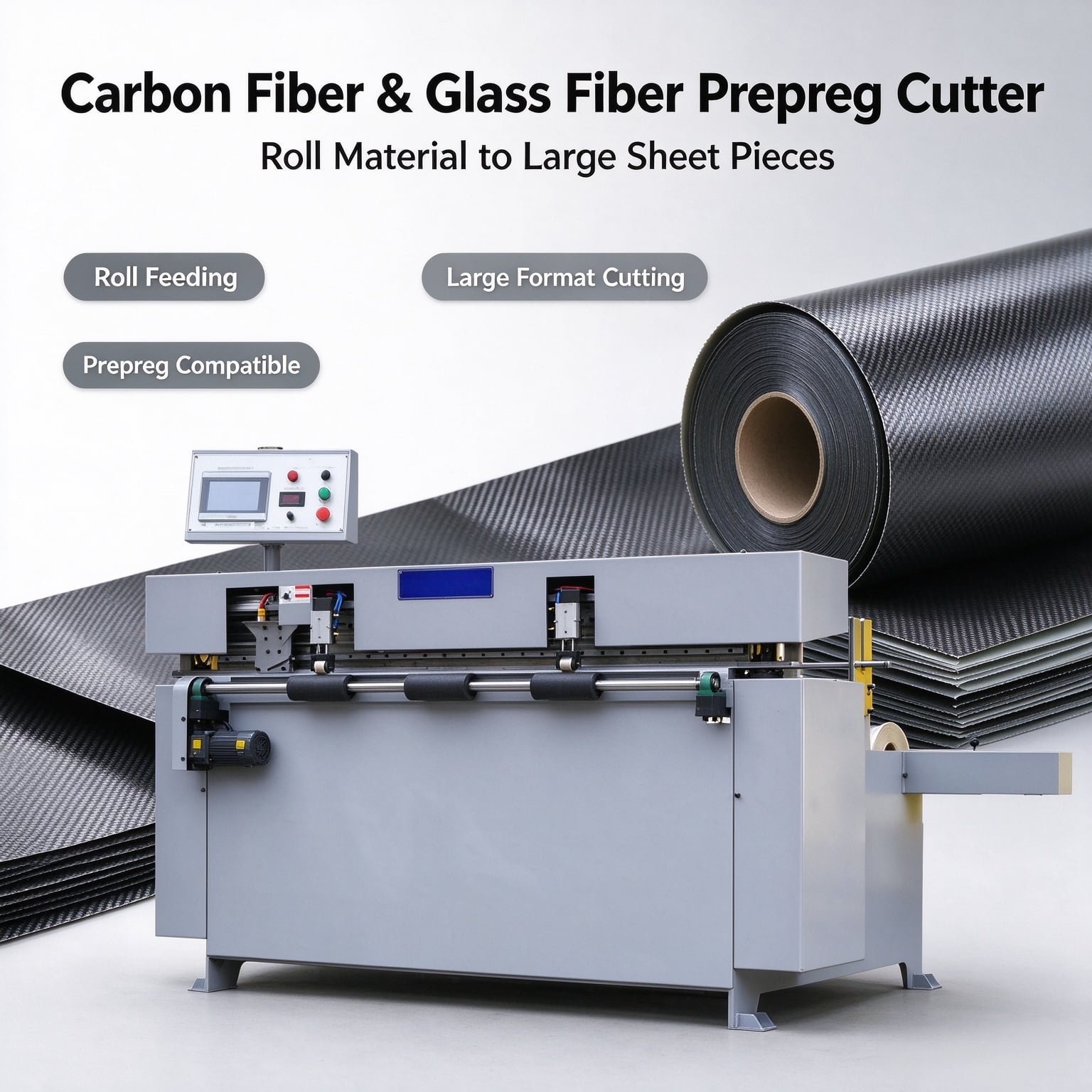

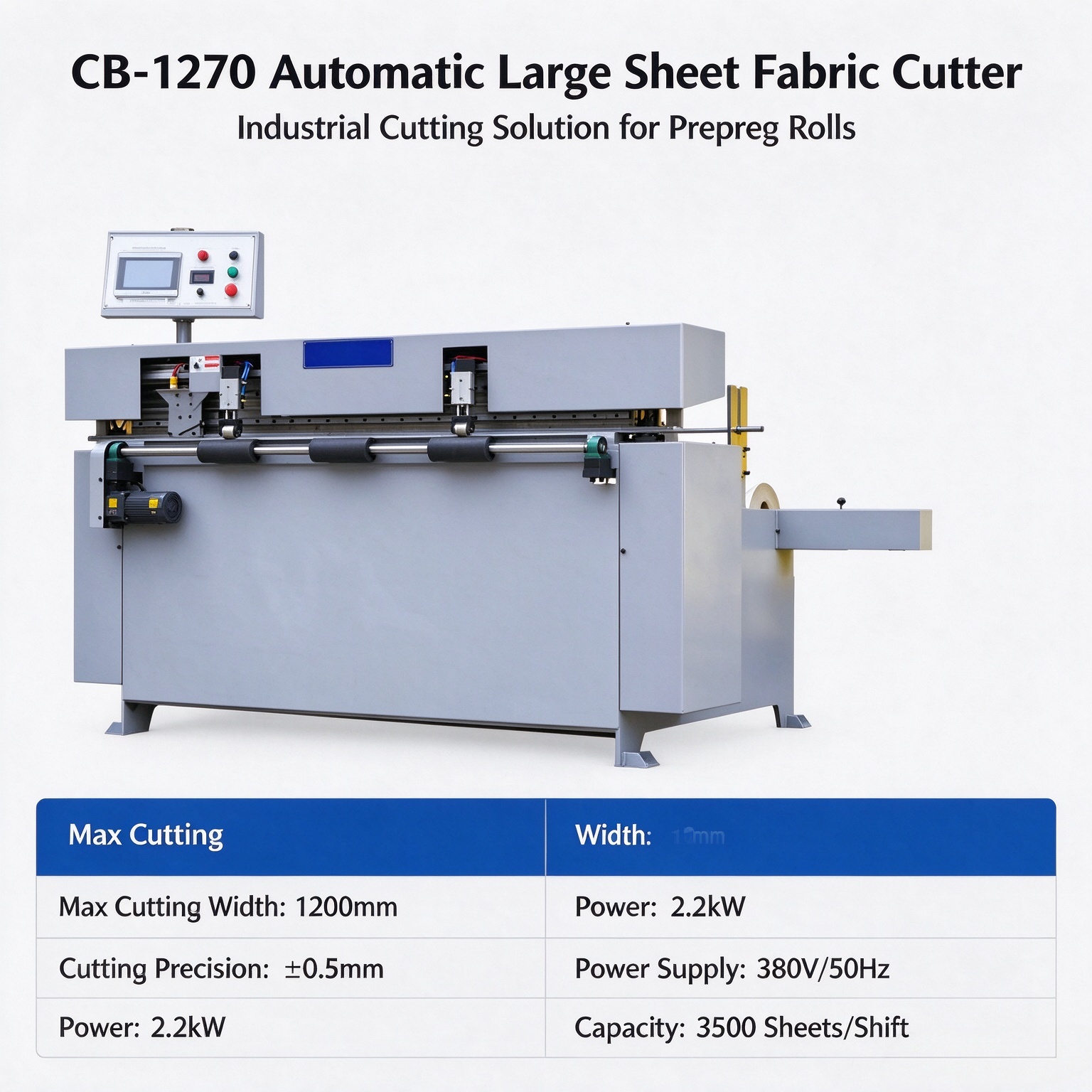

This CB-1270 automatic large sheet fabric cutter is designed for automatic cutting of whole rolls of carbon fiber and glass fiber prepreg into large pieces. The onboard fabric size, quantity, speed, and knife damage alarm parameters can all be set through the touch screen. It features fast cutting speed, high dimensional accuracy and material saving. After parameter setup, it can run automatically without manual supervision, greatly boosting efficiency and cutting labor costs.
Key Advantages
1. Touch Screen Numerical Control
All working parameters including size, quantity, speed and knife damage alarm are adjustable on touch screen, simple operation.
2. High Cutting Precision & Material Saving

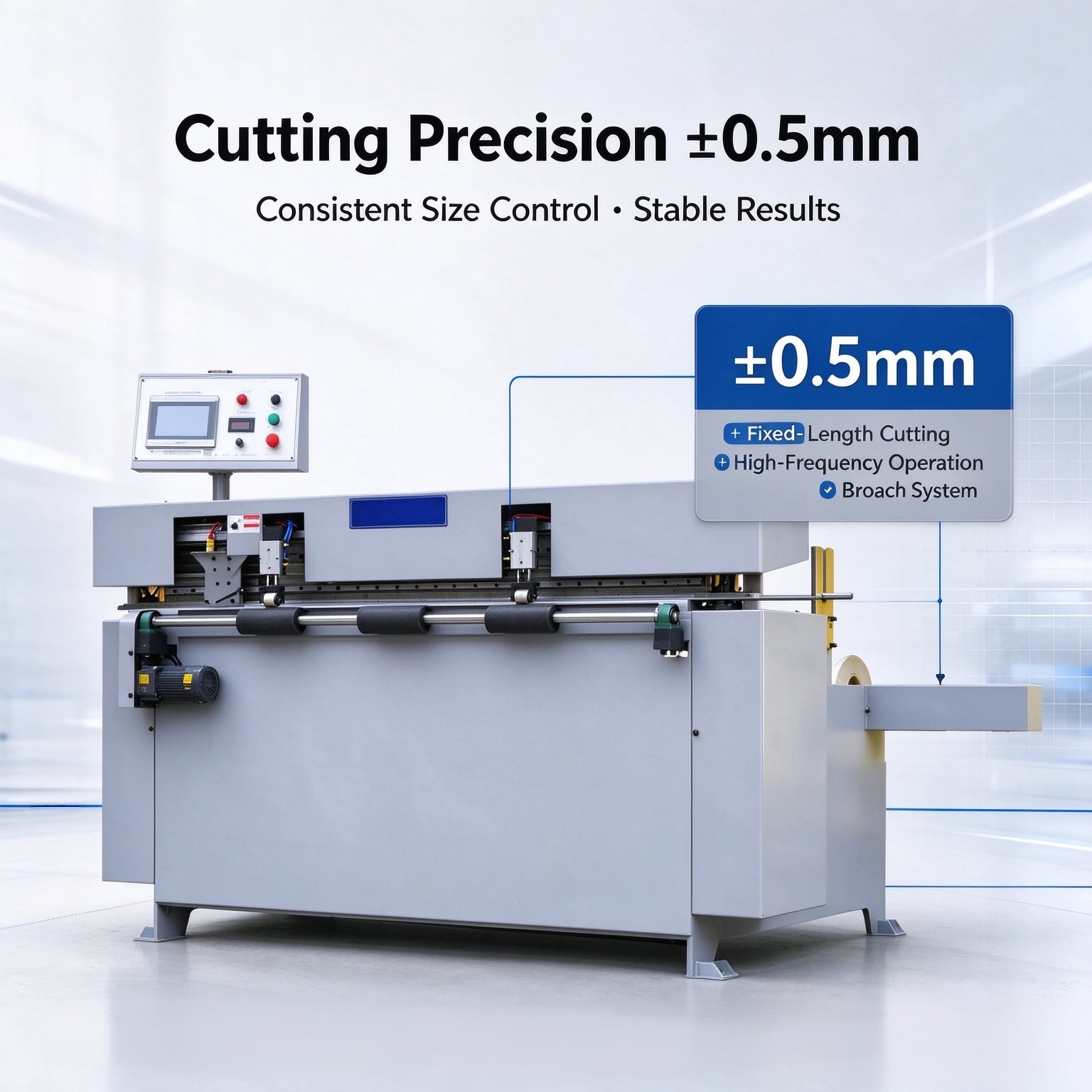

Cutting size precision reaches ±0.5mm. Stable cutting reduces material waste.
3. High Production Efficiency
Working capacity up to 3500 sheets per shift (based on single sheet length of 1000mm). Efficiency is more than twice that of traditional manual two-person fabric cutting.
4. Automatic Unattended Operation
After finishing parameter settings, the machine works automatically without continuous on-site management to lower labor cost.
5. Wide Cutting Width & Customizable Size
Max cutting width 1200mm, and the width can be customized to satisfy different production demands.
Applications
This machine is widely used for cutting:
Main Equipment Configuration
| No | Name | Qty (set) | Application of equipment |
| 1 | Automatic feeding & length setting system | 1 | Auto feeding and length positioning of prepreg rolls |
| 2 | Broad type cutting mechanism | 1 | Realize large sheet cutting for composite fabric |
| 3 | Touch screen numerical control system | 1 | Parameter setting and running status monitoring |
| 4 | Servo drive system | 1 | Stable feeding and accurate length control |
| 5 | Knife damage alarm module | 1 | Real-time cutter wear monitoring and alarm |
| 6 | Pneumatic control assembly | 1 | Provide stable cutting power, air pressure 0.4-0.6MPa |
| 7 | Main machine frame | 1 | Support and fix all functional components |
| 8 | Material receiving platform | 1 | Receive cut large fabric sheets |
| 9 | Electrical control cabinet | 1 | Power distribution and whole machine control |
FAQ
Q1: What materials can this machine cut?
A: It is suitable for whole rolls of carbon fiber prepreg and glass fiber prepreg.
Q2: Can the cutting width be customized?
A: Yes. The maximum standard cutting width is 1200mm, customized width is available.
Q3: What is the power supply requirement?
A: Rated power 2.2kW, power supply 380V/50Hz, air pressure 0.4-0.6MPa.
 |
 |
