Manual Fabric Cutting Machine With Optional Extended Table Textile Cloth Cutter for Garment Factory Fabric Cutting
✔ Smooth cutting edge, no fraying
✔ Gear motor broach cutting, stable operation
✔ Optional extended worktable for wide cutting
- Overview
- Recommended Products
- Fiberglass fabric cutting
- Composite material fabric processing
- Industrial textile cutting
- Rod wrapping fabric production
Product Overview
This SCB-2400 Manual Fabric Cutter adopts gear motor drive and broach type cutting mode. It is specially developed for fabric cutting, widely used in cutting various fabrics. The maximum cutting width reaches 1400mm and maximum winding length is 2400mm. It features stable running and easy operation, greatly improving fabric cutting efficiency.
Key Advantages

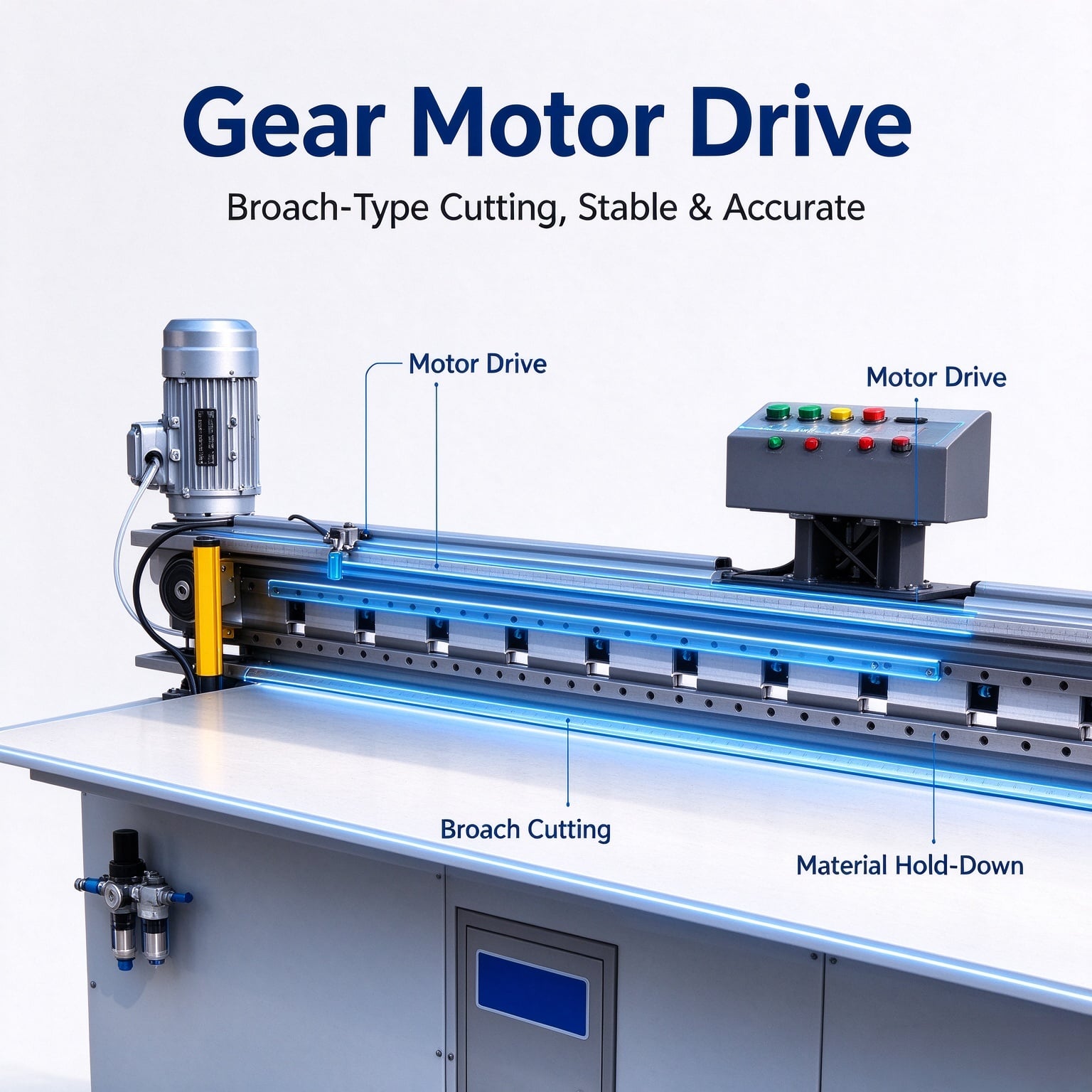

1. Stable Gear Motor Driving
Gear motor drive ensures smooth cutting movement. Broach type cutting delivers clean fabric edge with neat cutting result.
2. Large Cutting & Winding Capacity
Max cutting width 1400mm and max winding length 2400mm. Rod wrapping capacity reaches 3600-3800 knots per shift for high productivity.
3. Simple Operation & Low Maintenance
Manual feeding design with intuitive operation. It requires less training for operators and has low failure rate.

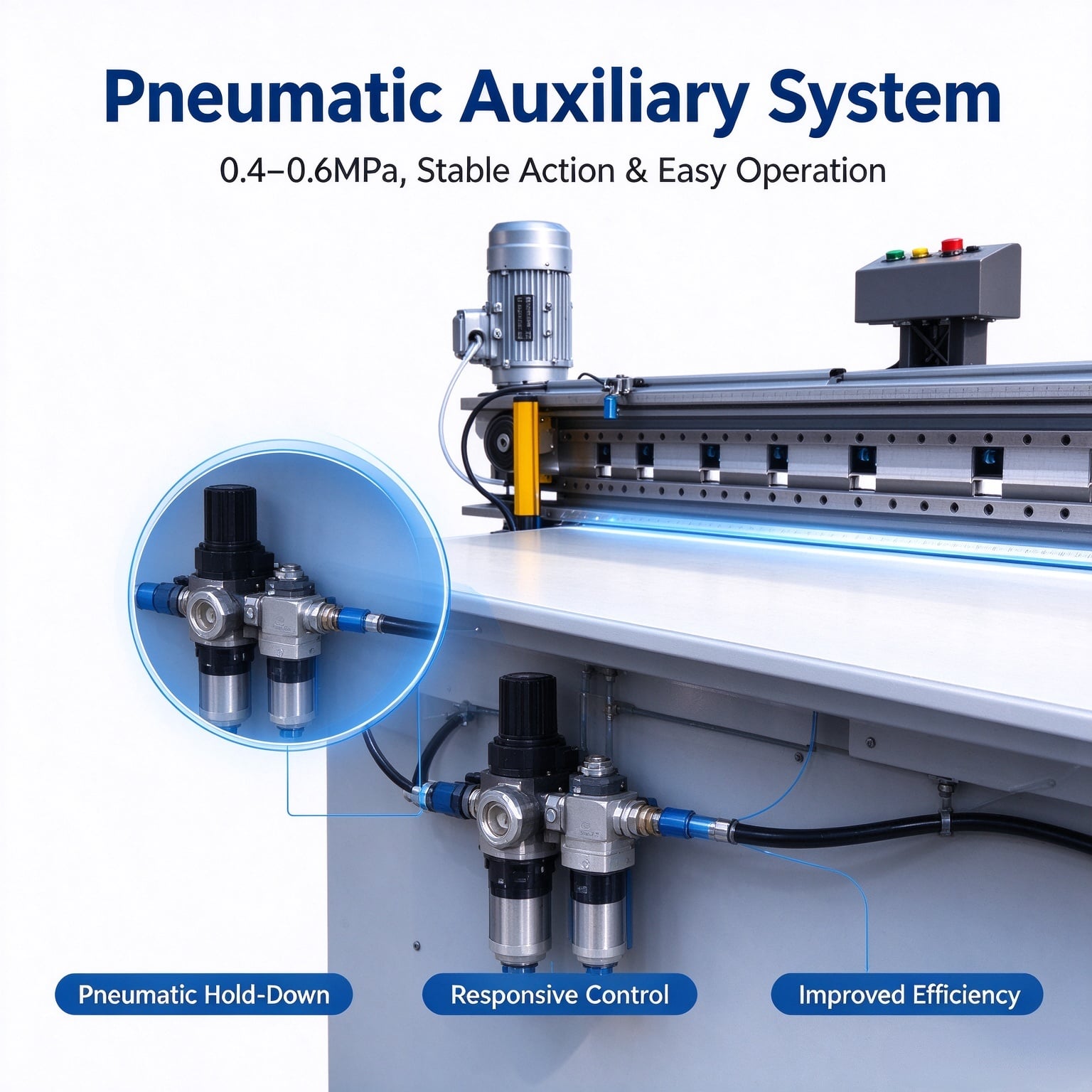

4. Reliable Pneumatic System
Working with 0.4-0.6MPa air pressure, stable clamping performance. It matches well with fabric processing workflow.
5. Compact & Robust Structure
Solid machine frame, overall dimension 2450×2300×1600mm. It occupies reasonable workshop space for factory layout.
Applications
This machine is widely used for cutting various fabrics in industries below:
Main Equipment Configuration
| No | Name | Qty (set) | Application of equipment |
| 1 | Machine Main Body | 1 | Main frame for cutting and supporting |
| 2 | Gear Motor | 1 | Provide driving power for cutting movement |
| 3 | Broach Cutting Assembly | 1 | Fabric broach type cutting |
| 4 | Pneumatic Control Unit | 1 | Fabric clamping and pressure control |
| 5 | Operation Control Panel | 1 | Start/stop and parameter control |
| 6 | Worktable | 1 | Support fabric during processing |
| 7 | Air Filter Regulator | 1 | Air source treatment, 0.4-0.6MPa |
| 8 | Motor (Auxiliary) | 1 | Auxiliary power, 0.2kW |
| 9 | Electrical Control Cabinet | 1 | Circuit protection and power distribution |
FAQ
Q1: What is the maximum cutting width of this machine?
A: The maximum cutting width is 1400mm, and the maximum winding length is 2400mm.
Q2: What is the power requirement?
A: Total power is 1.2kW +0.2kW, power voltage 380V/50Hz, air pressure 0.4-0.6MPa.
Q3: What cutting mode does it adopt?
A: It uses gear motor drive, broach type cutting for fabric cutting.
 |
 |
