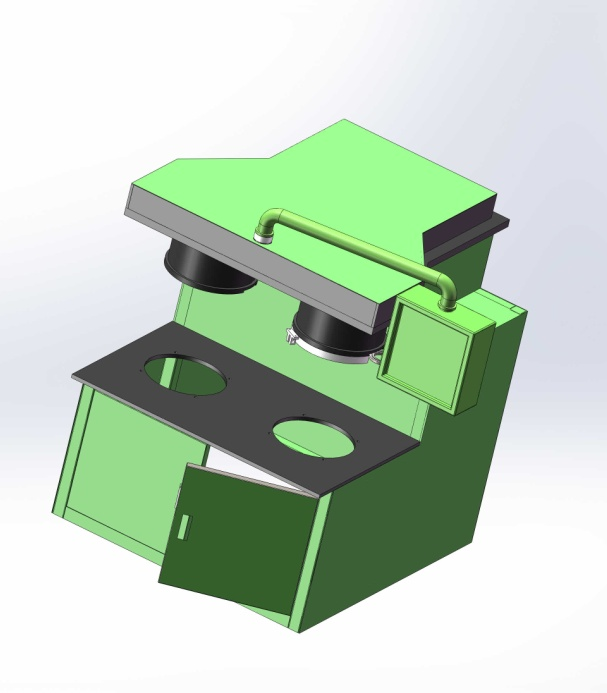

I Description of the machine

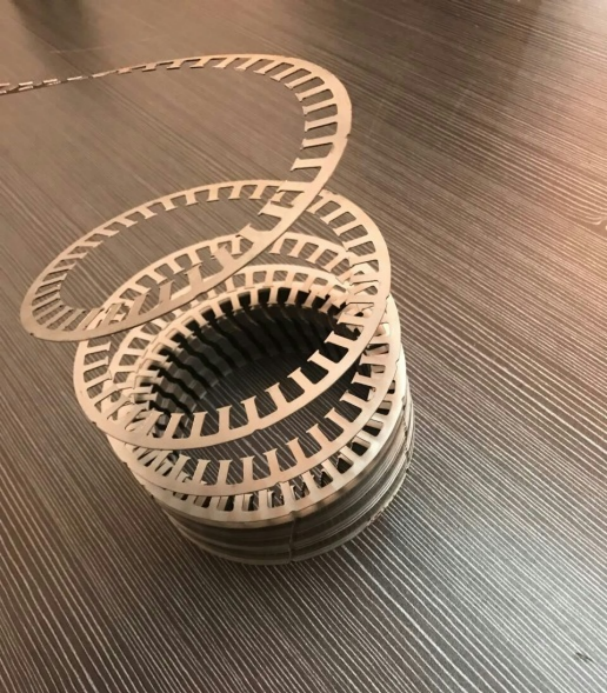

This machine is suitable for winding automobile stators. It can spiral wind steel belts with punching to form required shape and size with automatic.
This machine has two air cylinders.
II Feature
1- Specialized for automobile stators, servo motor driving, 24 hours working.
2- PLC control, simple operation and easy maintenance.
3- Safety protection device.
4- Machine body is made by 20mm thickness plate.
5- Winding die is processed by heat treatment and processing, which promise long life and high accuracy.
III Main technical data
| Item | Data |
| Machine code | DRJ-01 |
| Winding speed | 0-200rpm |
| Capacity | 2-3pcs/min |
| Motor power | AC220V/1.5kW |
| Electric supply | 220V, 50-60Hz. |
| Air pressure | 0.6-0.8MPa |
| Machine dimension | About 920 x 860 x 1580mm |
| Machine weight | About 480kg |
| PLC | Mitsubishi |
| Low electric element | Omron/Schneider |
| Air cylinder and solenoid valve | AirTAC |
| Servo motor | Mige hangzhou . |
 |
 |
