BLDC Appliance Motors — Precision Automation for High-Volume Production
Project Overview

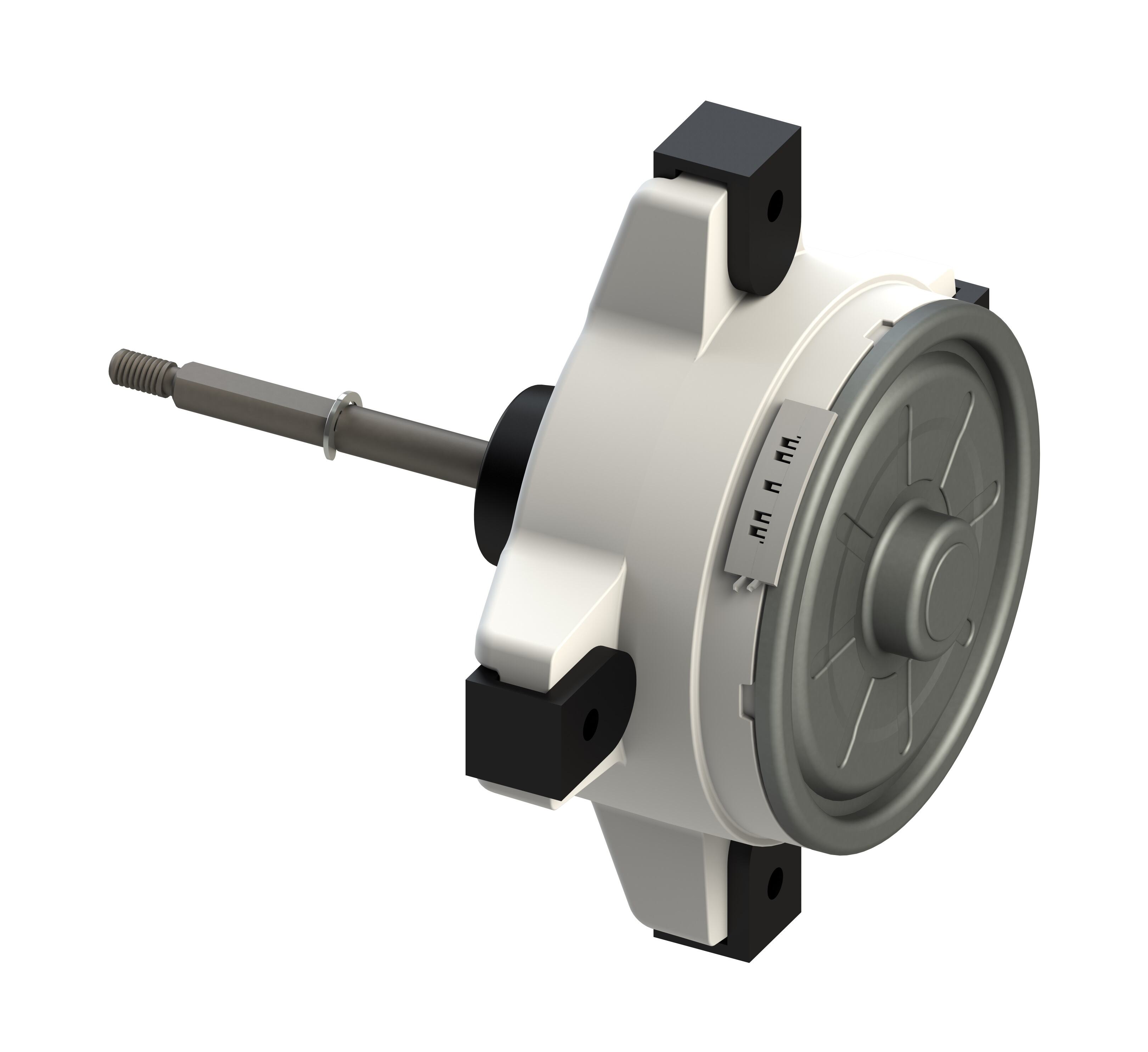

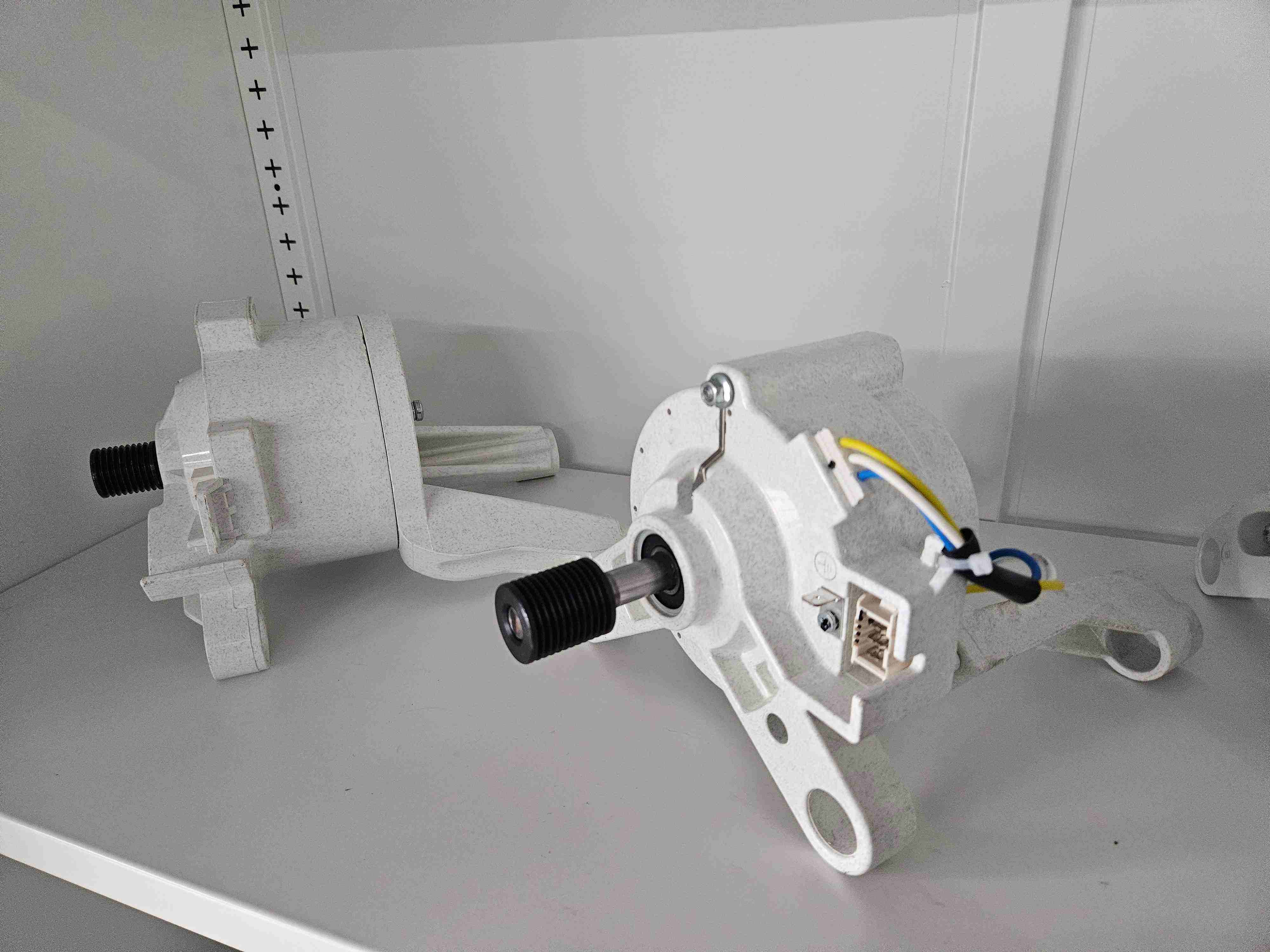

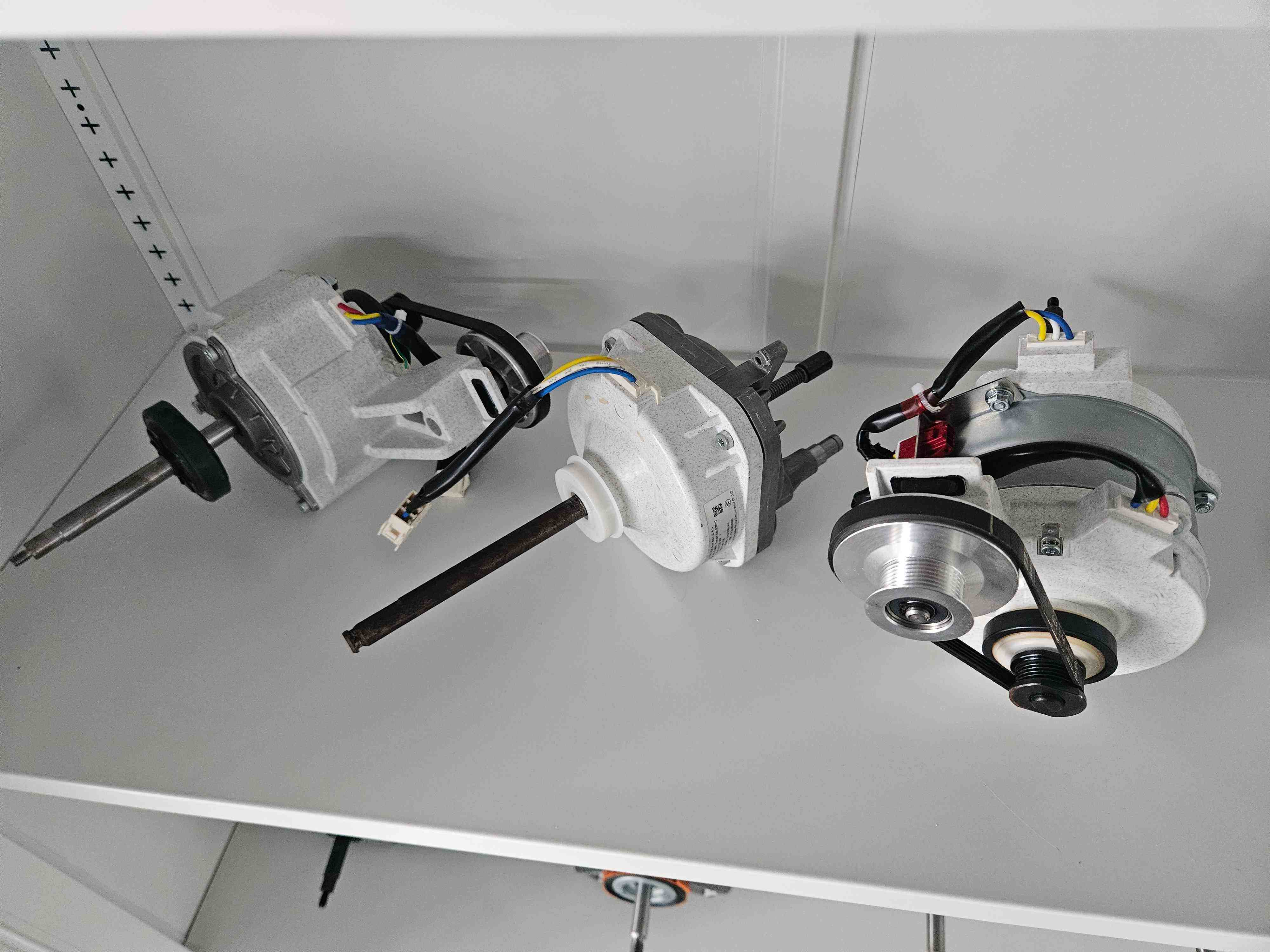

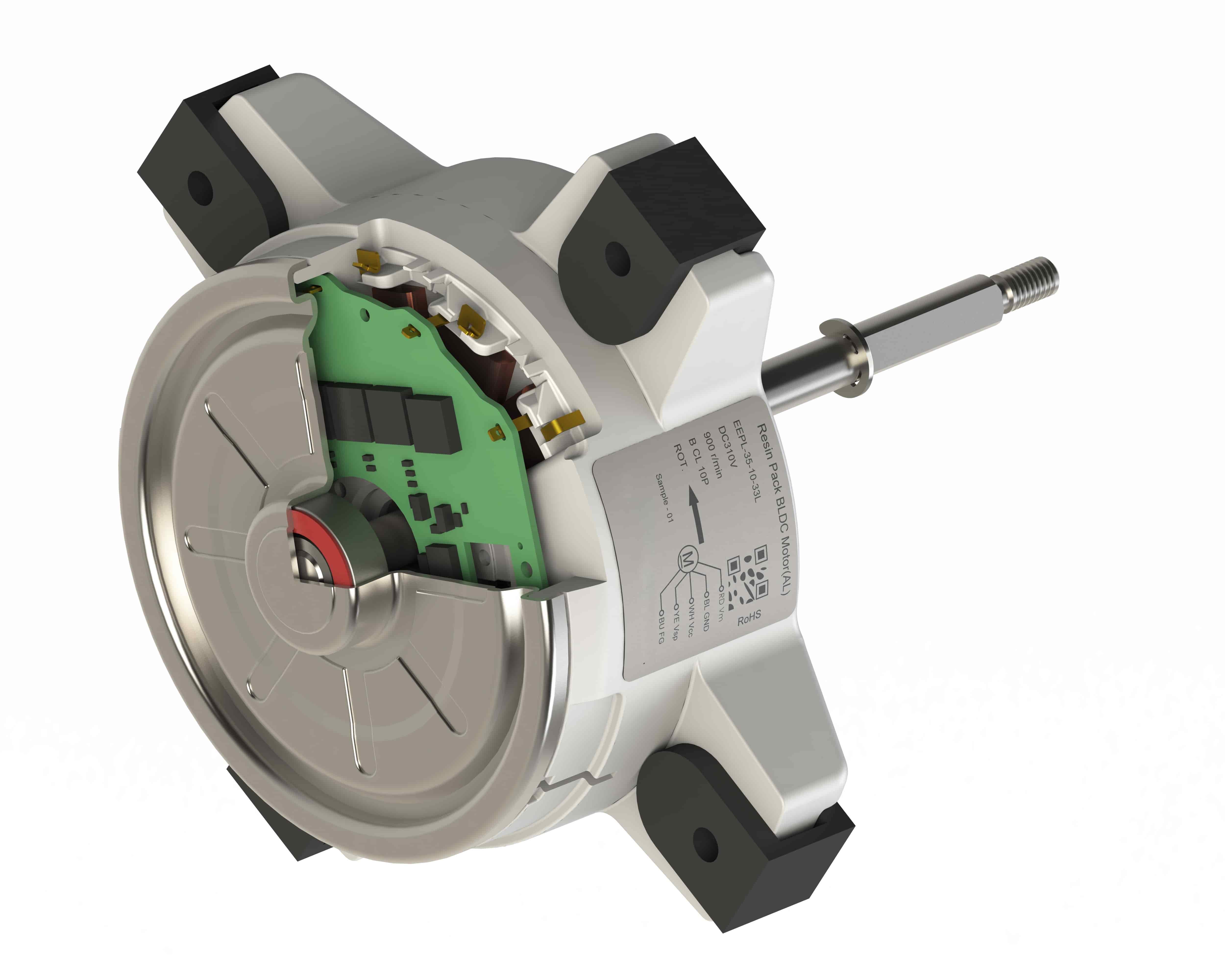

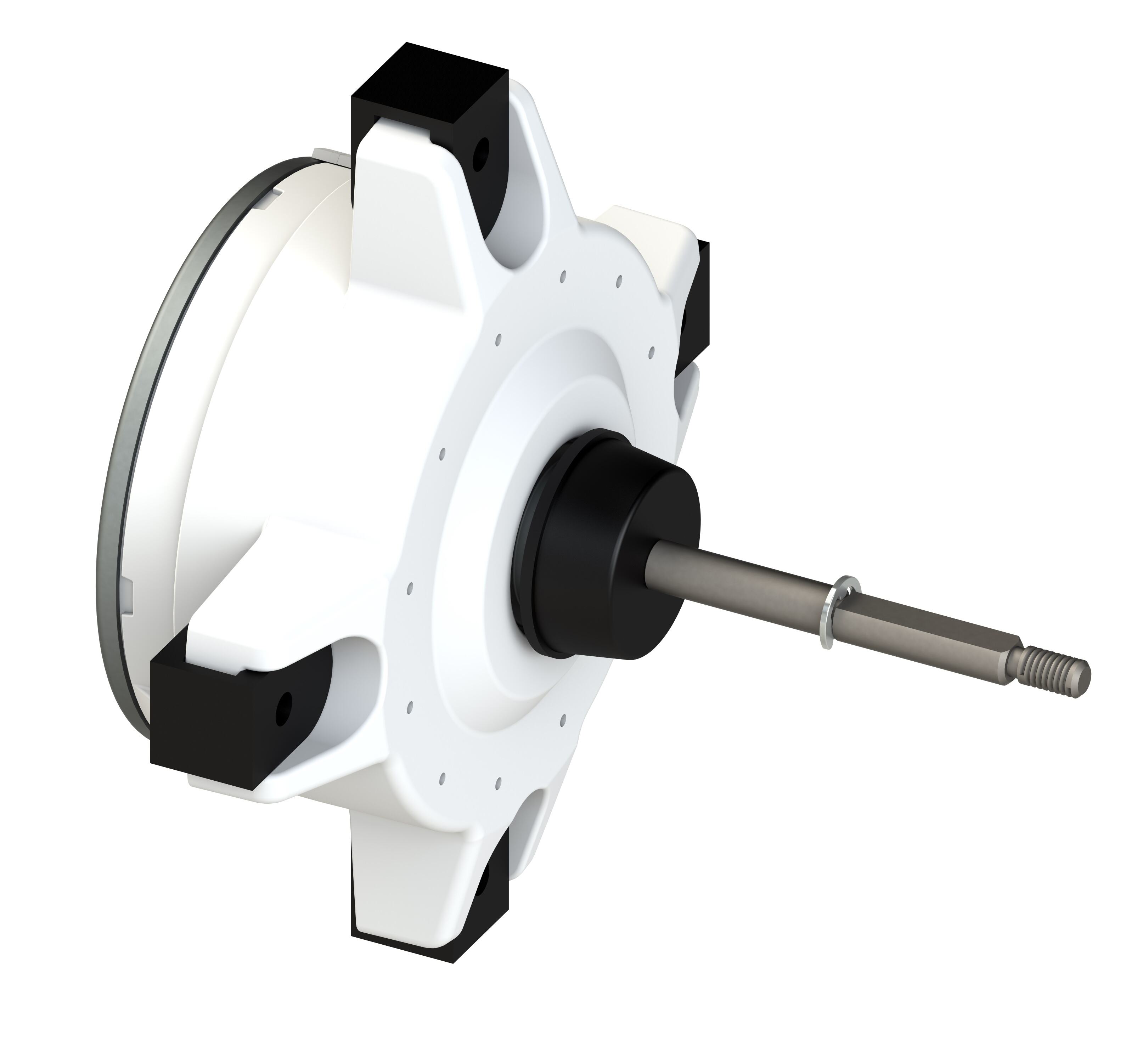

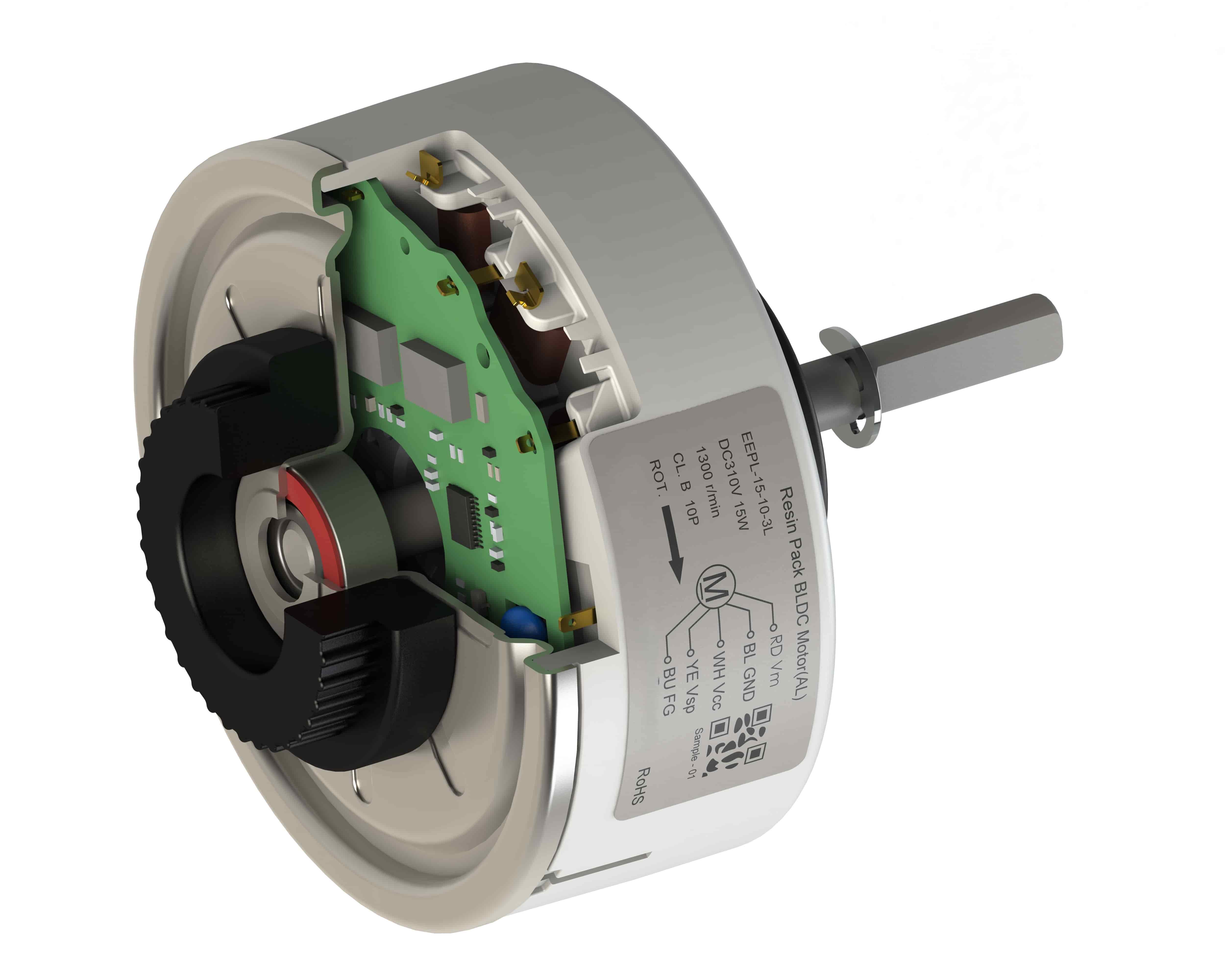

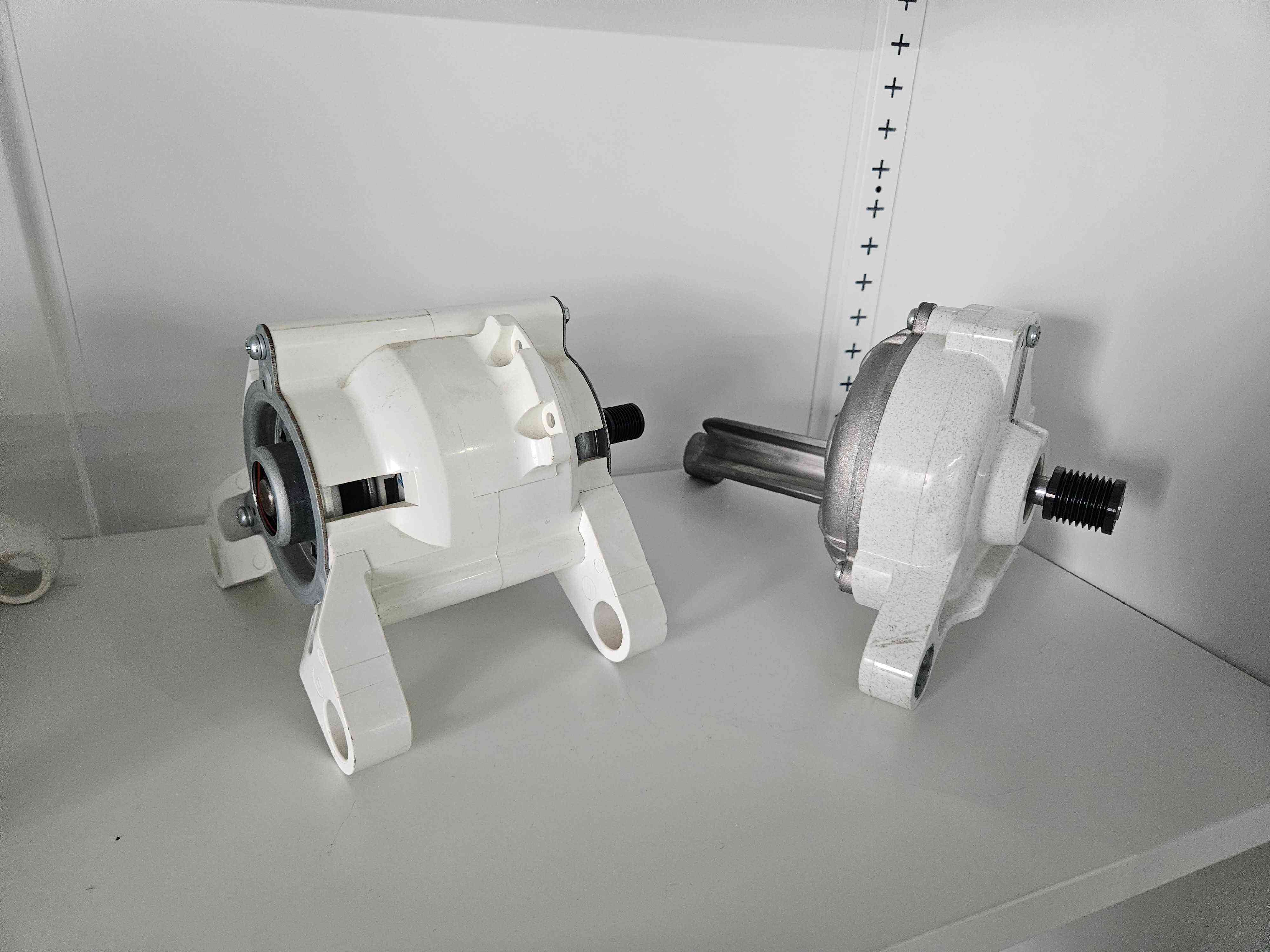

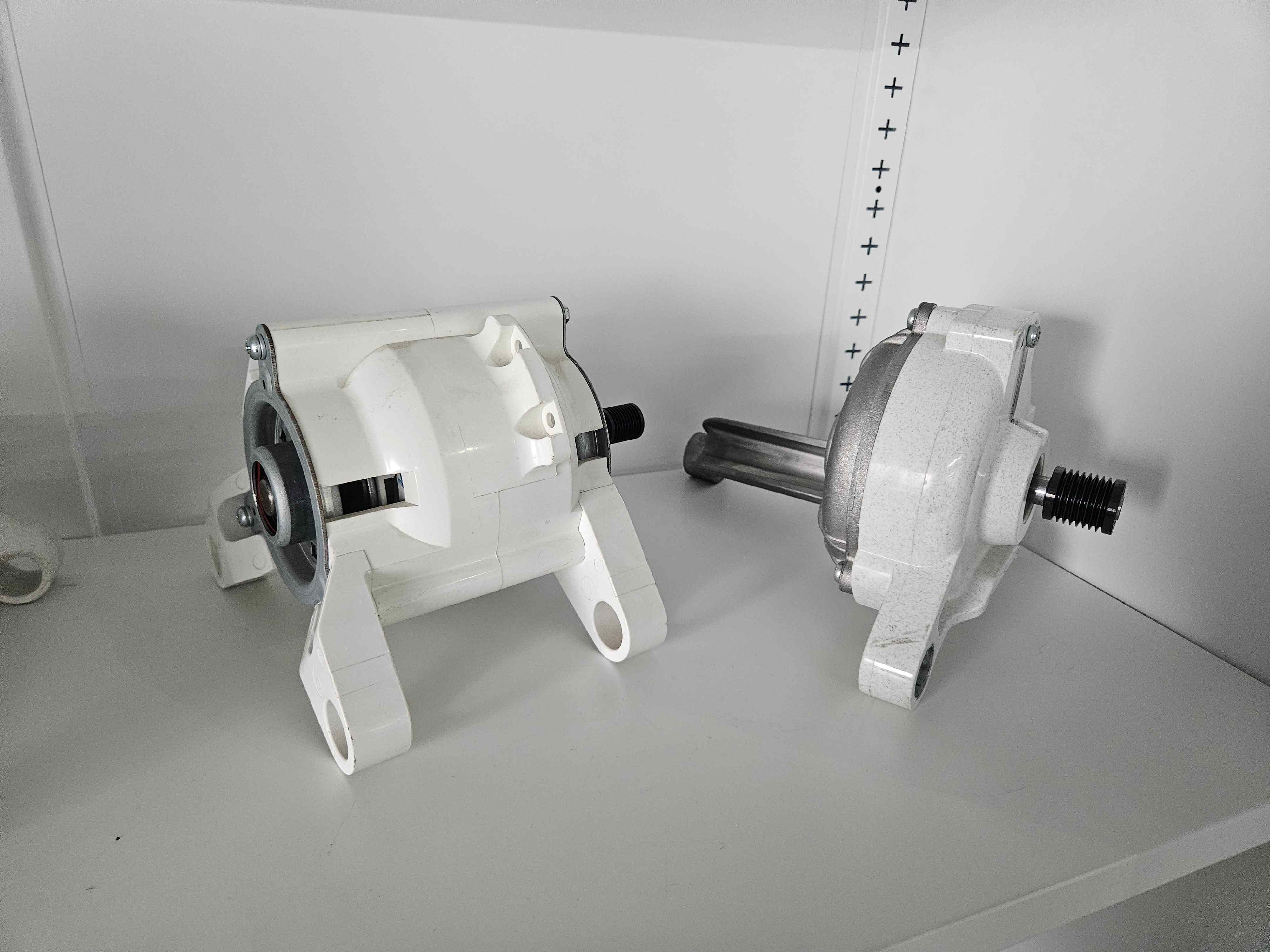

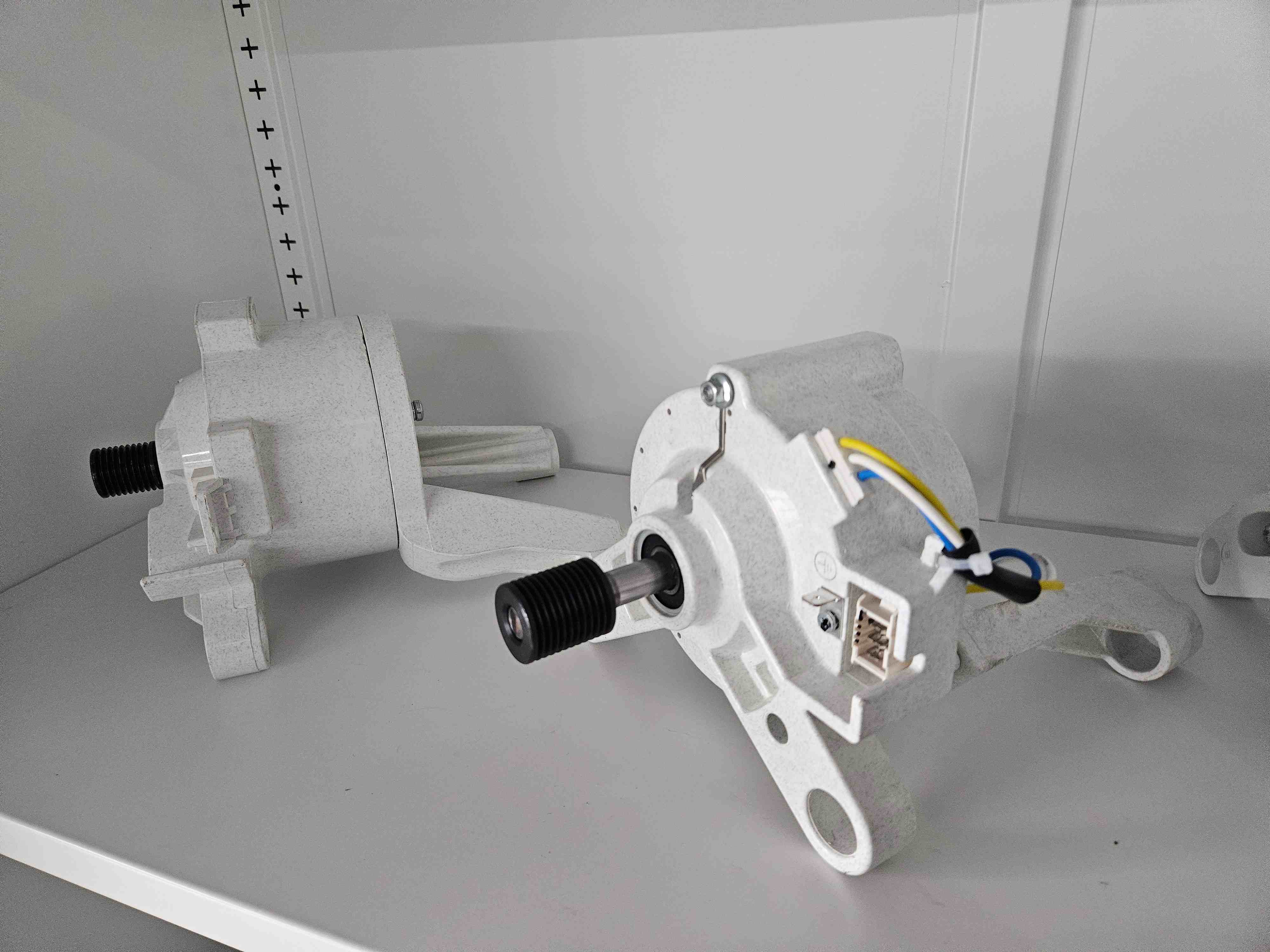

Developed a complete BLDC motor assembly and winding line for a leading home appliance manufacturer producing washing machine motors, air conditioner motors and kitchen hood motor. The client required a solution that could significantly reduce labor dependency while maintaining consistent quality at mass scale.
 |
 |
 |
Challenge
The manual assembly process faced critical bottlenecks:
· High labor costs with inconsistent quality output
· Production downtime due to human error in winding and assembly
· Scrap rates exceeding 3% from misalignment and component damage
· Inability to scale production to meet growing market demand
Our Solution
Delivered an end-to-end automated production line integrating robotics and intelligent pick-and-place systems:
· Automated Winding Stations: High-precision winding cells with closed-loop tension control ensuring ±0.01mm wire placement accuracy
· Robotic Assembly Arms: Multi-axis robots handling stator-rotor assembly, bearing insertion, and end-cap fitting
· Intelligent Vision Systems: Real-time defect detection with 99.7% accuracy for coil alignment and component positioning
· Integrated Testing: Automatic electrical and mechanical testing stations with data logging for traceability
· Material Supply Integration: Direct supply of premium bearings and NdFeB magnets through our strategic partnerships
 |
 |
Results
· Labor reduction: 85% decrease in direct labor, from 12 operators to 1.5 per shift
· Quality improvement: Scrap rate reduced to 0.6%, representing an 80% reduction
· Productivity boost: Line throughput increased by 45%, achieving 120 motors/hour
· ROI: Payback period of 18 months through combined labor savings and quality improvements
Client Testimonial
"The automation solution transformed our production capabilities. The reduction in scrap alone justified the investment, and the consistency in quality has strengthened our market position."
— Operations Manager, Leading Appliance OEM
 |
 |
