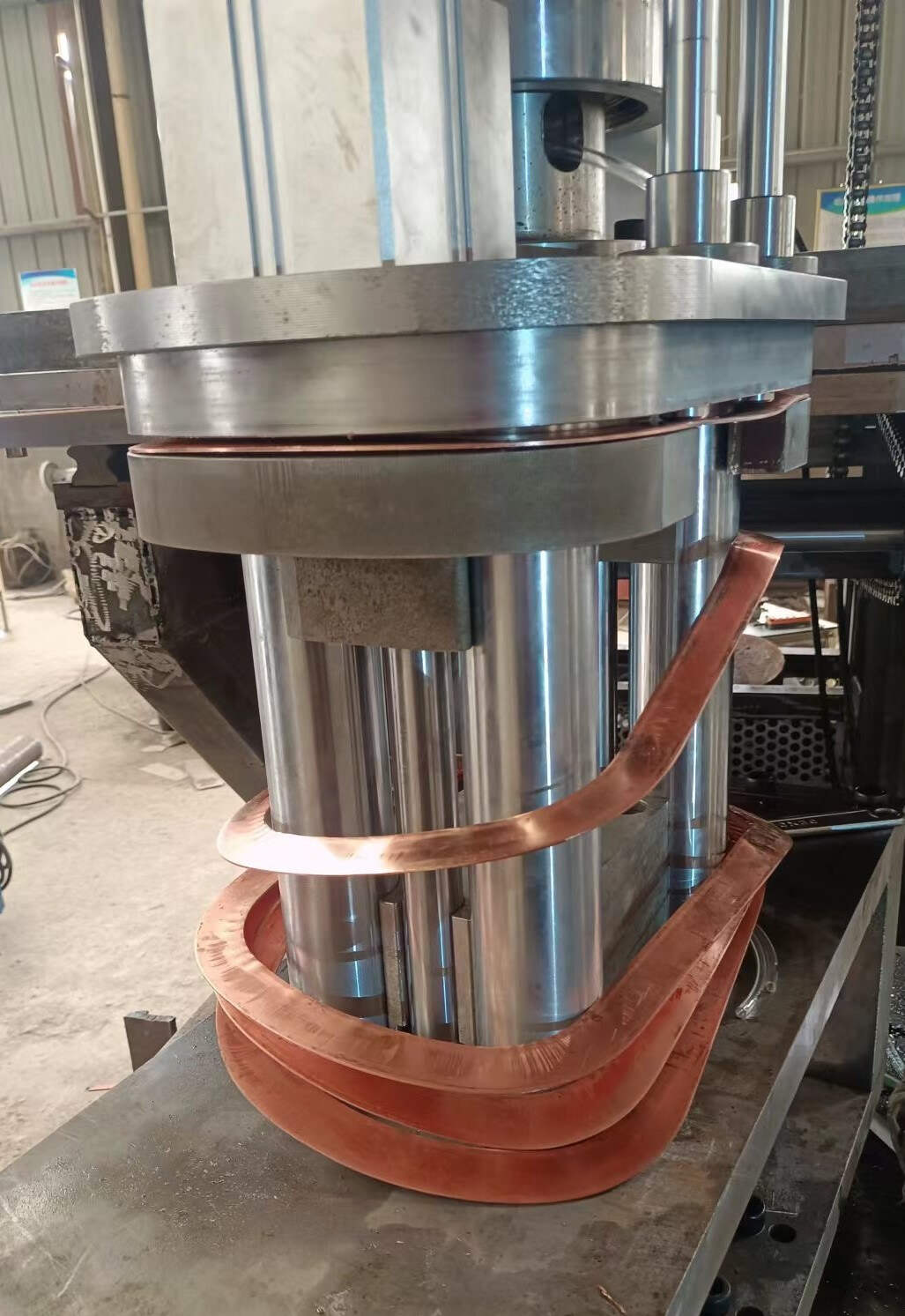

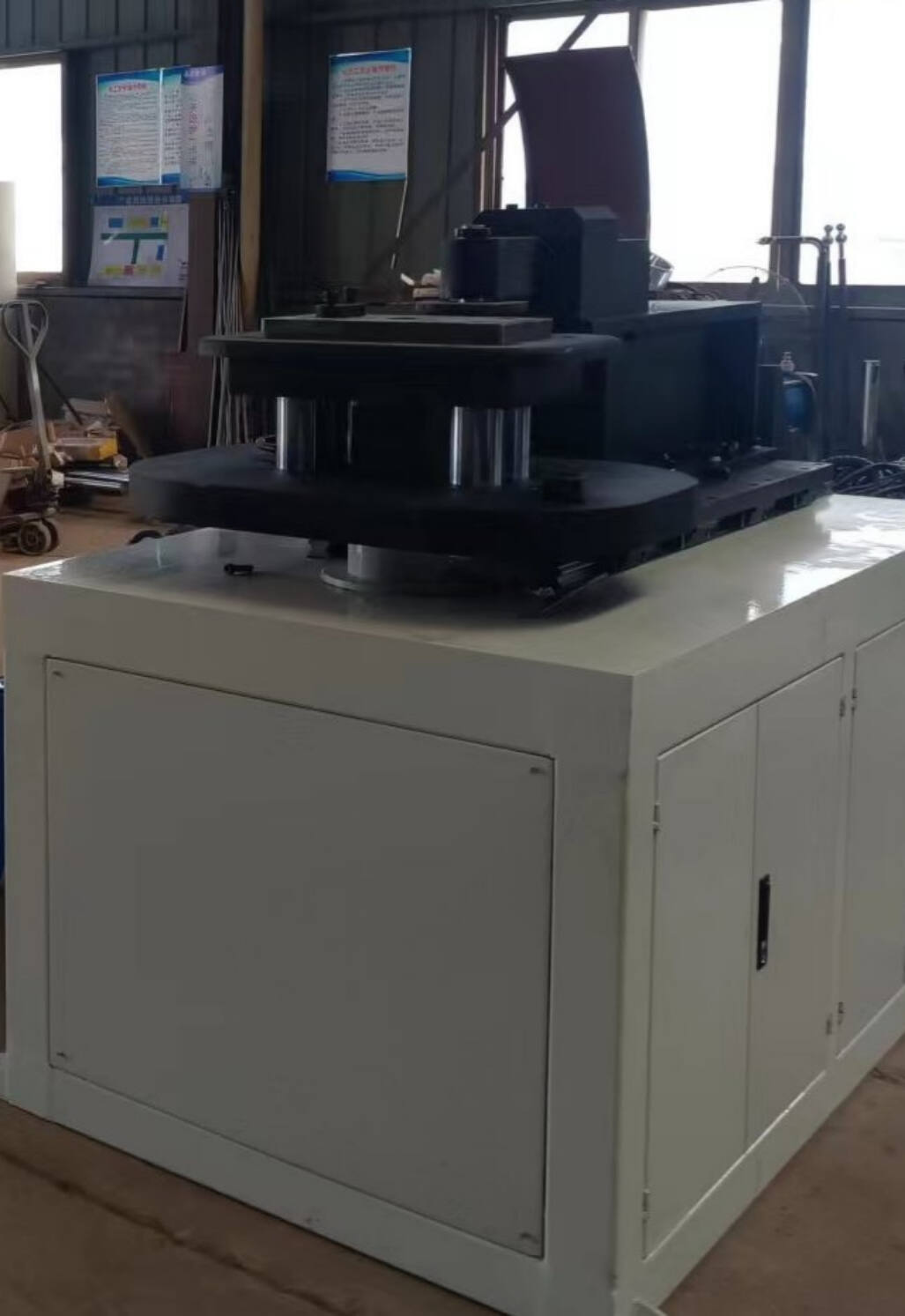

This machine is controlled by a human-machine interface touch screen PLC, and the permanent magnet coil has a lightweight and correct displacement of the ball guide rail during processing and production. It is automatically formed with other winding components. clamping mold is flexible, with high production efficiency and good ergonomics.
Winding machine component parameters:
1. Maximum wire feeding length 600mm (adjustable within 600mm)
2. The maximum speed of wire delivery is 30mm/second (adjustable speed)
3. Speed: 5-30 rpm.
4. Equipped with counting function: with a maximum recorded turn count of 999, automatic parking
5. Stepless adjustment between the ends of the platform mold. E

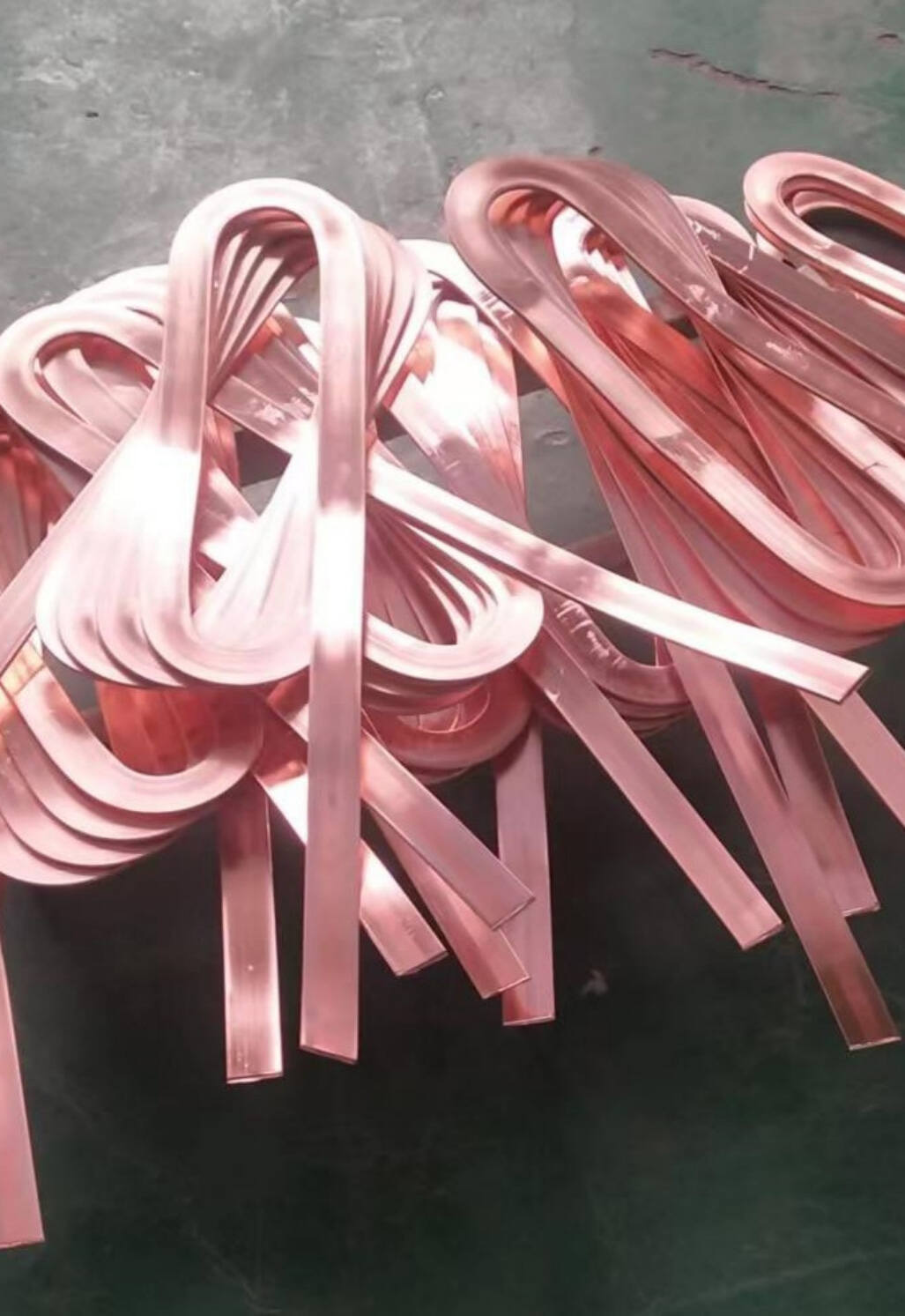

6. Copper bar width range: 20-40mm
7. Copper bar thickness range: 1.2-9mm
8. Mold length: 300-900mm
9. Mold width: 60-400mm
 |
 |
 |
