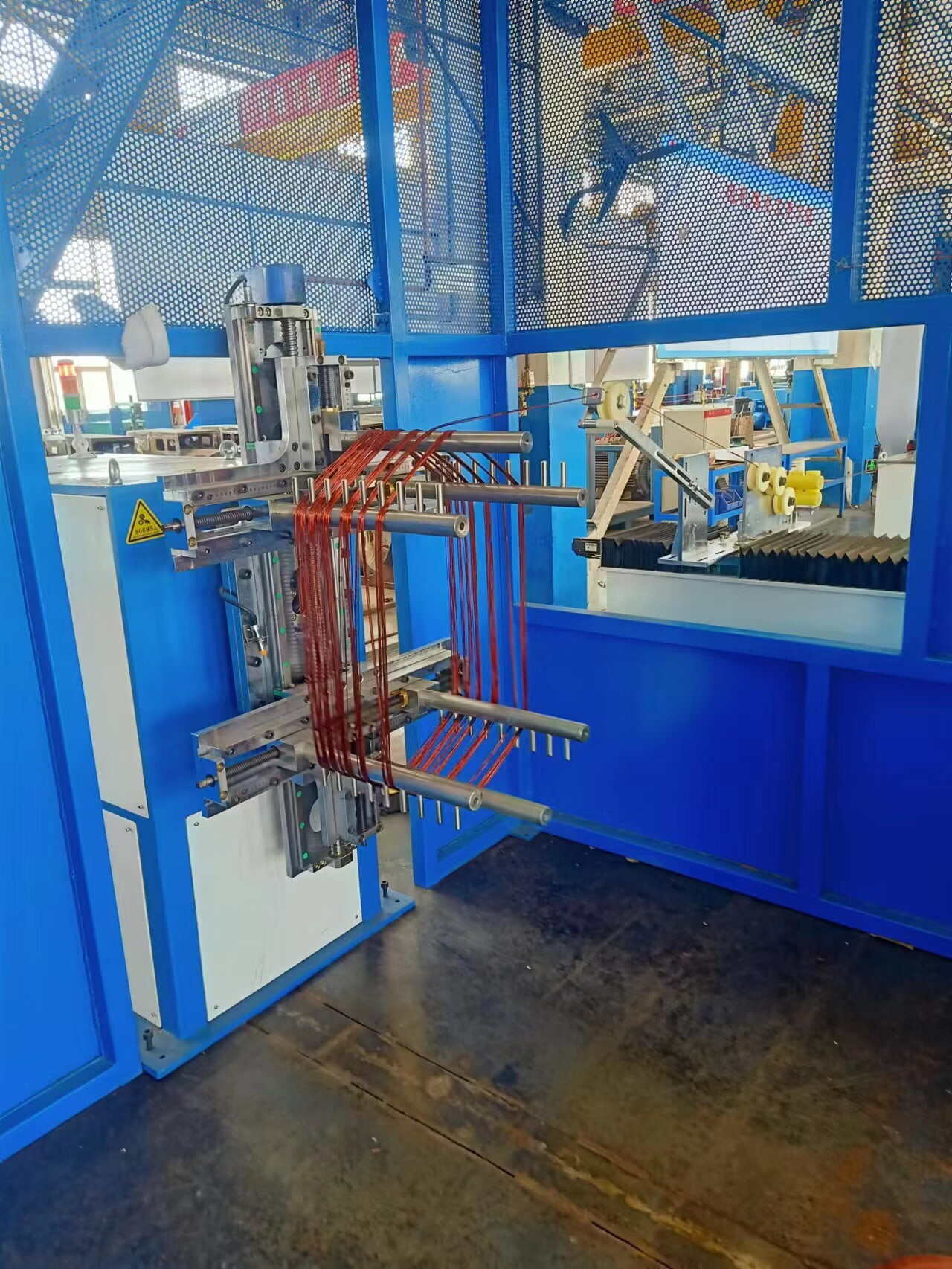

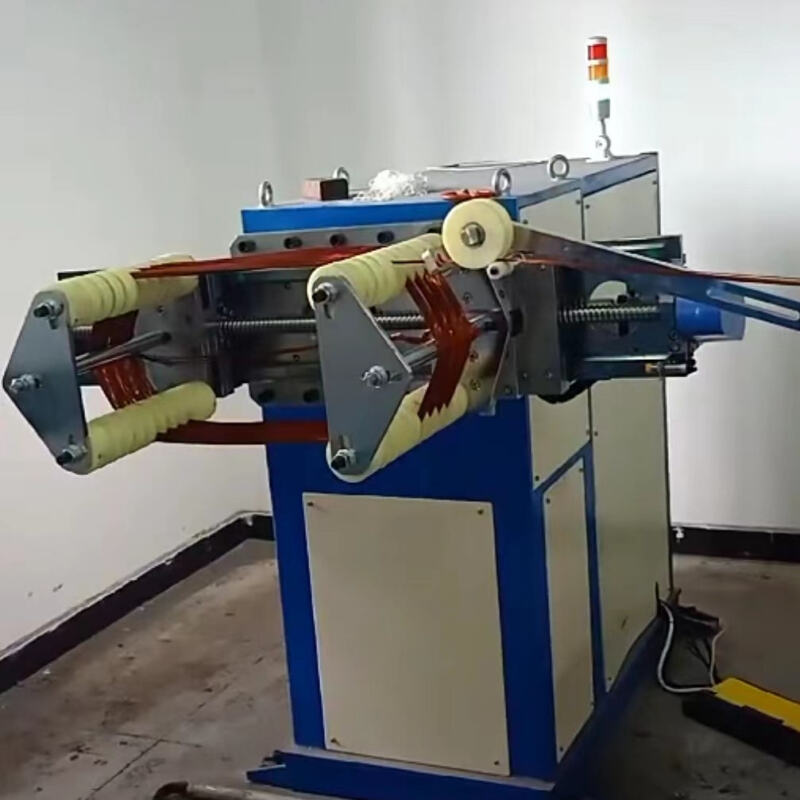

The device has the following major characteristics:
1. Sophisticated design, able to achieve workpiece forming in a short time, with a small footprint;
2. Simple operation, easy maintenance, automated electrical control, only one operator required, saving manpower
3. Using He Fu to adjust the size of the mold, and using two auxiliary tools to achieve the tensioning and closing of the grinding tool
4. The device has an automatic slot skipping and cable laying function, which can accurately jump to the next slot for winding after winding one slot

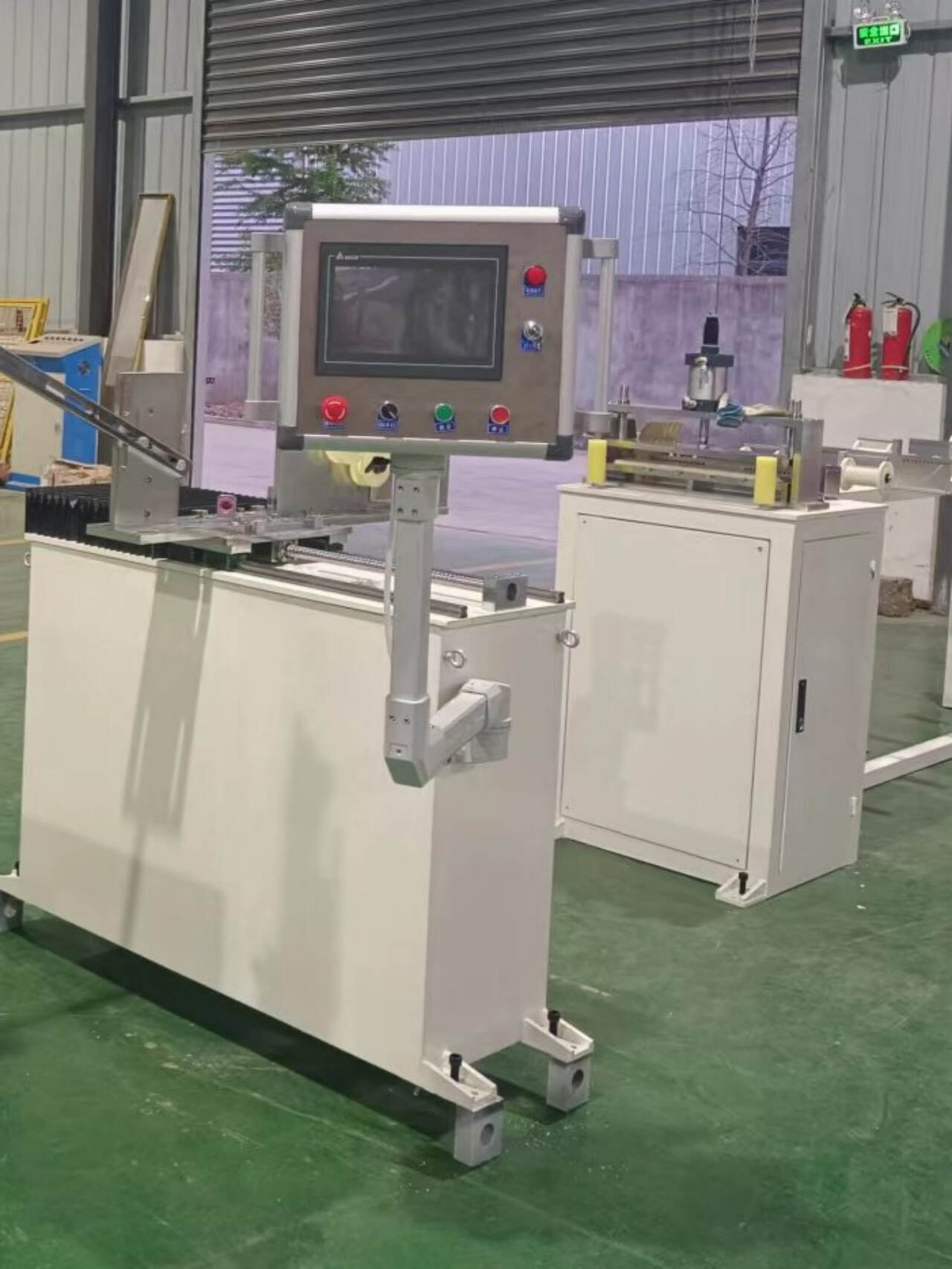

5. The device adopts digital control, and all parameters can be inputted, adjusted, saved, and other parameters of different specifications through the touch screen;
6. Winding using coil adjustable winding device
7. The number of turns winding for the coil to complete the setting program
8. Coil width W, size range 180~600mm
9. The length H of the straight edge of the coil has a size range of 380~900mm
10. The total length size range of the coil is 480~1200mm
11. The number of parallel coils ranges from 1 to 48
12. Number of coil slots 1-9
13. Wire diameter range 0.4~2.5mm
14. Coil end size range R40-R60
 |
 |
