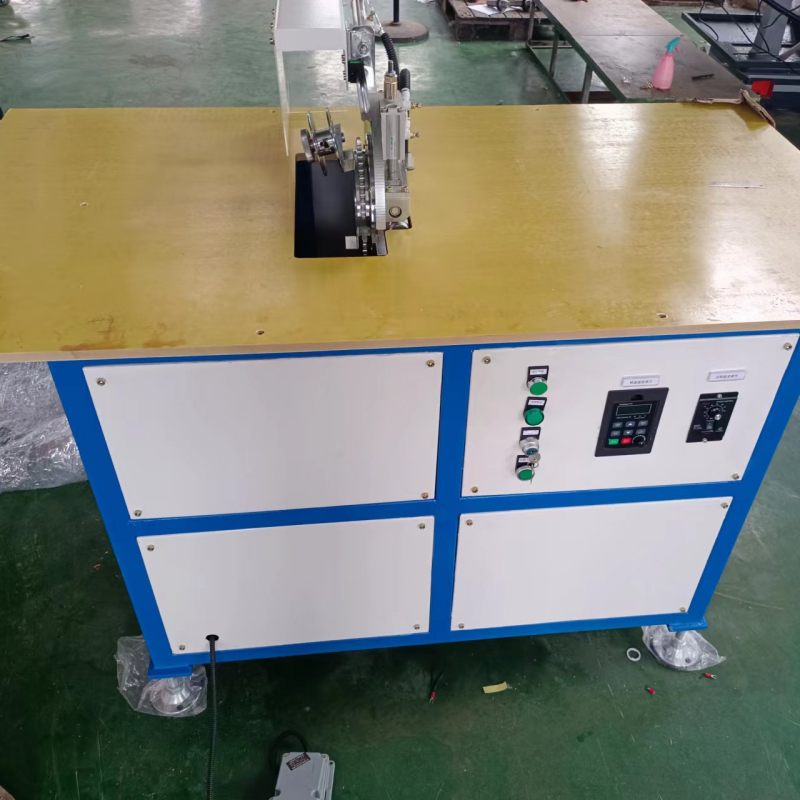

Firstly, manually wind the end of the white cloth tape to a straight position, then place it horizontally on the product bracket, move it to the set range, manually install the insulation tape, and automatically wind the shuttle to wind the subsequent white cloth tape onto the copper bar. When the set value is reached at the end of the end, manually remove the tape reel and move to remove the product.
1. External dimensions of white cloth tape e
1.1. White cloth tape: thickness 0.2-0.5mm
1.2. Bandwidth: 25mme
1.3. Disc size: medium 100 × Middle 39
Requirements for 2-pack leader
2.1. Minimum nose radius R=50mm,
2.2. Belt roughness 1.6um, flatness 0.1mm, perpendicularity 0.5 ° e
2.3. Opening size: 28mm
2.4. Inner disk size: 100mme
2.5. Maximum cross-sectional area: 15 × 60mm2
2.6. Adjustment range of mechanical constant expansion force: 1-4KG
2.7. Wrapping speed: 0-220 rpm.
2.8. The air clamp roller clamps the coil, with a stacking rate of 1/2 or a stacking rate of 1/2, and a minimum opening of 120mm for the coil
2.9. Air pressure: 0.6Mpa
3.0. Linear length: 300-1500mm stepless adjustable e
