Equipment usage and characteristics

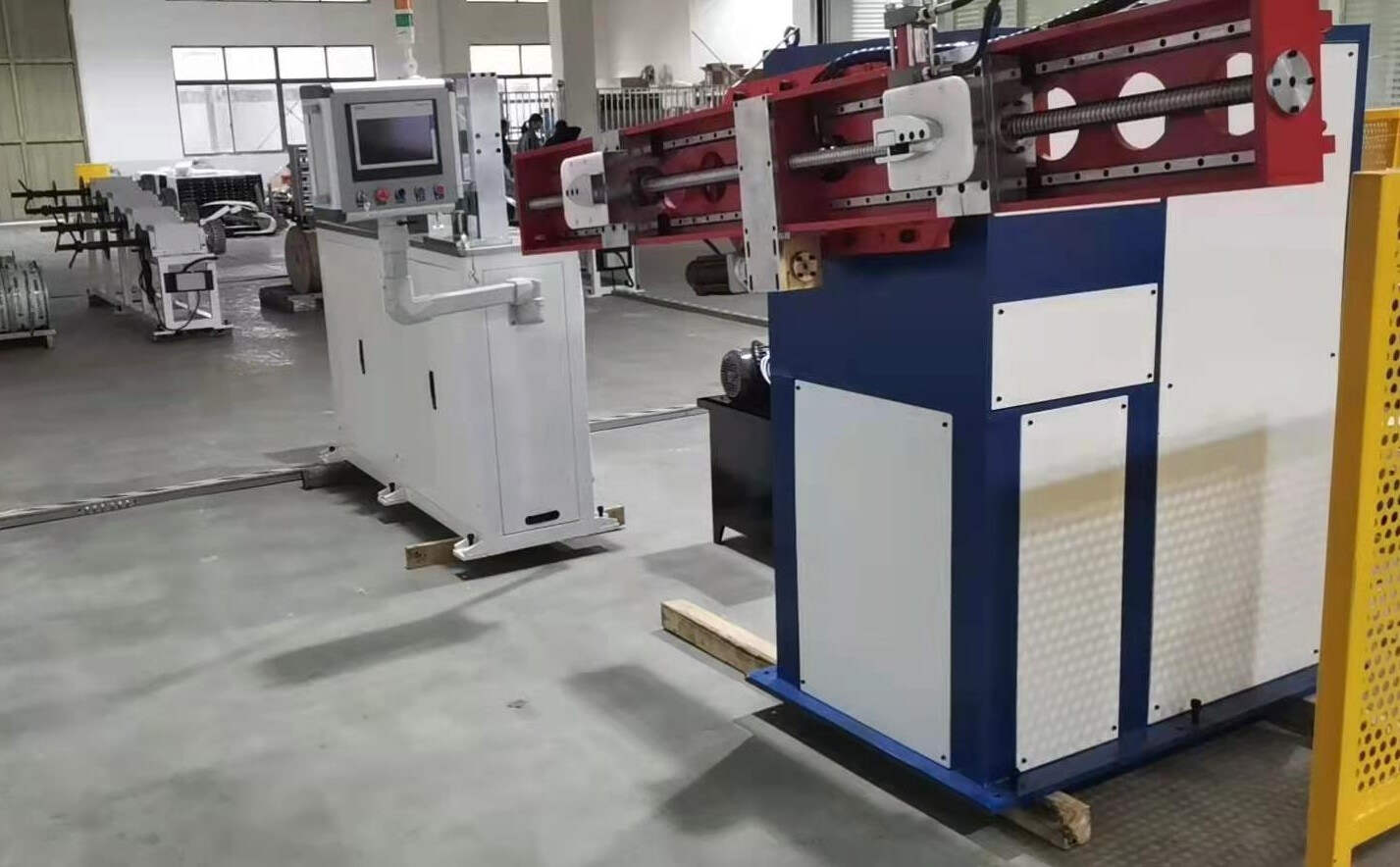

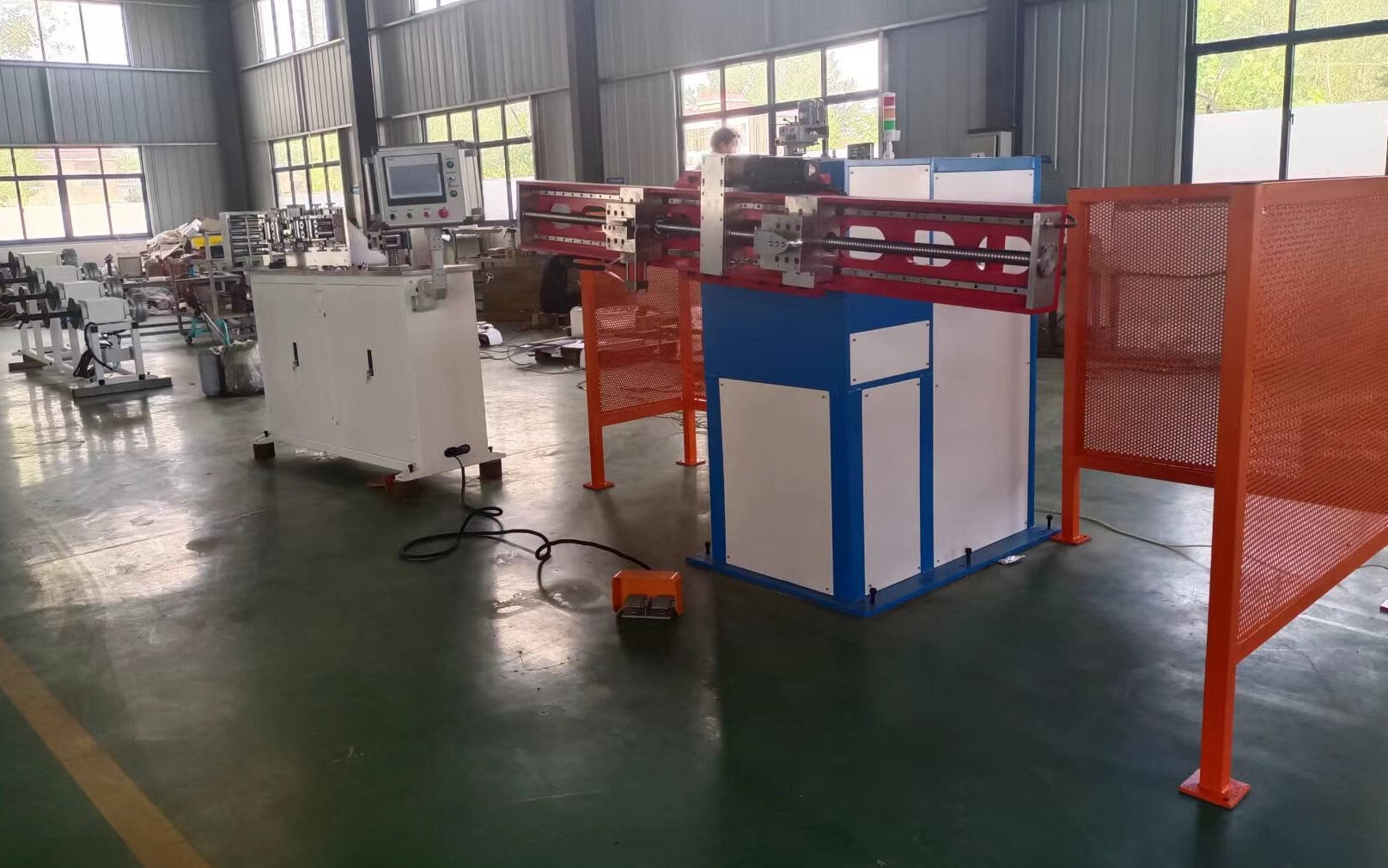

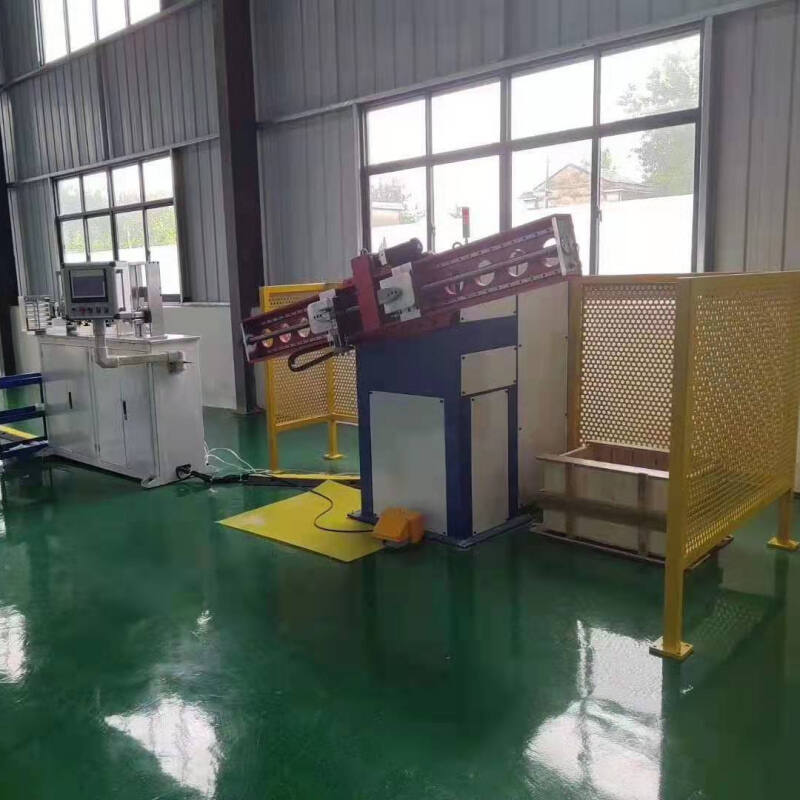

This machine is widely used for winding stator coils of large and medium-sized motors.
This machine has the following characteristics:
1.1. The control system of this machine is equipped with manual operation mode.
1.2. The servo system adopts an integrated modular system.
1.3. The working pressure and stroke of this machine can be adjusted within the specified range according to the process needs, and can complete the fixed range process.
1.4. The workbench screw rod is pushed and pulled, making it easy to load and unload, accurate in positioning, balanced and reliable in pressing.
1.5. Lead length range: 100-600mm
1.6. Single wire width range: 2-12mm
1.7. Single wire thickness range: 1-8mm<
1.8. Total coil length range: 600-4500mm
1.9. Device cross-sectional width A: 10-24mm
 |
 |
