Product features and uses one

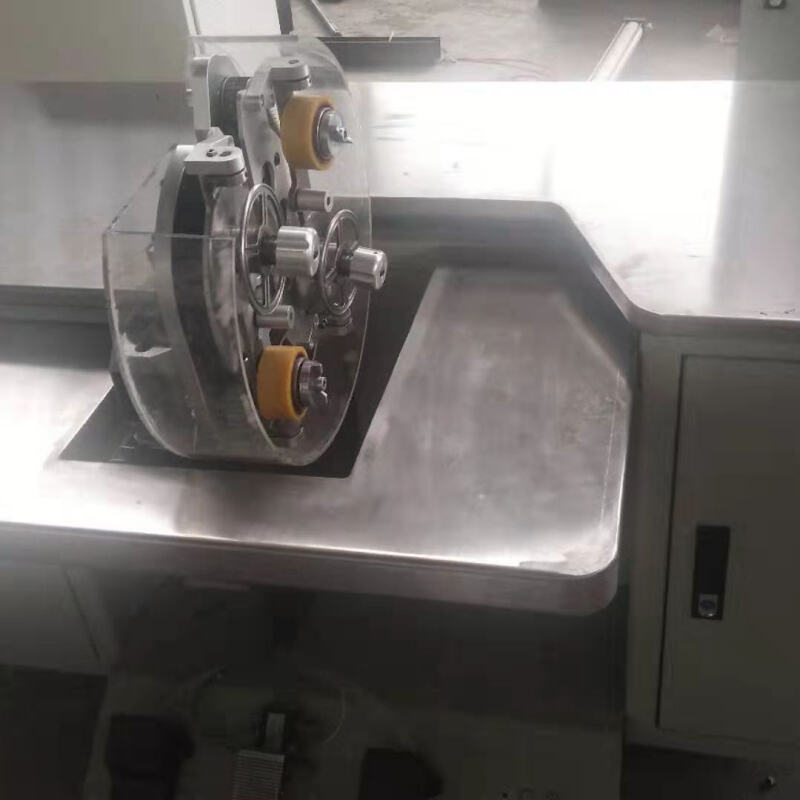

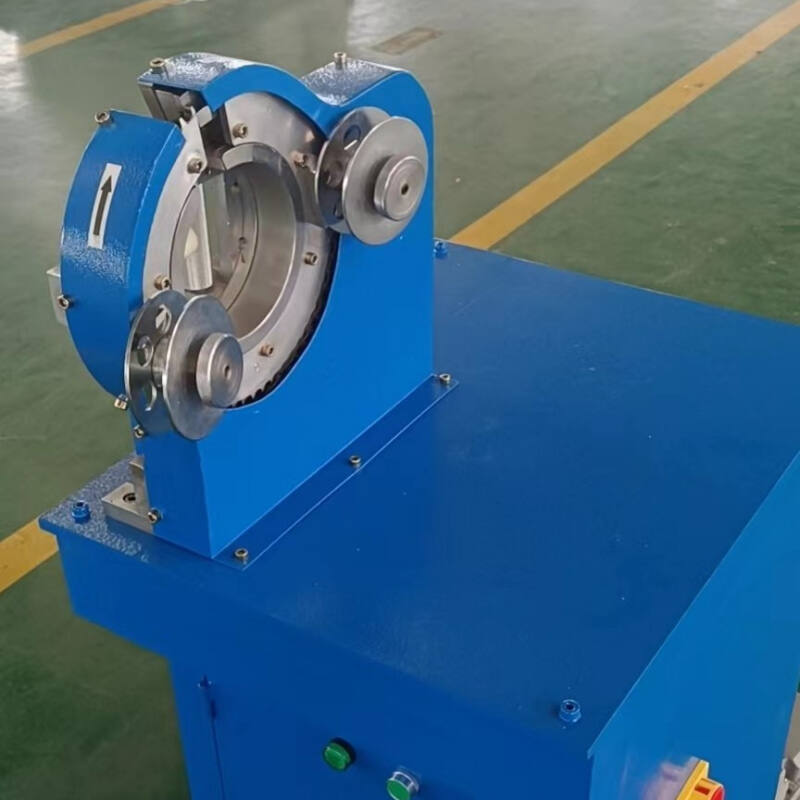

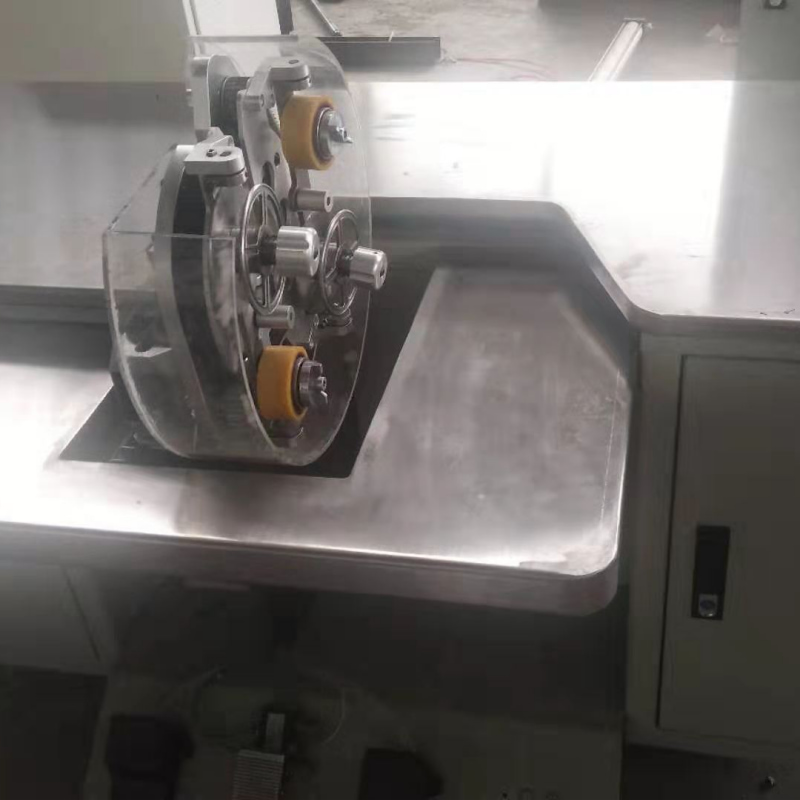

The table type tape wrapping machine is used for automatic wrapping of insulation tape for armature, prismatic coil, generator coil, magnetic pole coil motor stator magnetic field coil. The working process is as follows: first, manually wrap 2-3 coils of fabric tape onto the stator coil, and then horizontally place it into the fabric tape automatic wrapping shuttle; By pressing the switch, the cloth tape automatically wraps around the shuttle and rotates to wrap the subsequent cloth tape around the stator coil until the set number of turns is reached,; Continue to press the reverse switch until the entire stator is wrapped.
1. Applicable types of wrapping tape: mica tape, insulation tape, transparent tape, aluminum foil, tension tape, paper tape, etc
2. Straight length: 300-1500mm stepless adjustable.
3. Wrapping speed: maximum no-load speed of 300 rpm, maximum load speed of 220 rpm
4. Mechanical constant expansion force adjustment range: 1-6KG
5. Pitch adjustment: motor adjustment (can be adjusted according to the size of the line)
6. Applicable reel size: reel diameter: Φ 40- Φ 120mme
7. Wire reel width: 30-75mm Wire reel aperture: 30-80mme
8. Maximum section: 15 × 60mm2, mica tape: medium 100 × Middle 39e
9. The length, height, and angle of the tape wrapping machine can be adjusted. ←
