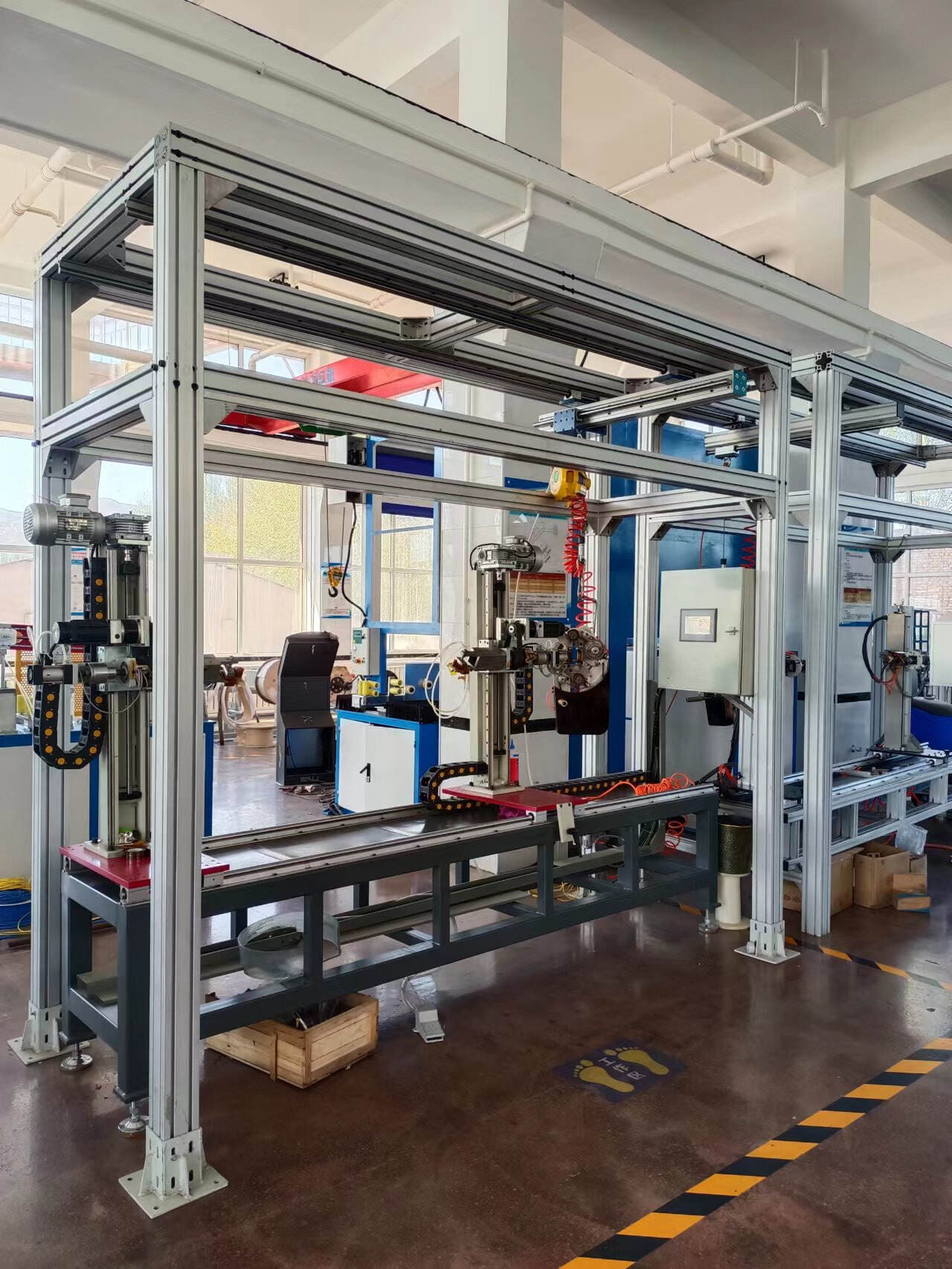

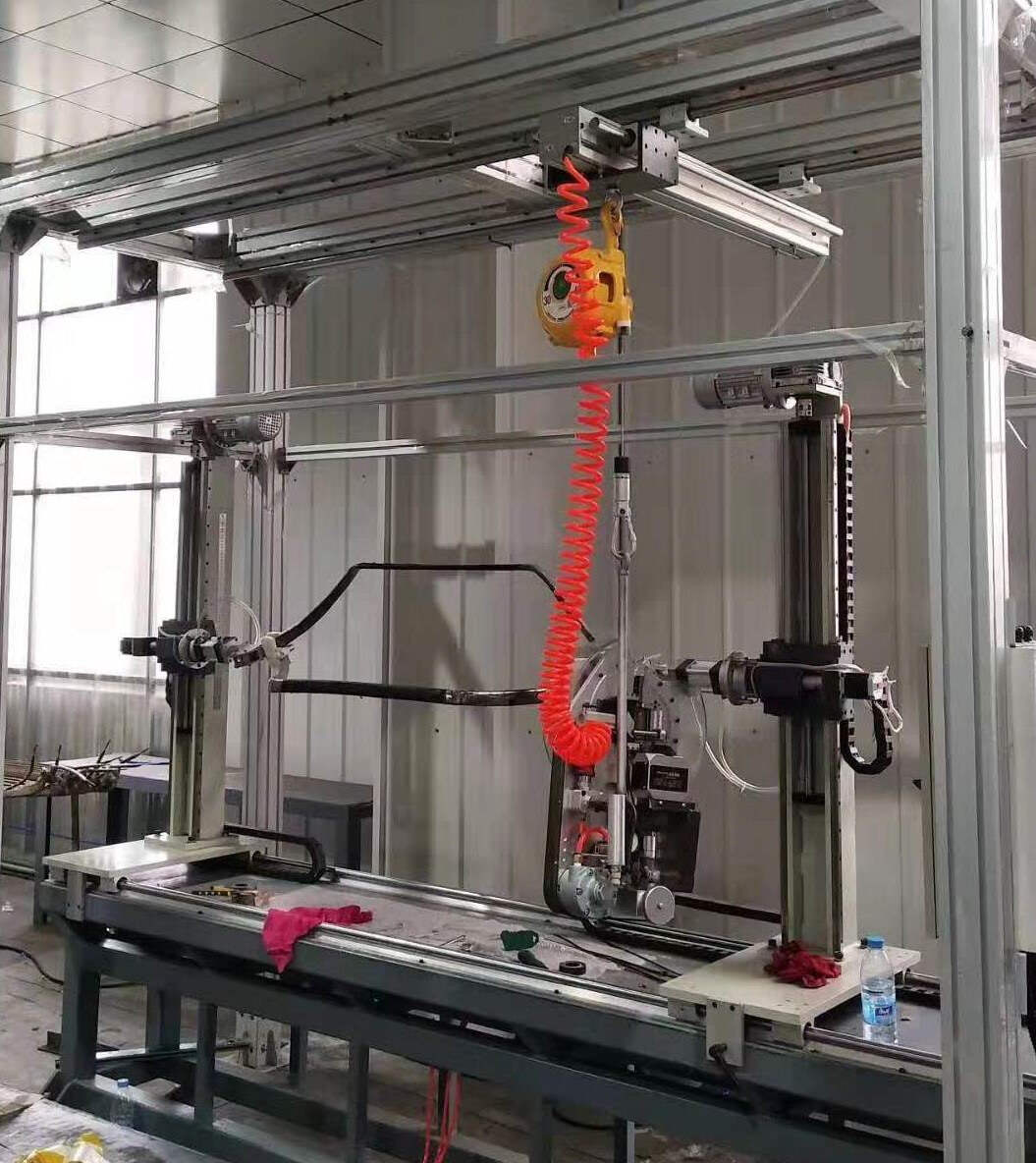

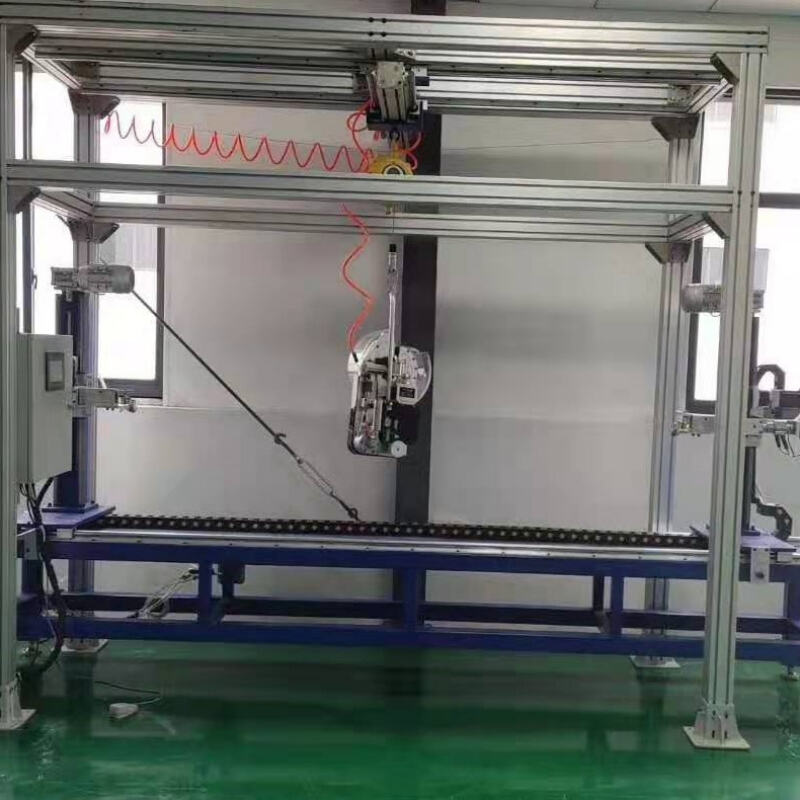

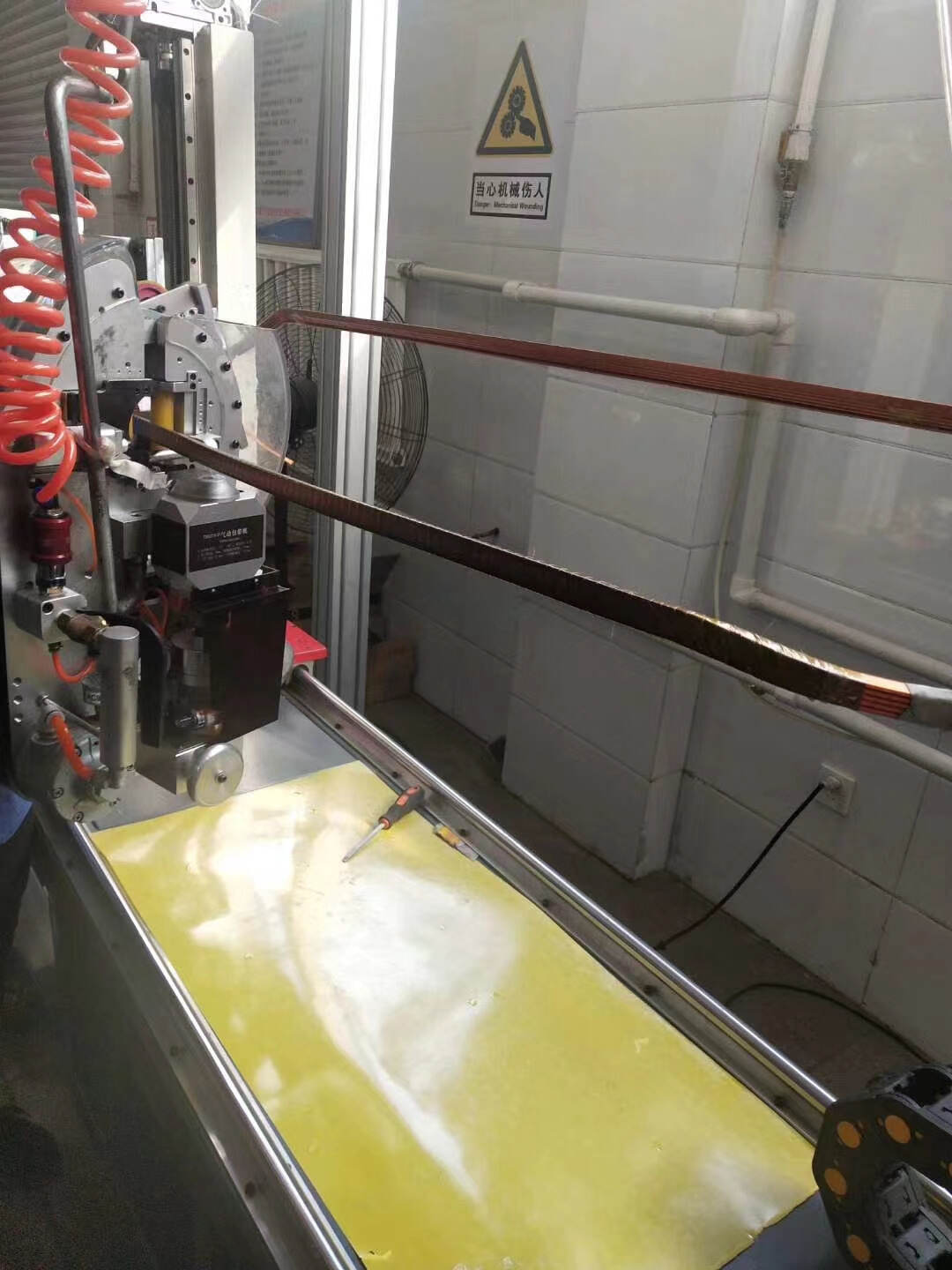

This model of tape wrapping machine is actually used for automatic wrapping of insulation tape for motor stator magnetic field coils. The workflow is as follows: first, manually pre wrap the tape for 2-3 turns on the stator coil, and then horizontally place it into the tape automatic wrapping shuttle; Step on the switch with your foot, and the cloth tape will automatically wrap around the shuttle. The subsequent cloth tape will be wrapped around the stator coil when the set number of turns is reached,; Continue to press the reverse switch until the entire stator is wrapped. This machine uses a motor to drive the cloth winding shuttle to rotate, and the speed can be adjusted by the governor to use medium adhesive mica tape and low adhesive mica tape.
1. Mica tape: medium 100 × Middle 39
2. Maximum section: 15 × 60mm2, e
3. Straight length: 400-2000mm stepless adjustable. E
4. Mechanical constant expansion force adjustment range: 1-6KG
5. The air clamp roller clamps the coil, with a stacking rate and a minimum opening of 210mm for the coil.
6. Wrapping speed: 0-220 rpm (reasonable speed for less tape is 100-150 rpm), decrease by 1/2 at turns.
The maximum bending angle is 70 °, and the maximum single head projection length of the elbow part is 220mm. Can cover both small and large bends. ←
7. The length, height, and angle of the tape wrapping machine can be adjusted.
8. This device is suitable for mass production of a single specification variety. Frequent and small batch specification adjustments can reduce equipment efficiency. ←
9. Air pressure: 0.6Mpa, ambient temperature: -5-40 degrees. Relative humidity: 0-85%. ←
10. The coil fixing ring is fixed diagonally by the clamping cylinder
11. Height adjustment: both ends of the deceleration motor lift
12. Adjustment of coil wrapping angle: the servo motors at both ends achieve uniform operation
 |
 |
