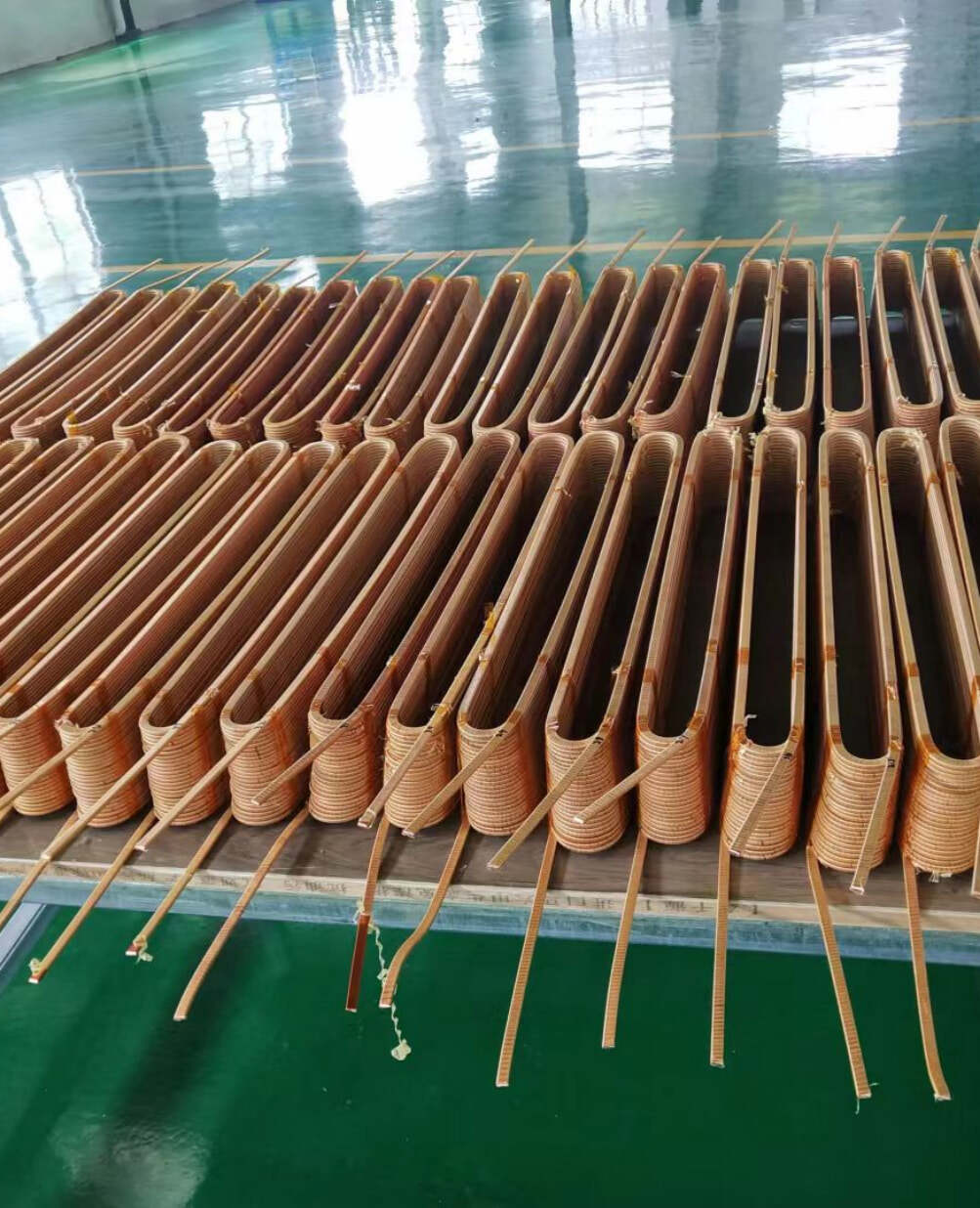

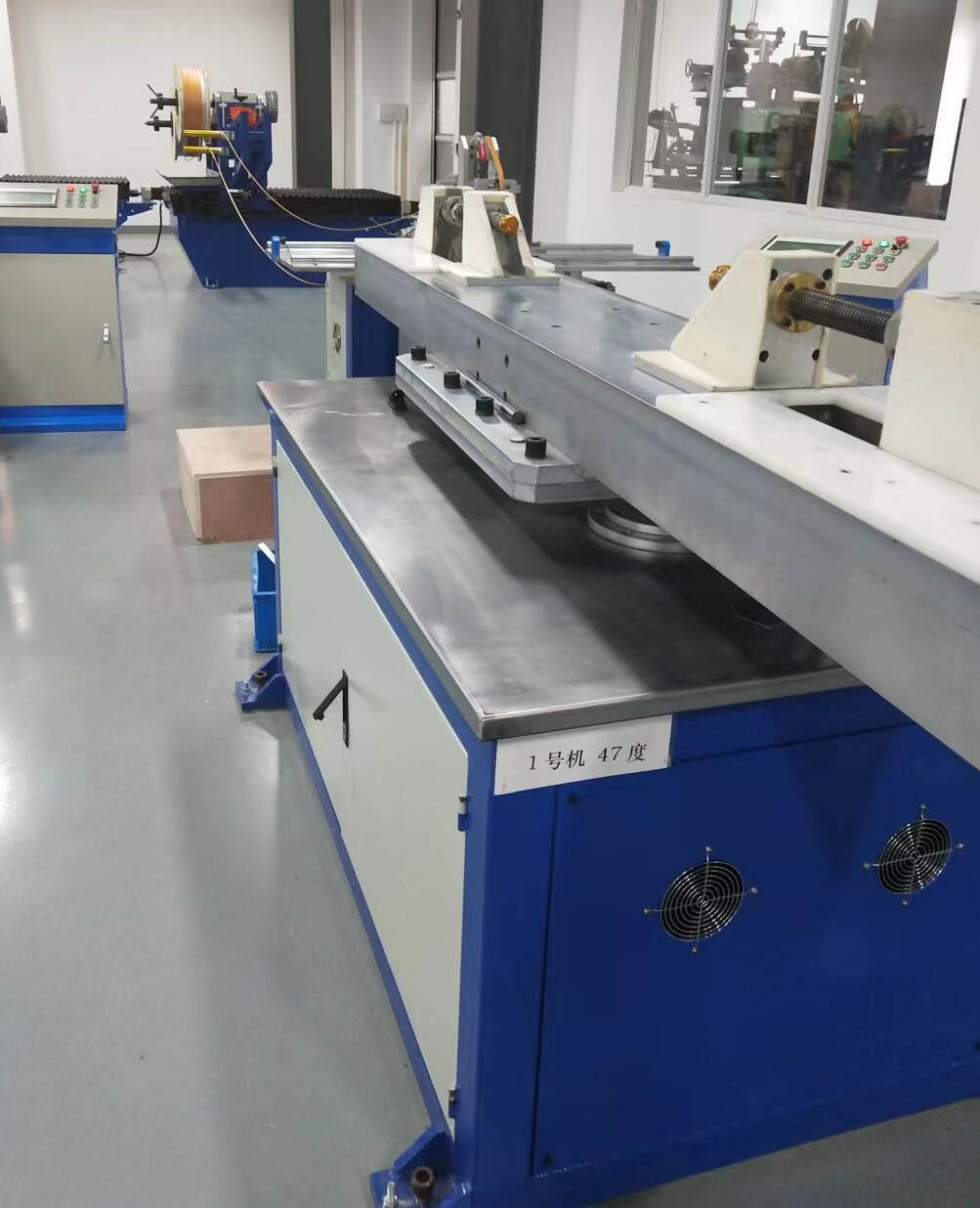

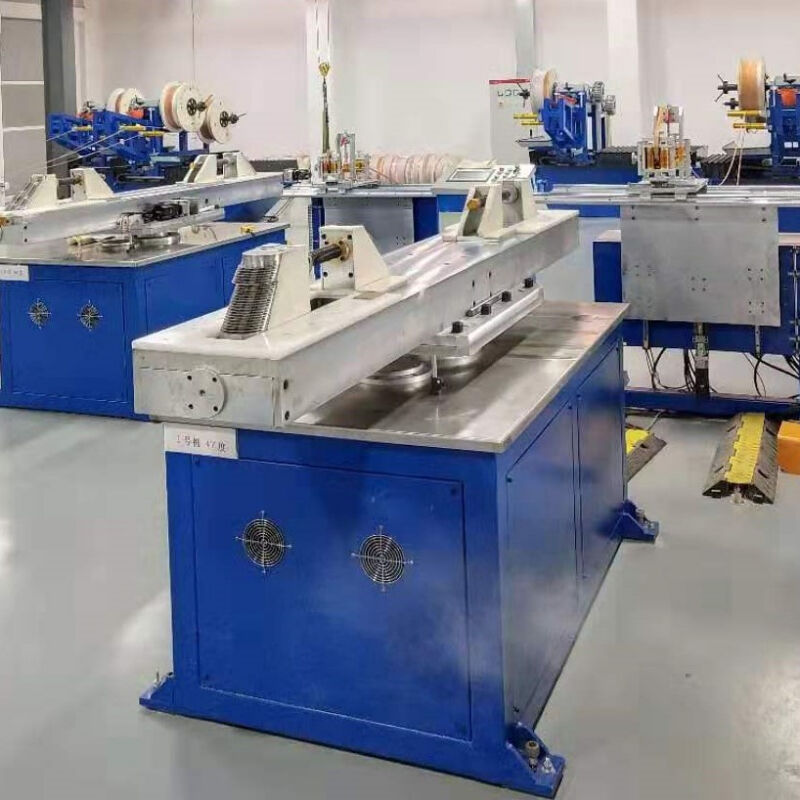

This machine is controlled by a human-machine interface touch screen PLC, and the permanent magnet coil has a lightweight and correct displacement of the ball guide rail during processing and production. It is automatically formed with other winding components. Zhanghe mold is flexible, with high production efficiency and good ergonomics.
Winding machine component parameters:
1. Maximum wire feeding length 600mm (adjustable within 600mm)
2. The maximum speed of wire delivery is 30mm/second (adjustable speed)
3. Speed: 5-30 rpm. E
4. Equipped with counting function; The maximum recorded number of turns is 999, automatic parking
5. Ends are infinitely adjustable.
6. PLC control and magnetic particle damper achieve stepless adjustment of coil tension and speed. E
7. Centre-to-centre distance height: 1200mm. E
8. The maximum pulling force that the winding machine can pull is 500kg, with a torque of (10 revolutions per minute) 9000Nm. The main shaft has a brake, ensuring accurate positioning.
 |
 |
