Vacuum Impregnation Tank For Motor

Overview
Recommended Products

Product Features and Uses

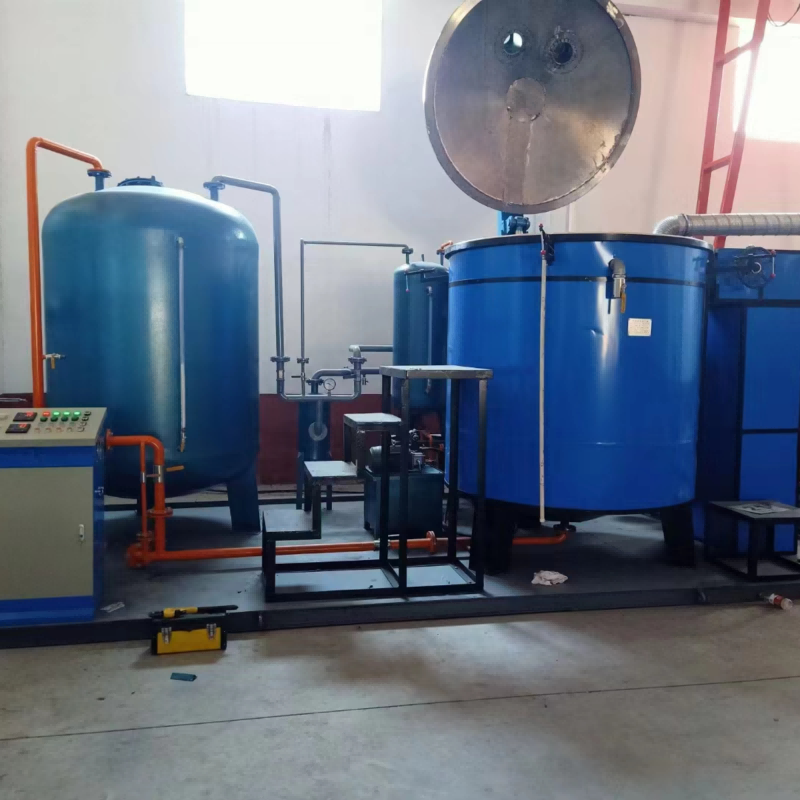

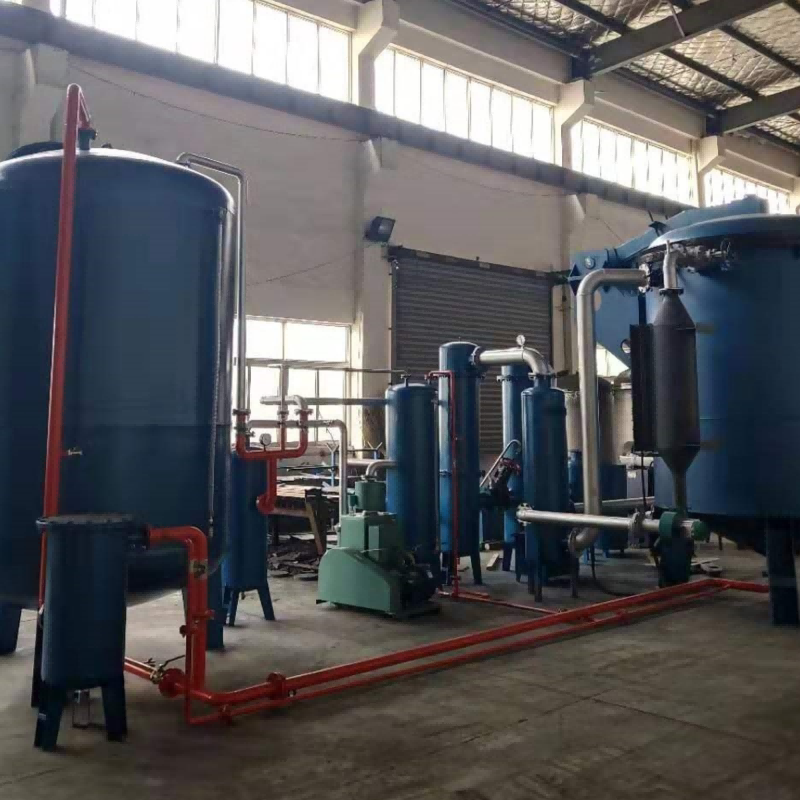

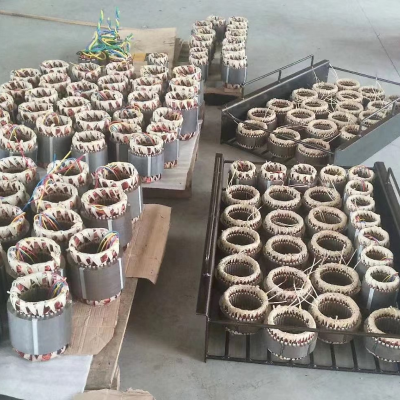

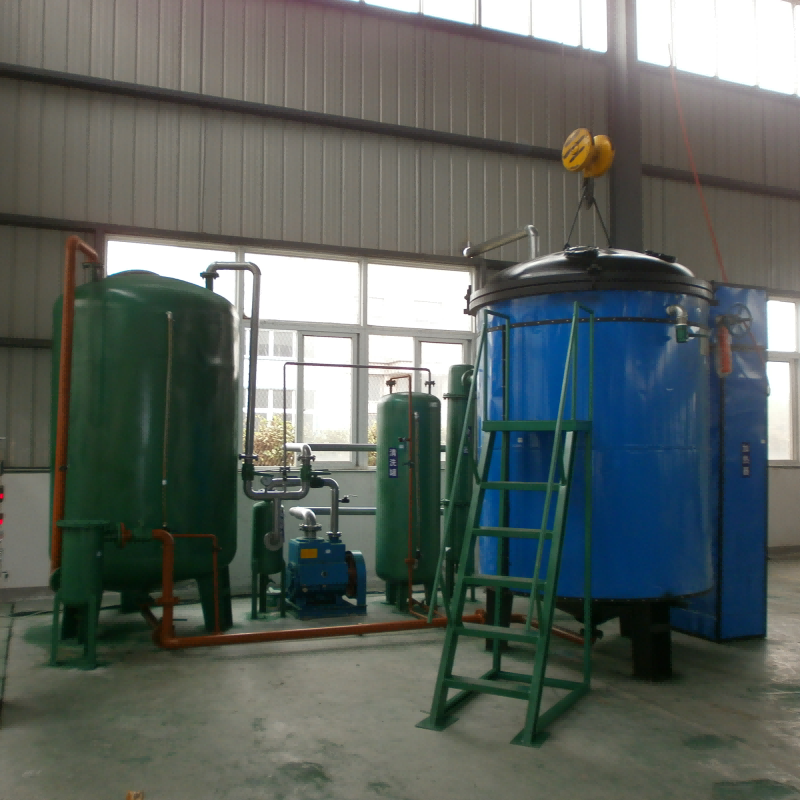

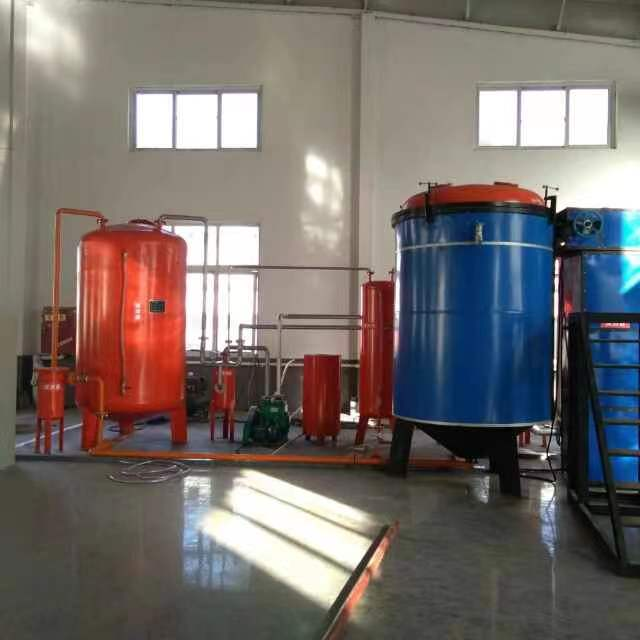

The XJH series vacuum impregnation and drying machine adopts a hot air flow vacuum hot air flow composite drying process, which enables the motor coil to continuously complete impregnation and drying treatment in the same sealed container. It has the advantages of advanced design, reasonable process, compact structure, convenient operation, safety and reliability, good sealing, and reduced labor intensity. This series of products are widely used in motors, electrical appliances, special motors, water pump motors, magneto motors, etc The vacuum insulation treatment of coils in industries such as transformers is an insulation treatment equipment for improving product quality, saving costs, and enhancing competitiveness in the motor, transformer, and iron core industries. It is also a new type of energy-saving and environmental protection equipment

Technical parameters

Basic parameter	Effective diameter of immersion tank	Nominal volume of paint immersion tank	Vessel design pressure MPa	Container working pressure MPa	Temperature adjustment range C of paint immersion drying cylinder	Equipment power	Floor area
Specification and model	㎜	M³				KW	Width and length
XJH -700	700	0.44	-0.1	-0.095	180	9	1800×3400㎜
XJH-900	900	0.87	-0.1	-0.095	180	12	2100×3400㎜
XJH-1000	1000	1.29	-0.1	-0.095	180	12	2100×3400㎜
XJH-1200	1200	1.88	-0.1	-0.095	180	15	2200×4500㎜
XJH-1400	1400	3.45	-0.1	-0.095	180	18	2400×4800㎜
XJH-1600	1600	4.47	-0.1	-0.095	180	22.5	3200×5400㎜
XJH-1800	1800	6.75	-0.1	-0.095	180	27	3800×6900㎜
XJH-2000	2000	8.98	-0.1	-0.095	180	54	4500×7800㎜
XJH-2500	2500	16.70	-0.1	-0.095	180	84	4900×8500㎜
XJH-2800	2800	22.37	-0.1	-0.095	180	108	5800×9400㎜
XJH-3000	3000	24.79	-0.1	-0.095	180	108	660011400㎜
XJH-5000	5000	49.86	-0.1	-0.095	180	184	11800×16800㎜
