Variable Pressure Vacuum Drying Equipment

Variable Pressure Vacuum Drying Equipment

Overview
Recommended Products

Product Features and Uses

The variable pressure vacuum drying equipment heats the product by using the water vapor evaporated from the dried product in the vacuum drying tank as the heat transfer medium to exchange heat between the heater and the dried product. This heating method is similar to kerosene gas phase drying heating. The heating uniformity is very good, the heating efficiency is high and stable.

XHL-2500 variable pressure vacuum drying equipment

XHL-3000 variable pressure vacuum drying equipment

XHL-2800 vacuum drying equipment

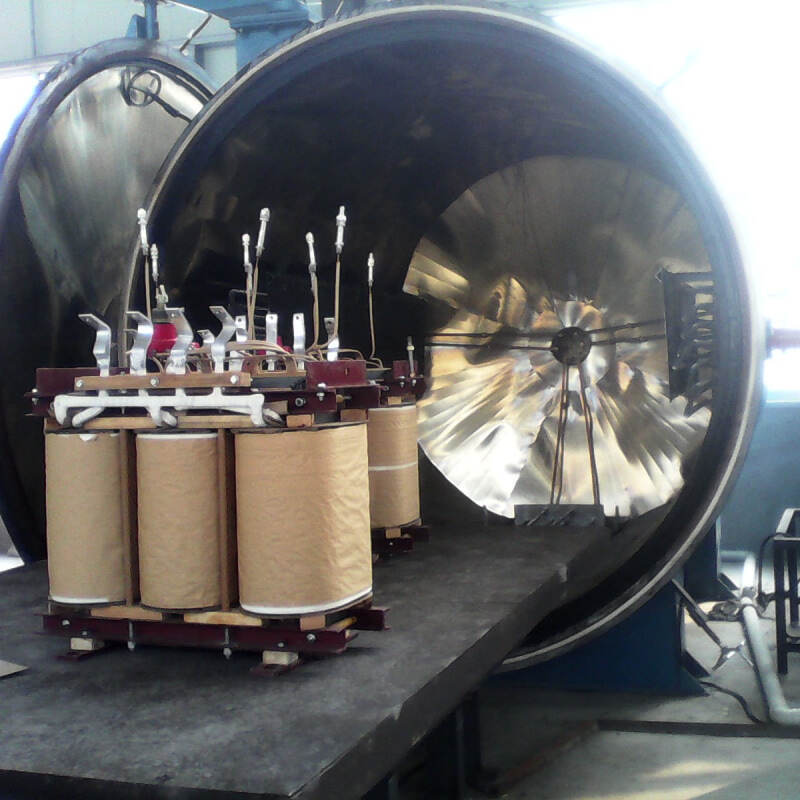

·Mainly used for drying the body of 110KV and below power transformers. Fully automatic computer program controlled variable voltage vacuum drying system;

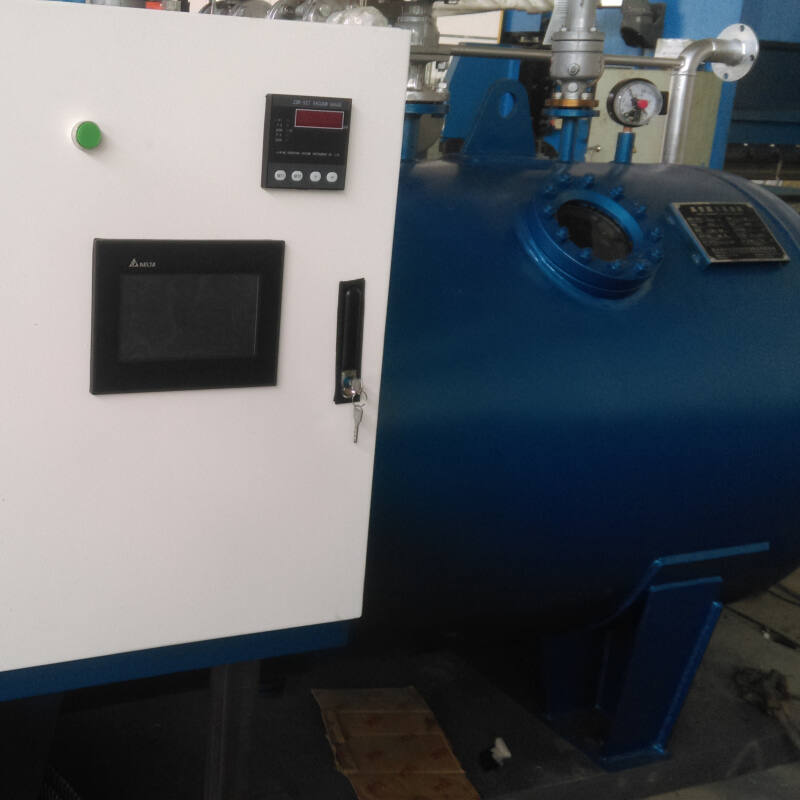

·Composed of a rectangular (circular) vacuum tank steam (thermal oil electric heating) system, which is controlled by the vacuum instrument of the pressure regulating valve of the Roots pump in the front stage pump of the exhaust separator and the intermediate condenser; one

The product treatment meets the process standards and its performance is reliable;

Technical parameters

Specifications Model:	Studio MM (length * width * height)	Working temperature	Power supply voltage	Power frequency	Heating power	Temperature Uniform Degree x	Pa Container operation Vacuum Pa
OXHL	180020002000	200	380V	50HZ	36KW	±2.5	40-5000
OXHL	200025002000	200	380V	50HZ	48KW	±2.5	40-5000
OXHL	260025002400	200	380V	50HZ	45KW	±2.5	40-5000
OXHL	280025002500	200	380V	50HZ	54KW	±2.5	40-5000
OXHL	300028002200	200	380V	50HZ	62KW	±2.5	40-5000
OXHL	320030002500	200	380V	50HZ	72KW	±2.5	40-5000
OXHL	350032002500	200	380V	50HZ	84KW	±2.5	40-5000
OXHL	350032003000	200	380V	50HZ	90KW	±2.5	40-5000
OXHL	360032003500	200	380V	50HZ	108KW	±2.5	40-5000
OXHL	380025002500	200	380V	50HZ	112KW	±2.5	40-5000
OXHL	380030003500	200	380V	50HZ	120KW	±2.5	40-5000
OXHL	450040003500	200	380V	50HZ	128KW	±2.5	40-5000
OXHL	520030003000	200	380V	50HZ	136KW	±2.5	40-5000
