Complete Transformer Corrugated Fin Tank Production Line With Stable Seam Welding Function for Oil Immersed Transformer
- Overview
- Recommended Products
- the main transmission adopts servo mode, and the forming and clamping parts adopt hydraulic cylinder with regulating valve to ensure accurate positioning of each workstation.
- the hydraulic station is equipped with double pump system, matched with high-precision forming mould. embossing quantity, fin height and fin pitch can be adjusted flexibly, supporting production of corrugated walls with or without embossments.
- reasonable structure: adjustable forming specifications, high degree of automation, simple and convenient operation, reliable safety performance, easy maintenance, stable continuous operation and high production efficiency.
- applicable material width range: 300mm-1250mm
- fin height range: 50mm to 400mm
- minimum fin pitch: ≥45 mm
- processing material thickness range: 1.2mm-1.5mm
- gap distance options: 4mm / 6mm
- corrugated front section distance: ≥30mm
- corrugated rear section distance: ≥30mm
- forming speed: 3-4 sheets per minute
- power supply: 380v three phases
- total installed power: 37kw
- total machine weight: 13000kg
Equipment usage and characteristics

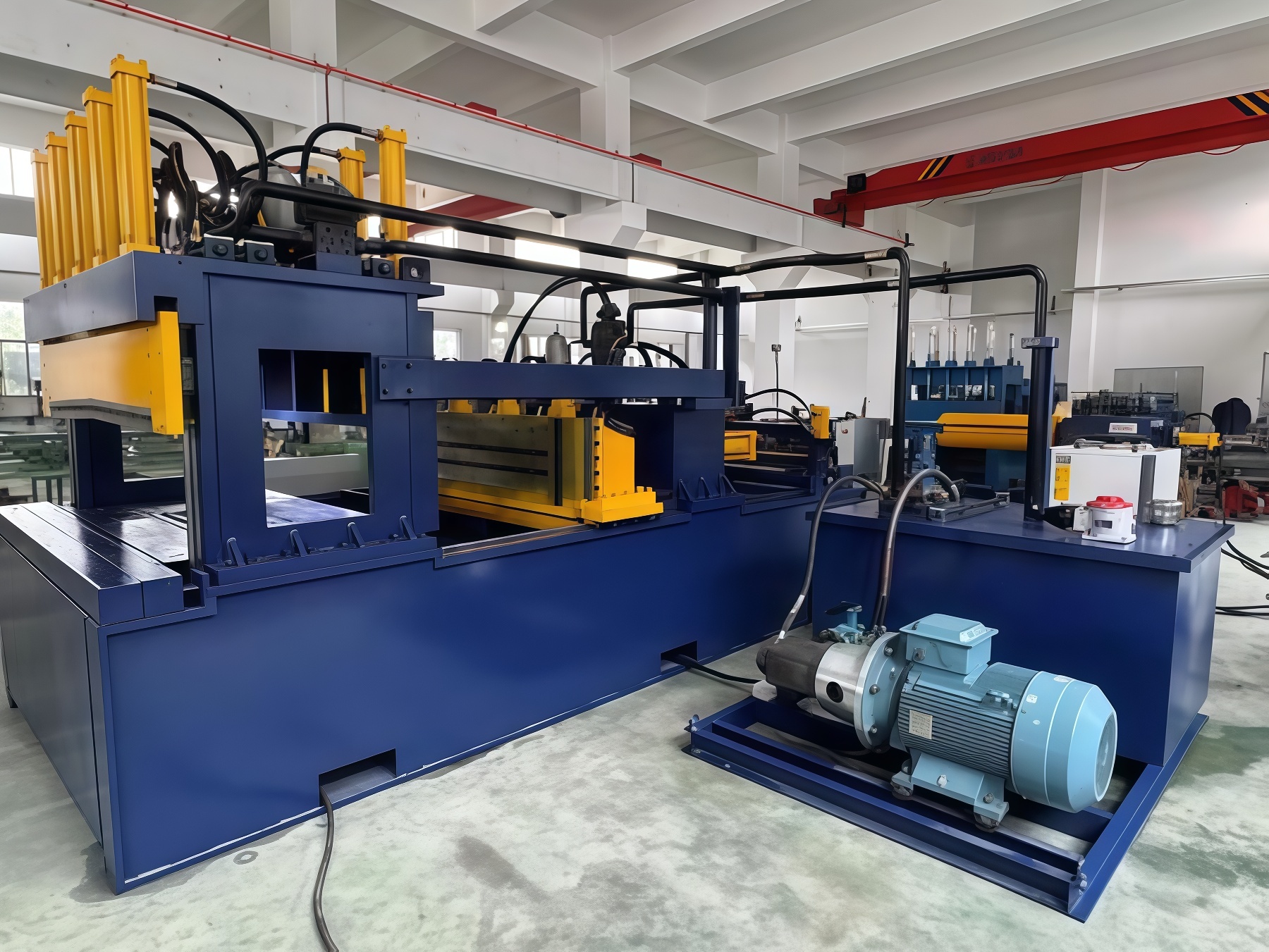

The whole forming process of corrugated walls forming machine is controlled by cnc servo. after feeding steel strip into the equipment, operators press the start button, the machine can automatically complete corrugated wall forming operation according to preset program, including fin shaping, embossing processing and edge forming. after the forming procedure finishes, the workpiece can be transported out, and the equipment automatically resets for next processing cycle.
 |
 |
