Equipment usage and characteristics

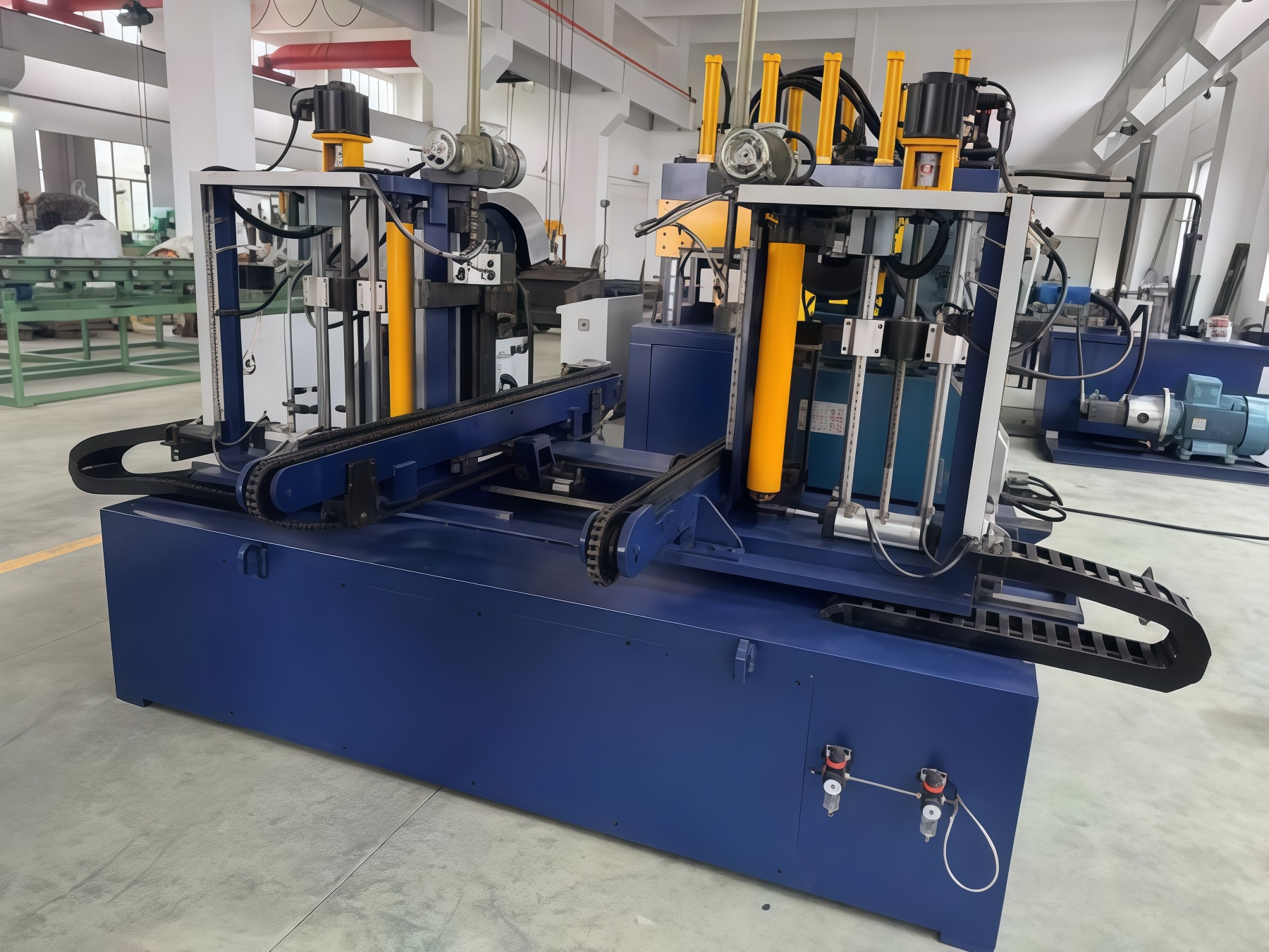

Automatic welding machine
The entire corrugated wall welding process of the equipment is controlled by PLC servo system. After manually feeding the formed corrugated wall workpiece, press the start button, the equipment can automatically control the automatic operation of welding torch travelling and clamping fixture. The equipment can automatically complete the automatic operation process of welding speed, welding current and welding seam forming according to the program. After the welding work is completed, the fixture automatically relaxes, the finished corrugated wall part is manually removed, and the equipment status automatically resets.
1、The main driving adopts servo mode, and the fixture adopts oil cylinder and regulating valve to ensure accurate positioning of each workstation:
2、The welding torch travelling adopts servo and ball screw transmission, which has the characteristics of accurate positioning and high accuracy.
3、Reasonable structure: adjustable welding parameters, high degree of automation, simple operation, convenient, reliable safety performance, simple maintenance, continuous operation, good stability, and high production efficiency.
4、Material width range: 300‑1250mm
5、Fin height range: 50‑400mm
6、Min. fin pitch range: ≥45mm
7、Material thickness range:1.2‑1.5mm
8、Welding speed range:0.5‑1.5 m/min
9、Max welding current range:0‑350A
10、Welding wire diameter:1mm
11、Shield gas consumption range:15 L/min
12、Tip length of welding wire range:7‑10 mm
13、Welding gas mixing ratio:85%Ar+15%CO2
 |
 |
