Fully Automatic Transformer Corrugated Fin Tank Production Line for Oil Immersed Distribution Transformer Manufacturing
✔ Wide corrugated wall processing range
✔ High forming and welding efficiency
✔ Adjustable hydraulic forming parameters
✔ Stable precision for mass continuous production
- Overview
- Recommended Products
- Oil‑immersed distribution transformer corrugated fin tank manufacturing
- Transformer radiator corrugated wall production
- Power equipment metal tank shell manufacturing
Product Overview

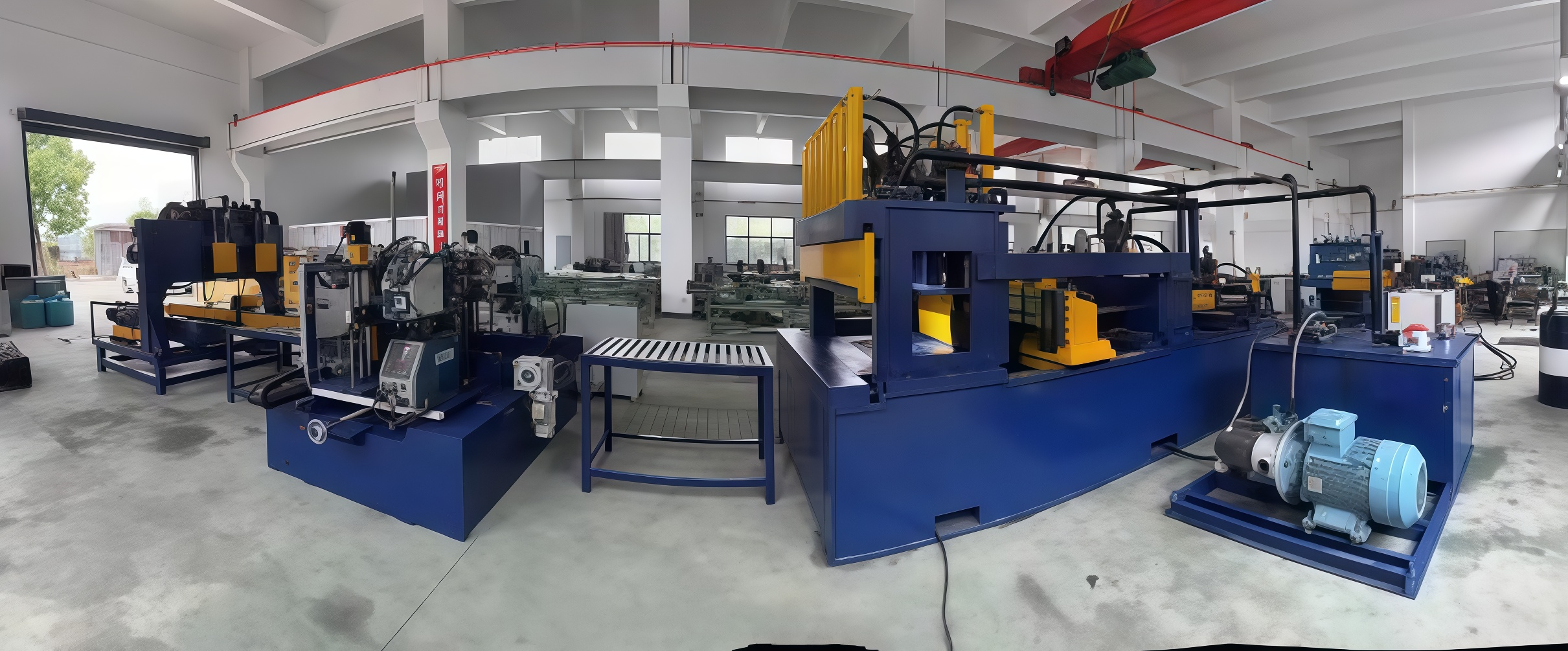

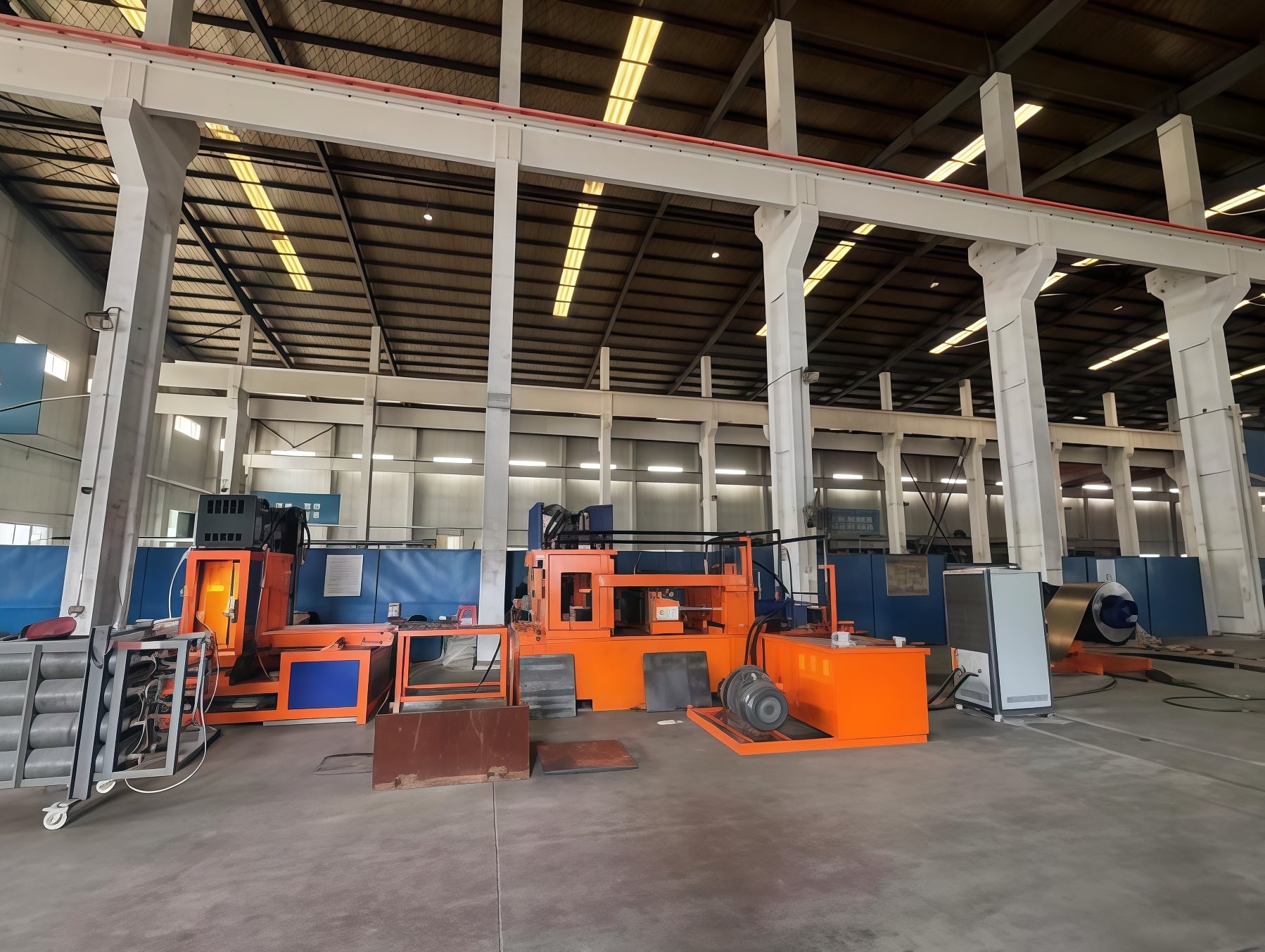

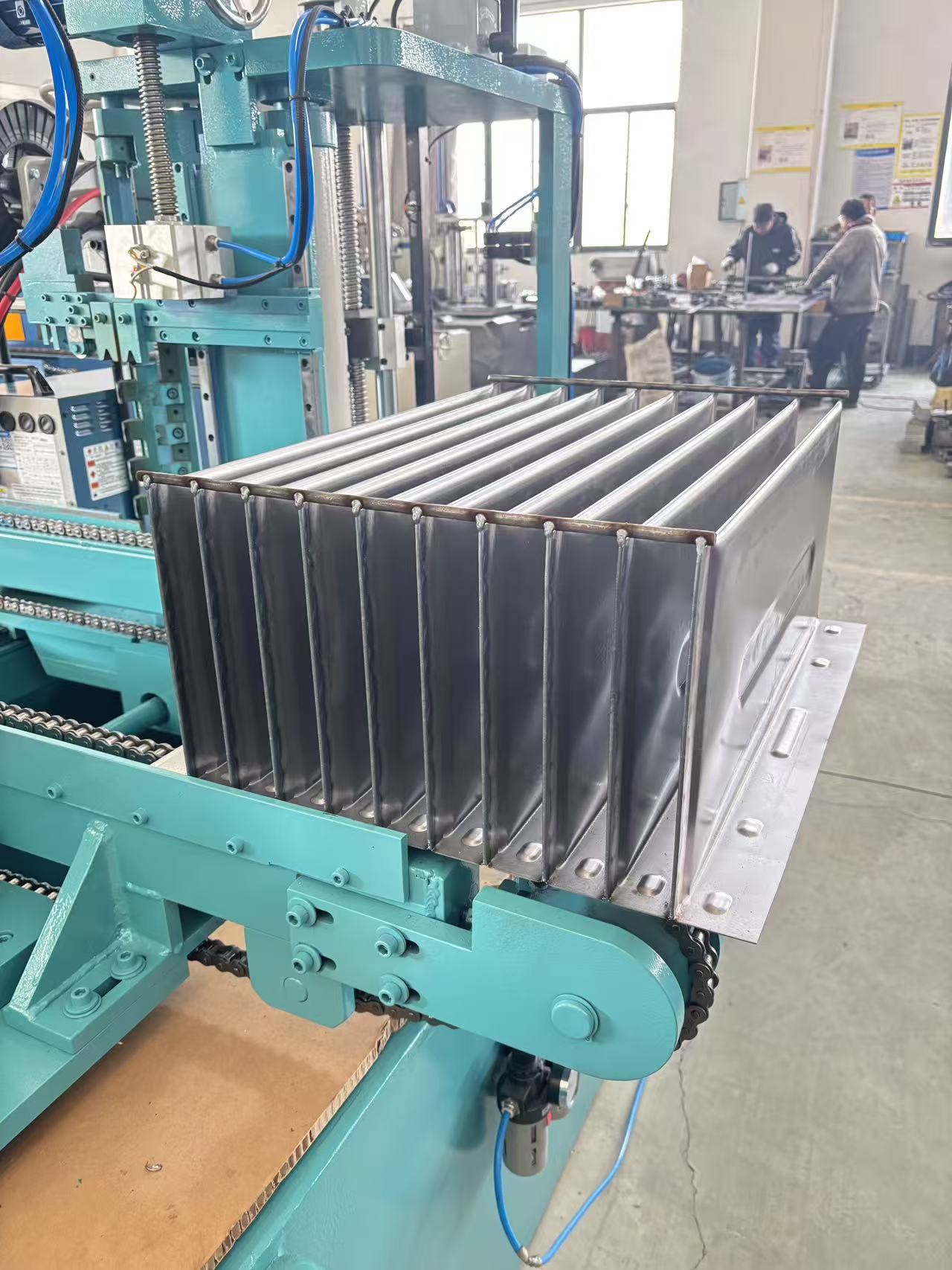

This corrugated fin tank production line (OCEAN LBW1300‑400) is designed for manufacturing corrugated wall tanks of oil‑immersed distribution transformers, integrating decoiling, corrugated wall forming, MAG automatic welding, conveying, spot welding and bending into a complete and efficient system.

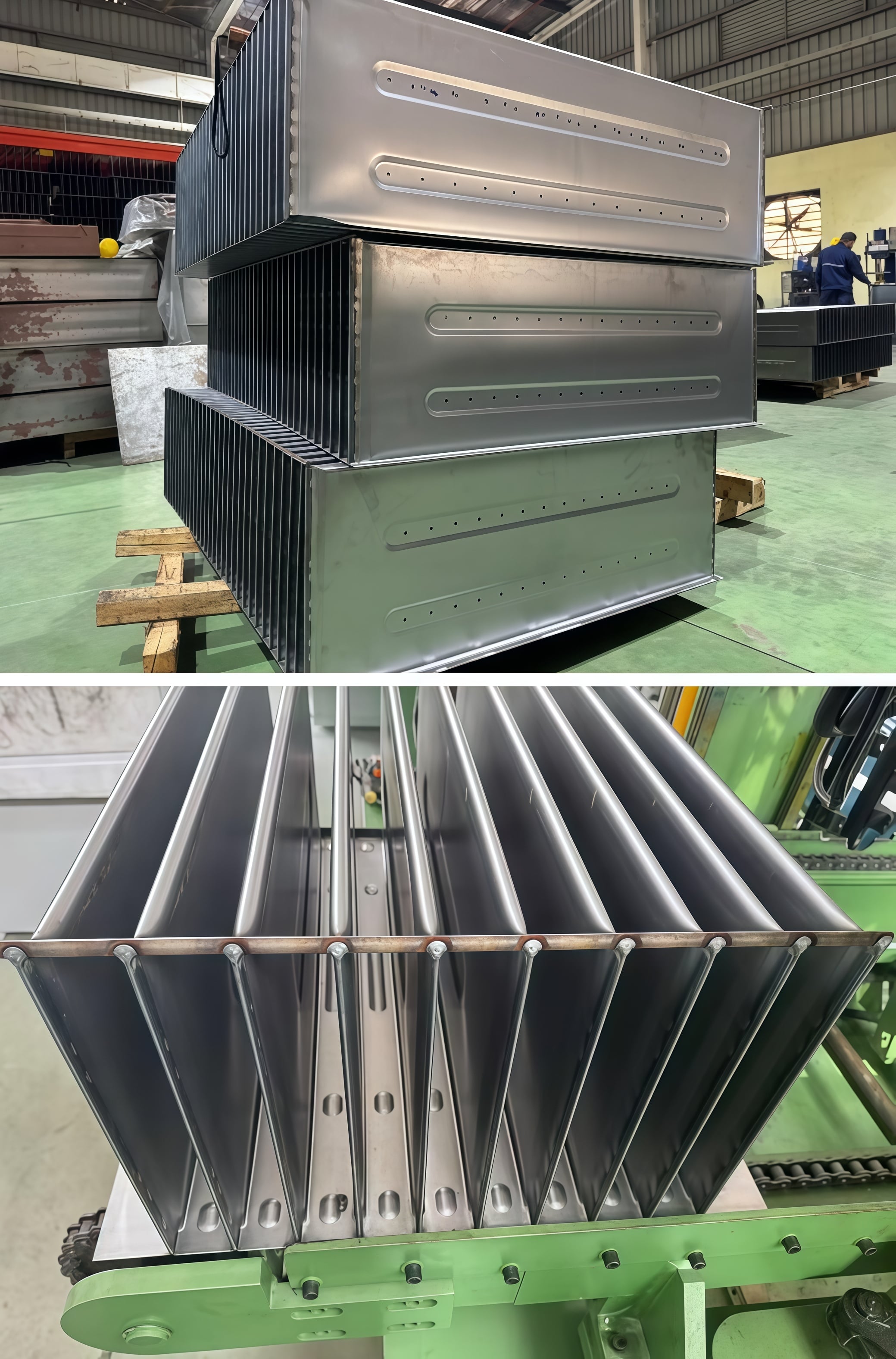

This solution is suitable for mass production of transformer corrugated fin tanks, with forming capacity of 3‑4 sheets per minute. It supports both embossed and non‑embossed corrugated wall production (actual output varies depending on fin height and specifications).
Key Advantages
1. Complete Process Integration
The production line covers the full corrugated fin tank manufacturing process, from automatic coil decoiling, corrugated wall forming, conveying, automatic MAG welding, spot welding to final bending, ensuring a seamless workflow and improved production efficiency.
2. High Stability for Continuous Production
Designed for long‑hour industrial operation, the system adopts well‑known international key components including Siemens PLC & touch screen, HIWIN linear guides, Schneider electrical parts, OTC welding machine and Huade hydraulic components. It maintains stable performance and consistent output under continuous production conditions.
3. Flexible and Customizable Design
The production line can be configured based on material width, fin height, fin pitch, embossment requirement, production capacity, and factory layout requirements.
Applications
This production line is widely used in:
Main Equipment Configuration
| No | Name | Qty(set) | Application of equipment |
| 1 | Automatic Decoiler Machine | 1 | Uncoil steel coil for corrugated wall production, max coil weight 6 tons |
| 2 | Corrugated walls forming machine | 1 | Hydraulic forming for transformer corrugated walls |
| 3 | Automatic welding machine with MAG welding | 1 | MAG automatic seam welding for corrugated wall panels |
| 4 | Conveyor rack | 2 | Workpiece transfer between forming station and welding station |
| 5 | Spot welding machine | 1 | Spot welding for corrugated wall assembly |
| 6 | Hydraulic system | 1 | Power supply for forming, decoiler and bending actions |
| 7 | Electrical system | 1 | Whole‑line PLC intelligent control |
| 8 | Bending machine | 1 | Edge bending for finished corrugated wall panels |
FAQ
Q1: Can the production line be customized for different corrugated wall sizes?
Yes, the system can be tailored according to material width, fin height, embossment pattern, and production requirements.
Q2: How is product quality ensured?
High‑end imported core components are adopted for hydraulic, electrical and welding sections. Each station has real‑time monitoring to guarantee forming and welding quality.
Q3: What material specifications can this line process?
It processes material width 300‑1250mm, fin height 50‑400mm, sheet thickness 1.2‑1.5mm, supports embossed and non‑embossed corrugated walls.
Q4: Is this line suitable for continuous production?
Yes, it is designed for stable, long‑hour industrial operation.
 |
 |
