Heating Oven For Transformer

Overview
Recommended Products

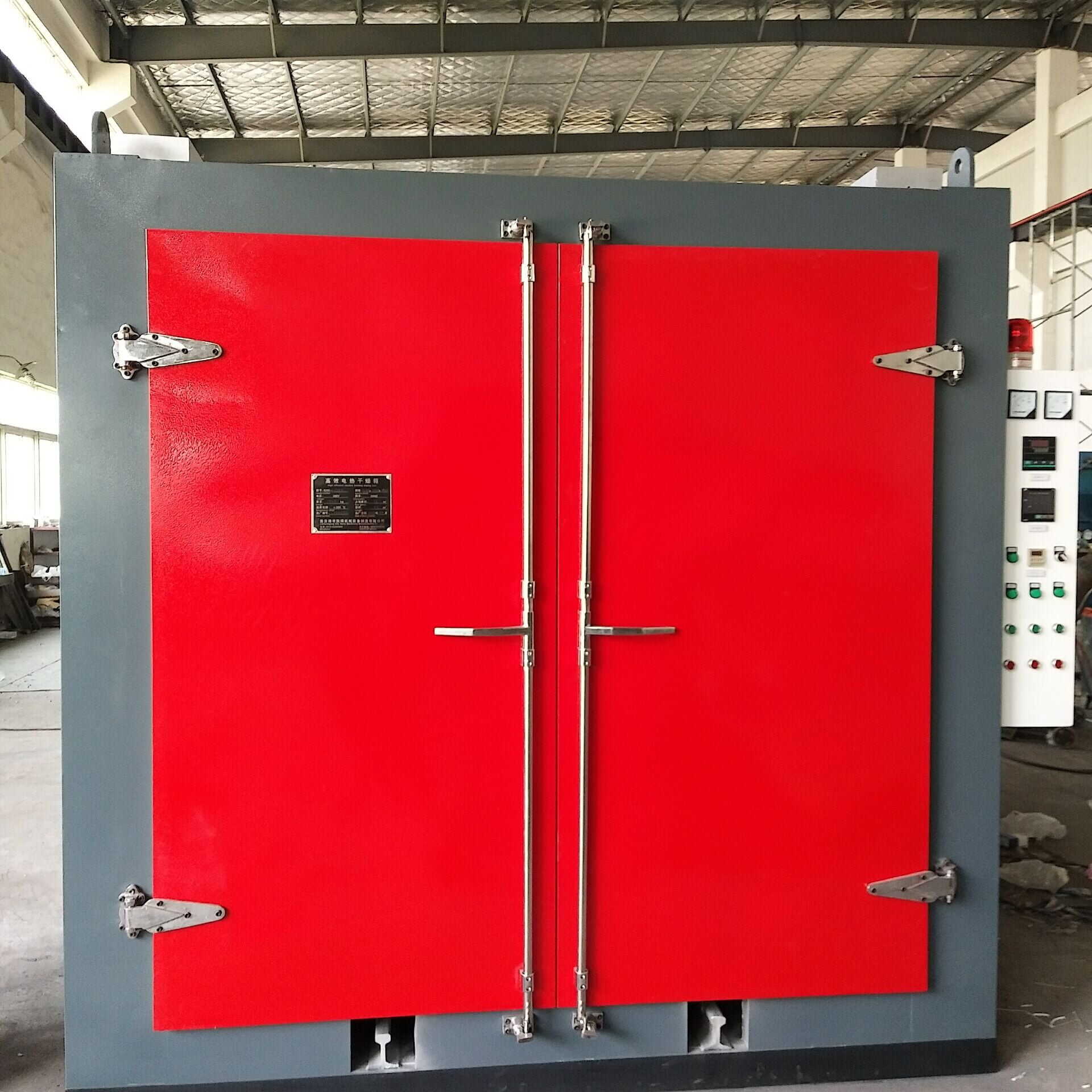

XHH safe and energy-saving drying oven is mainly suitable for industries such as motors, appliances, transformers, electronics, etc. In the industry, coil dipping and drying is a key process, which is characterized by uniform temperature and high Factor of safety.

The temperature uniformity circulation ventilation method with good energy-saving performance and the large air volume hot air circulation system ensure that the equipment has good temperature uniformity throughout the entire heating process.

The bottom of the box is laid with tracks, and different trolley driving methods such as manual, rack drive, electric drive, and traction trolley drive can be selected according to the weight of the product.

This series of products is designed to improve the safety and work efficiency of motor, electrical appliance, transformer, and coil impregnation drying. It can be used in conjunction with vacuum pressure impregnation equipment, vacuum containing impregnation equipment, impregnation equipment, etc., for drying after impregnation treatment.

Main features

Technical parameters

Specifications	Studio MMe (length * width * height)	Work	Voltage Temperature	Power frequency	Heating power	Temperature uniformity
KHH	120015001000	500	380V	50HZ	18KW	±2.5
KHH	150018001600	500	380V	50HZ	27KW	±2.5
KHH	200018001700	500	380V	50HZ	45KW	±2.5
KHH	220020002200	500	380V	50HZ	36 KW	±2.5
KHH	250022002000	500	380V	50HZ	54KW	±2.5
KHH	280025002000	500	380V	50HZ	65 KW	±2.5
KHH	300025002000	500	380V	50HZ	81KW	±2.5
KHH	350028002500	500	380V	50HZ	90 KW	±2.5
KHH	350030002800	500	380V	50HZ	98KW	±2.5
KHH	400030002000	500	380V	50HZ	108KW	±2.5
KHH	400030002500	500	380V	50HZ	128KW	±2.5
KHH	400030002800	500	380V	50HZ	128KW	±2.5
KHH	400030003000	500	380V	50HZ	132KW	±2.5
KHH	450025002000	500	380V	50HZ	132KW	±2.5
KHH	450030002500	500	380V	50HZ	140KW	±2.5
KHH	500035002500	500	380V	50HZ	144KW	±2.5
KHH	500035003000	500	380V	50HZ	154KW	±2.5
KHH	500040003000	500	380V	50HZ	165KW	±2.5
KHH	500040003500	500	380V	50HZ	172KW	±2.5
KHH	550045004000	500	380V	50HZ	180KW	±2.5
KHH	550045004000	500	380V	50HZ	192KW
KHH	550045004000	500	380V	50HZ	220KW	±2.5
