Equipment usage and characteristics

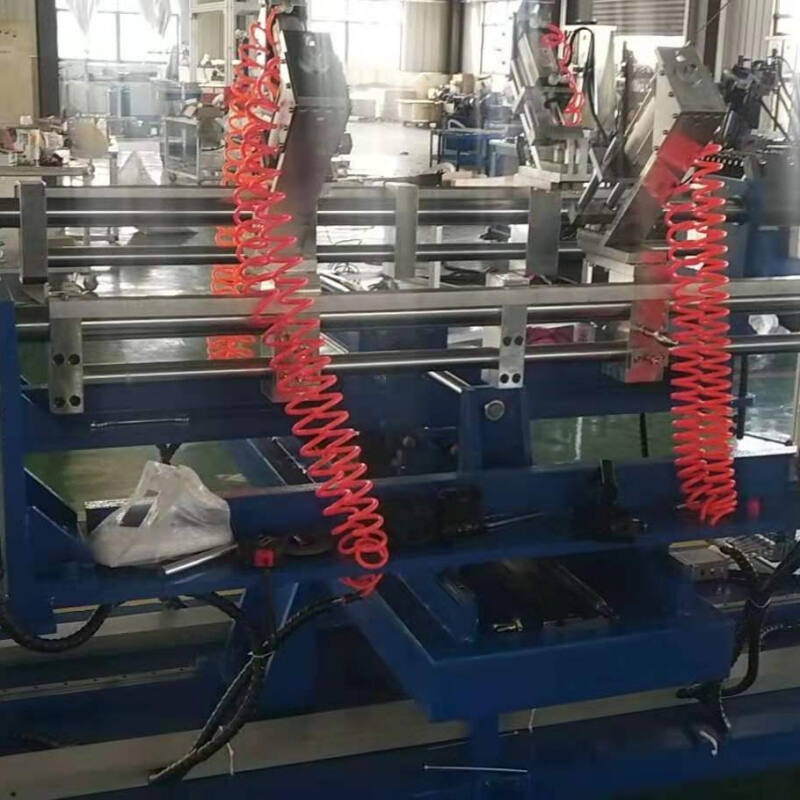

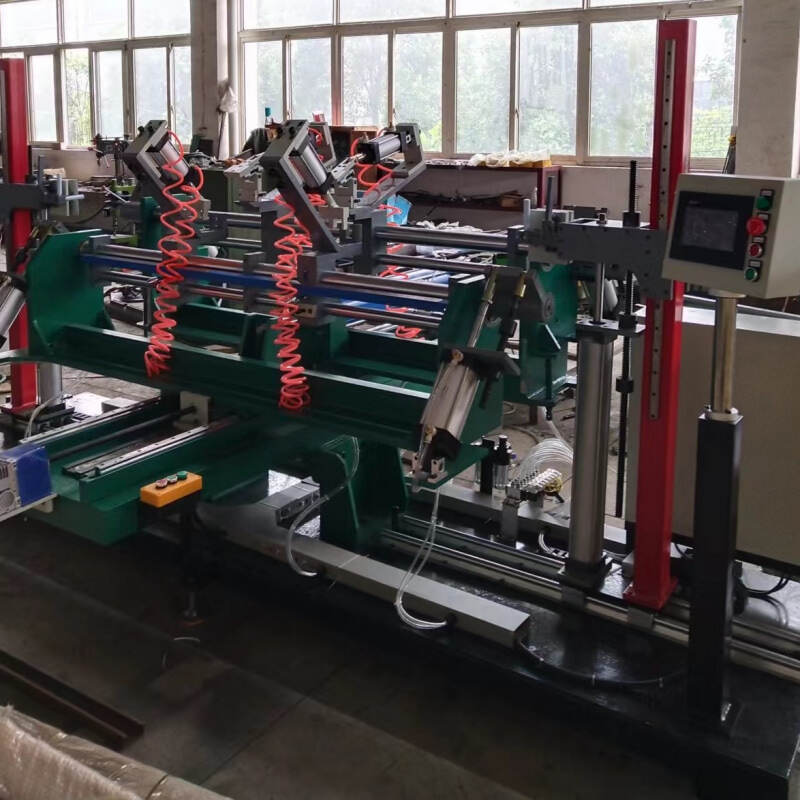

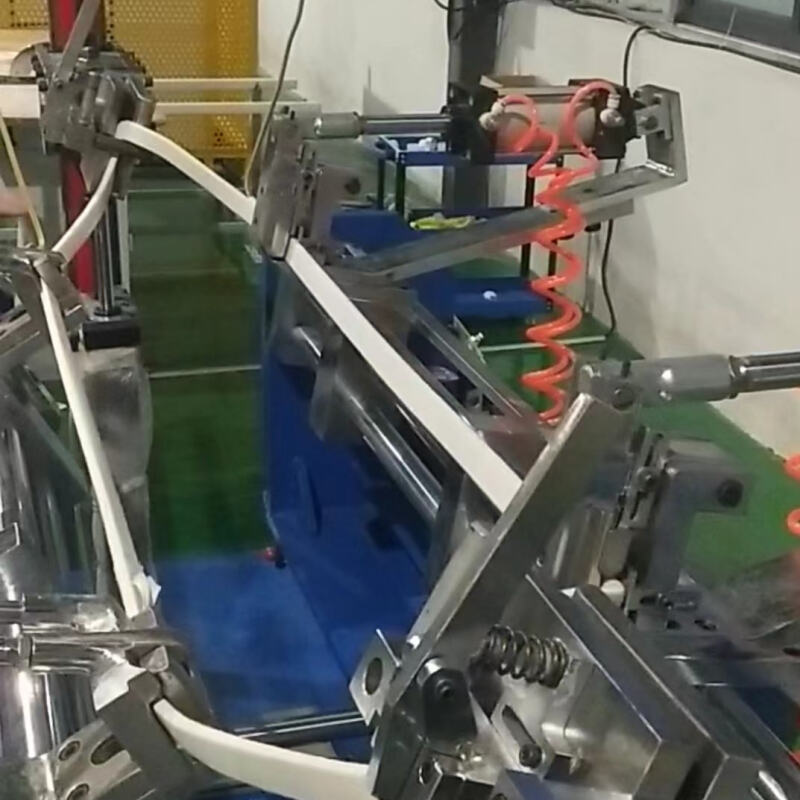

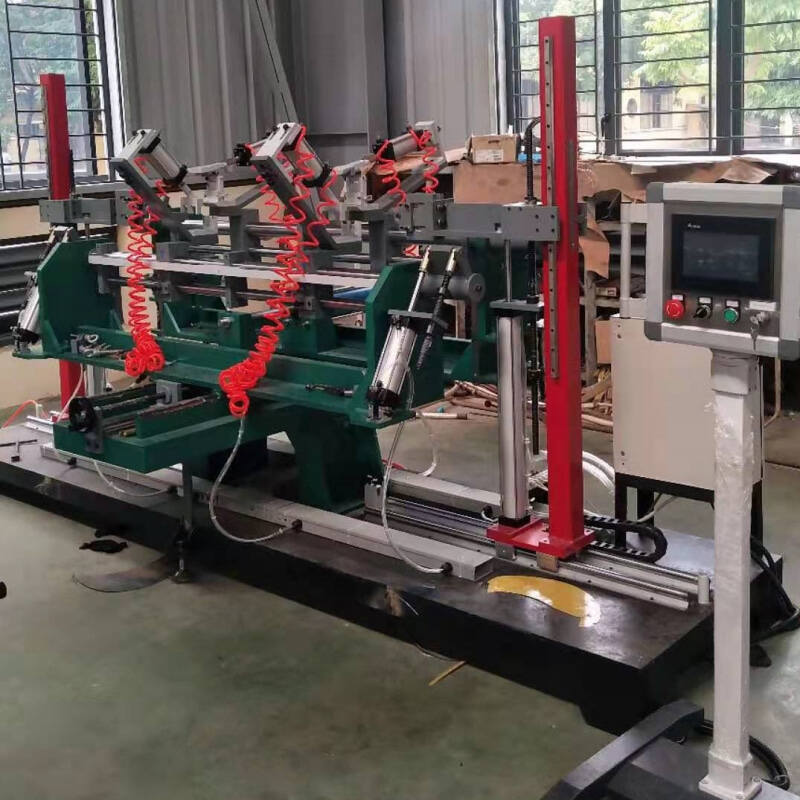

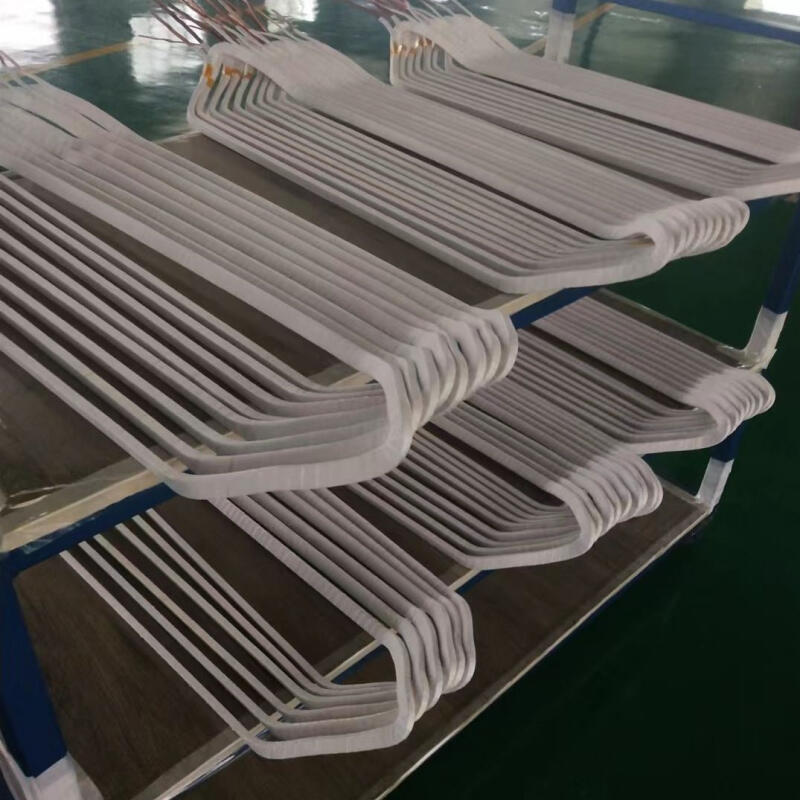

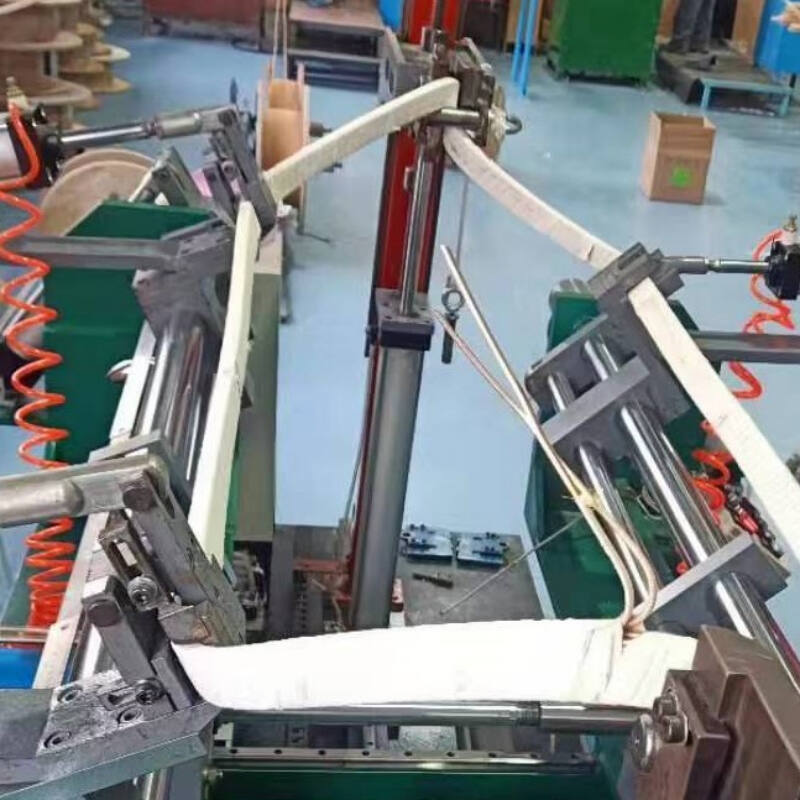

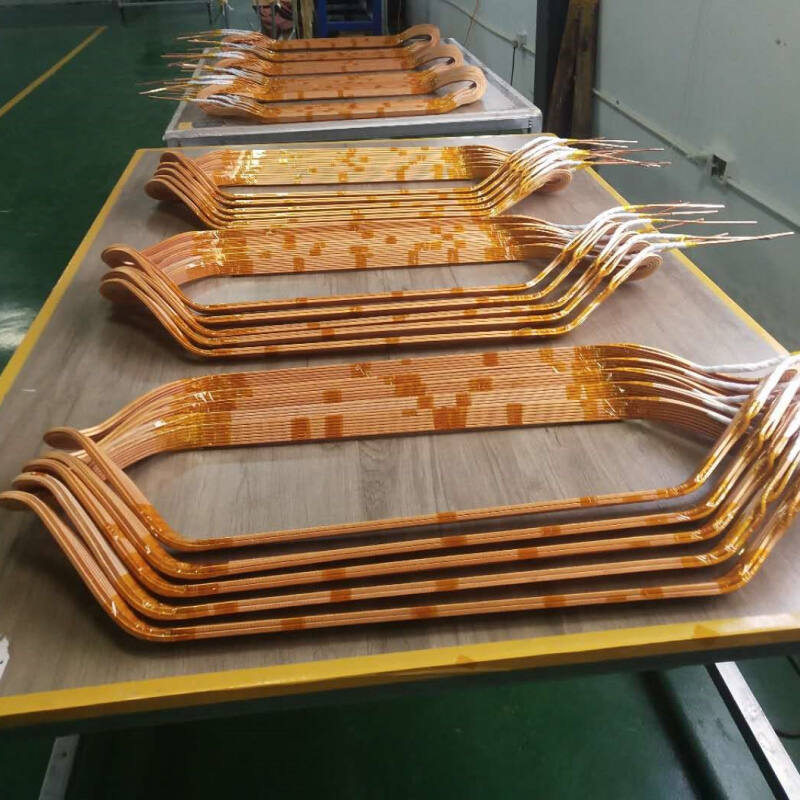

1. This machine is widely used for high-voltage stator coil expansion. It automatically shapes the coil from its initial shape to a rectangular cross-section shape through the movement of the thruster and the cylinder clamp. It is used for one-time forming of shuttle shaped coils, large shuttle shaped coils, and ship shaped coils. This machine is used for pulling the stator frame shaped coils of large and medium sized motors with longer expansion prisms or larger cross-section motors.
Main technical specifications and requirements
Clamp range (adjustable)
Maximum:18 x 45 mm
Min:5x15mm
Maximum coil cross-section:20x 50mm
Minimum straight edge length:300 mm
Maximum straight edge length:1850mm
Bevel length min/max:150 mm/400 mm
Oblique nose height:150-360 mm
Expansion arm opening angle:10°-65°
Width (span) :70-750 mm
Maximum length before expansion:2500mme
 |
 |
 |
 |
