Product Features and Uses

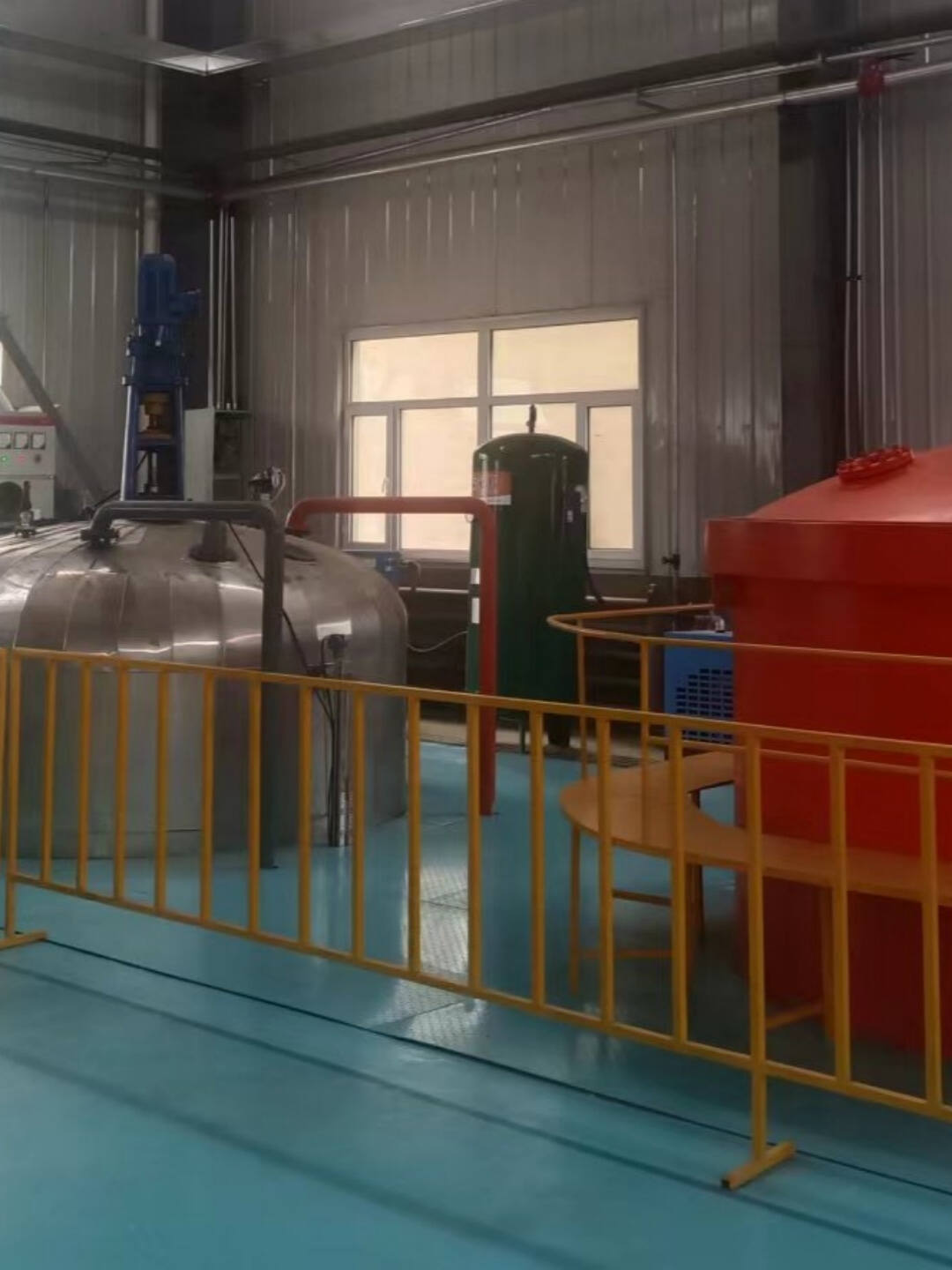

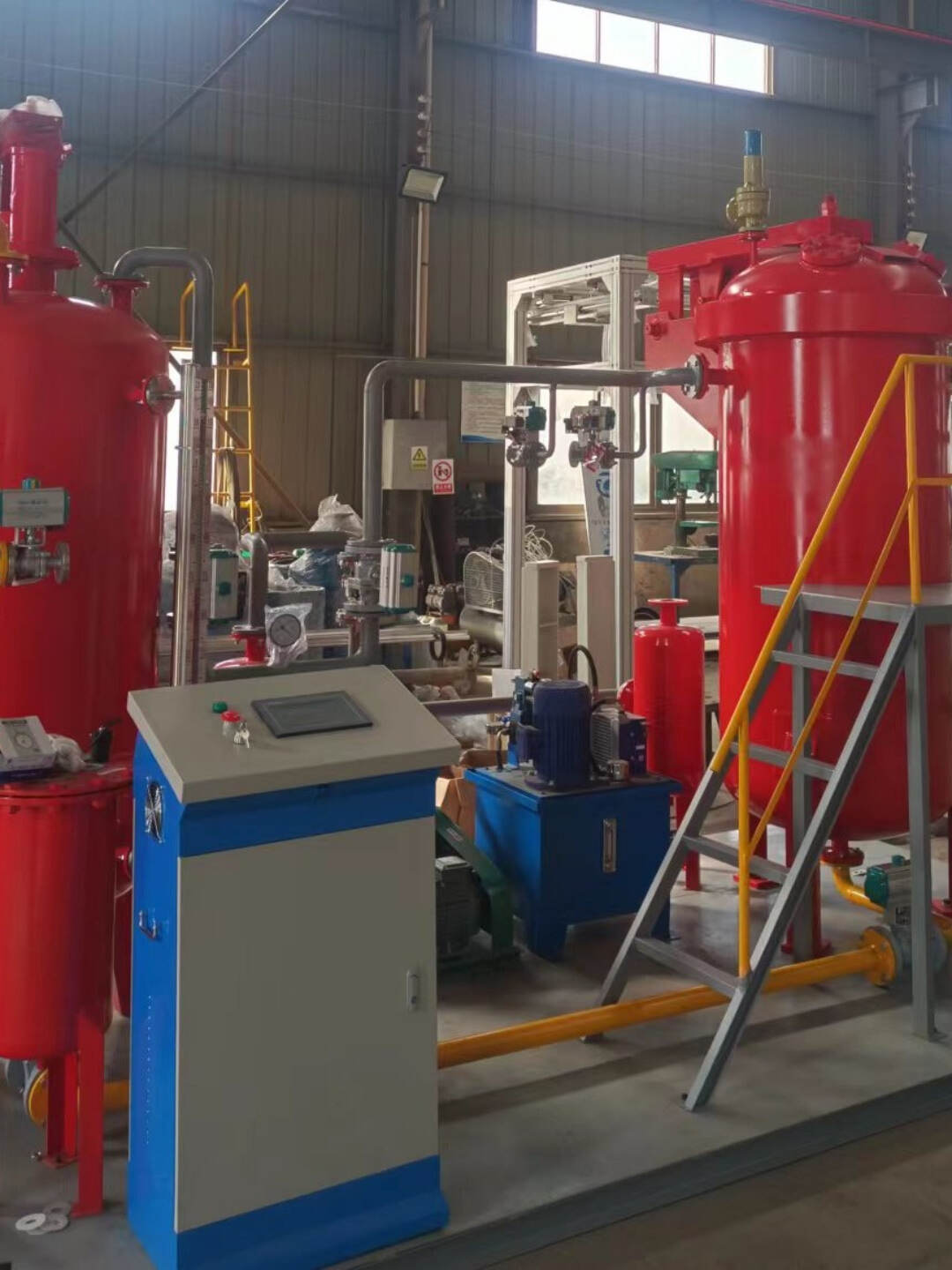

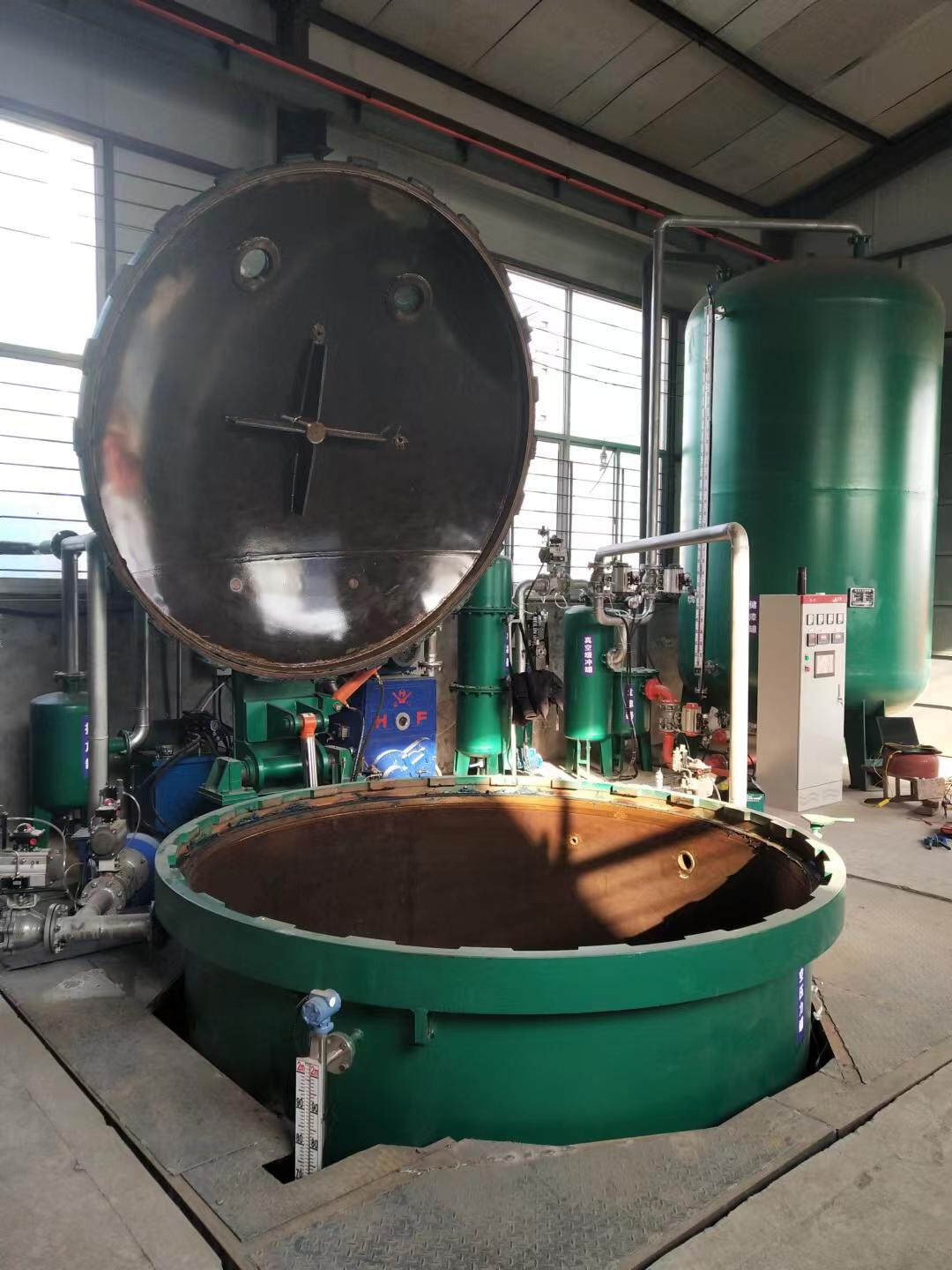

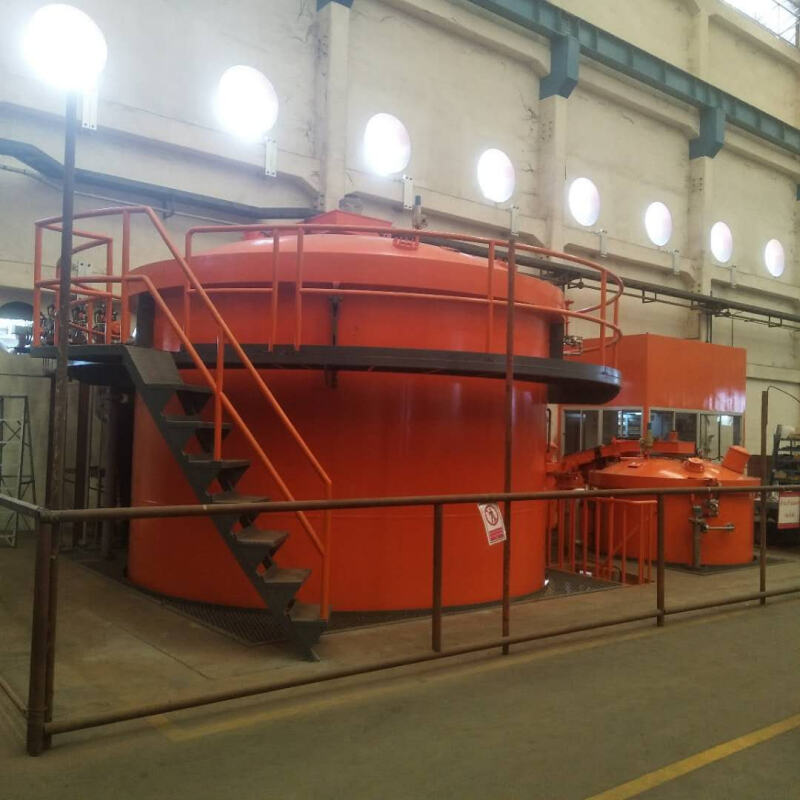

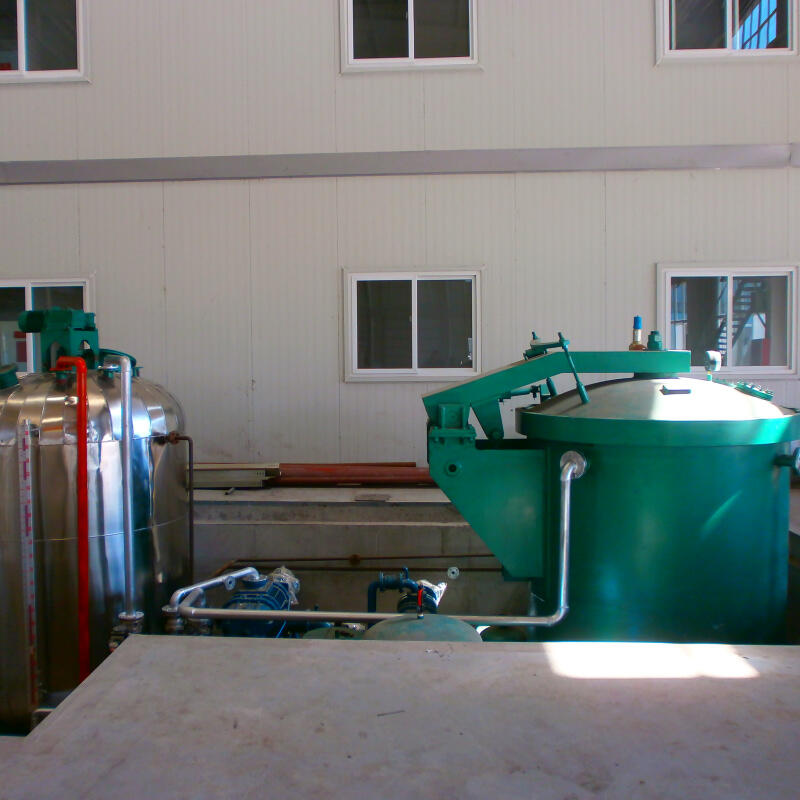

The VPI series vacuum pressure impregnation equipment adopts the same sealing method
The process of high vacuum impregnation followed by pressure application in the container allows the impregnation paint to quickly and thoroughly immerse into the gaps of the workpiece. This process is widely used in high-voltage electricity
Machines, traction motors, special motors, explosion-proof water pump motors, magnetos, transformers, etc

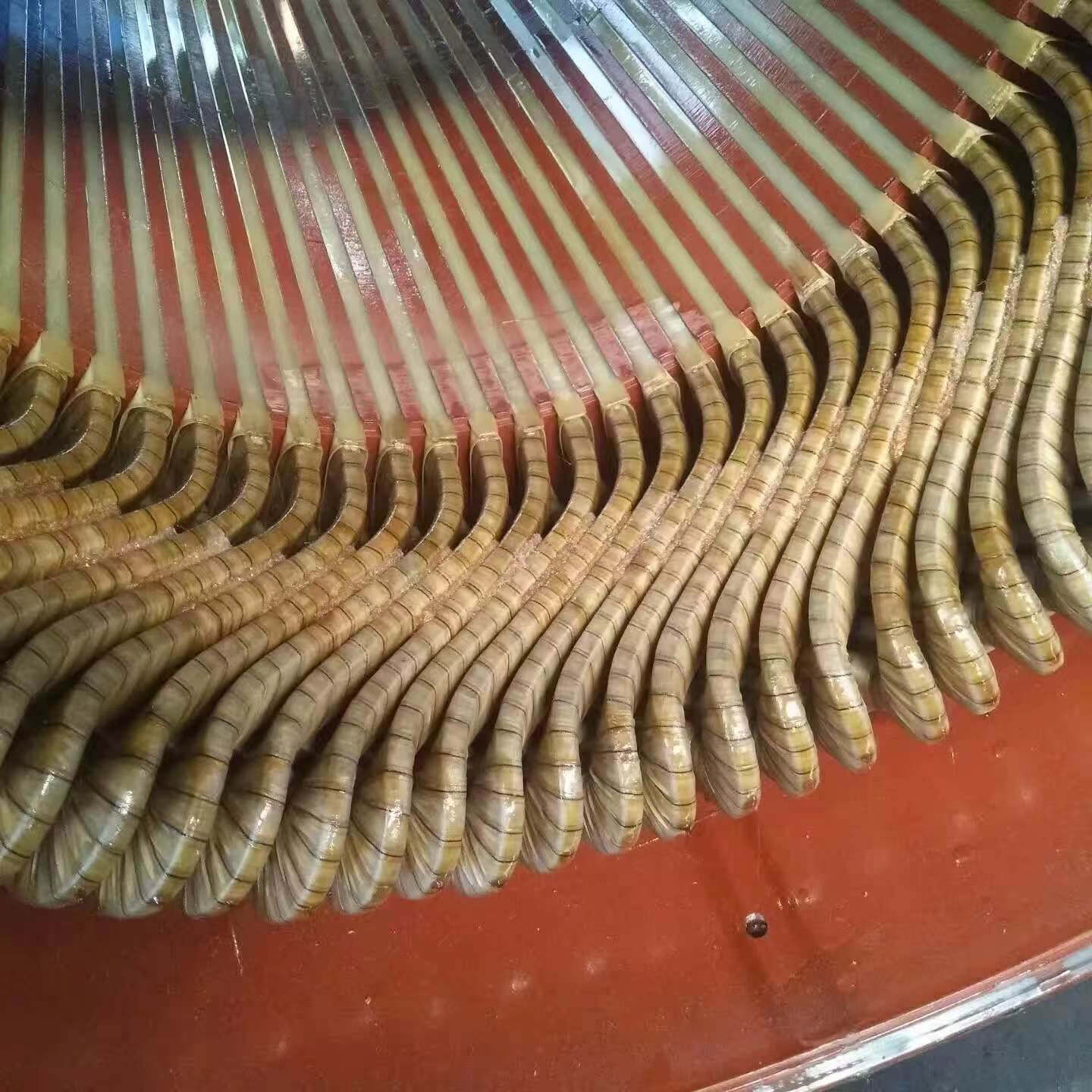

The vacuum insulation treatment of coils in various industries, such as high-voltage products, has the characteristics of improved insulation performance, reduced temperature rise, improved efficiency, and increased mechanical strength, effectively preventing coil insulation faults, improving moisture-proof ability, improving the strength of workpieces, and extending the service life of products. ←
 |
 |
 |
Technical parameters
Paint dolphin nominal True path |
Dipped lacquer ray
|
Nominal volume |
Container working true Empty Pa- |
Container work equipmentoccupies the ground Pressure MPa |
Power |
Floor area |
Specification and model |
㎜ |
M³ |
|
|
kW |
Width and length |
VPI-700 |
700 |
0.46 |
20-5000 |
0.1-2.0 |
7 |
1800×3400㎜ |
VPI-900 |
900 |
0.94 |
20-5000 |
0.1-2.0 |
15 |
2100×3400㎜ |
VPI-1000 |
1000 |
1.74 |
20-5000 |
0.1-2.0 |
22 |
2100×3400㎜ |
VPI-1200 |
1200 |
1.92 |
20-5000 |
0.1-2.0 |
27 |
2200×4500㎜ |
VPI-1400 |
1400 |
3.85 |
20-5000 |
0.1-2.0 |
27 |
2400×4800㎜ |
VPI-1600 |
1600 |
4.47 |
20-5000 |
0.1-2.0 |
27 |
3200×5400㎜ |
VPI-1800 |
1800 |
6.65 |
20-5000 |
0.1-2.0 |
33 |
3800×6900㎜ |
VPI-2000 |
2000 |
8.78 |
20-5000 |
0.1-2.0 |
35 |
4500×7800㎜ |
VPI-2500 |
2500 |
16.50 |
20-5000 |
0.1-2.0 |
40 |
4900×8500㎜ |
VPI-2800 |
2800 |
22.17 |
20-5000 |
0.1-2.0 |
45 |
5800×9400㎜ |
VPI-3000 |
3000 |
26.49 |
20-5000 |
0.1-2.0 |
45 |
660011400㎜ |
VPI-5000 |
5000 |
49.86 |
20-5000 |
0.1-2.0 |
60 |
11800×16800㎜ |
