Hydraulic Coil Hot Press Machine 1600mm Working Length for High Voltage Motor Forming Coil Curing and Shaping
✔ Precise temperature control for coil forming
✔ Uniform and stable pressure output
✔ Excellent coil curing performance
- Overview
- Recommended Products
- High voltage motor coil manufacturing
- Stator coil hot pressing and curing
- Forming and shaping of motor forming coils
- Electrical equipment coil processing

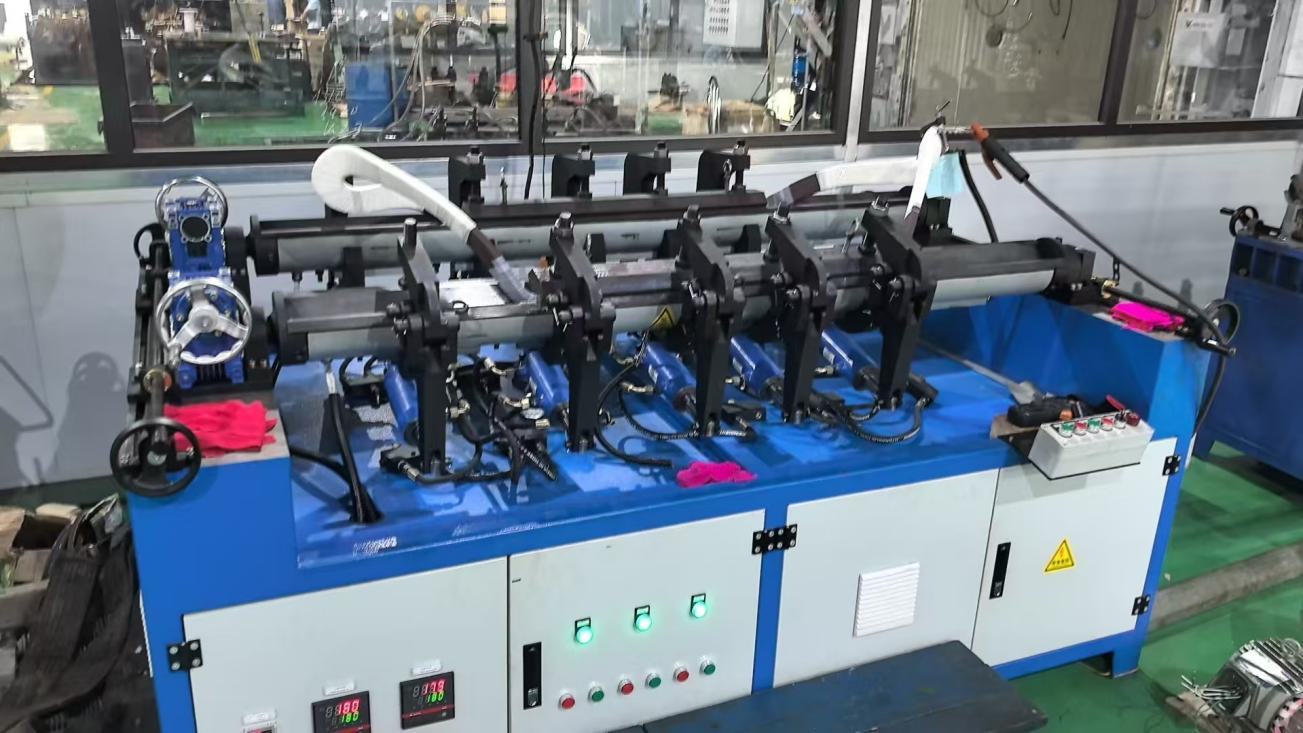

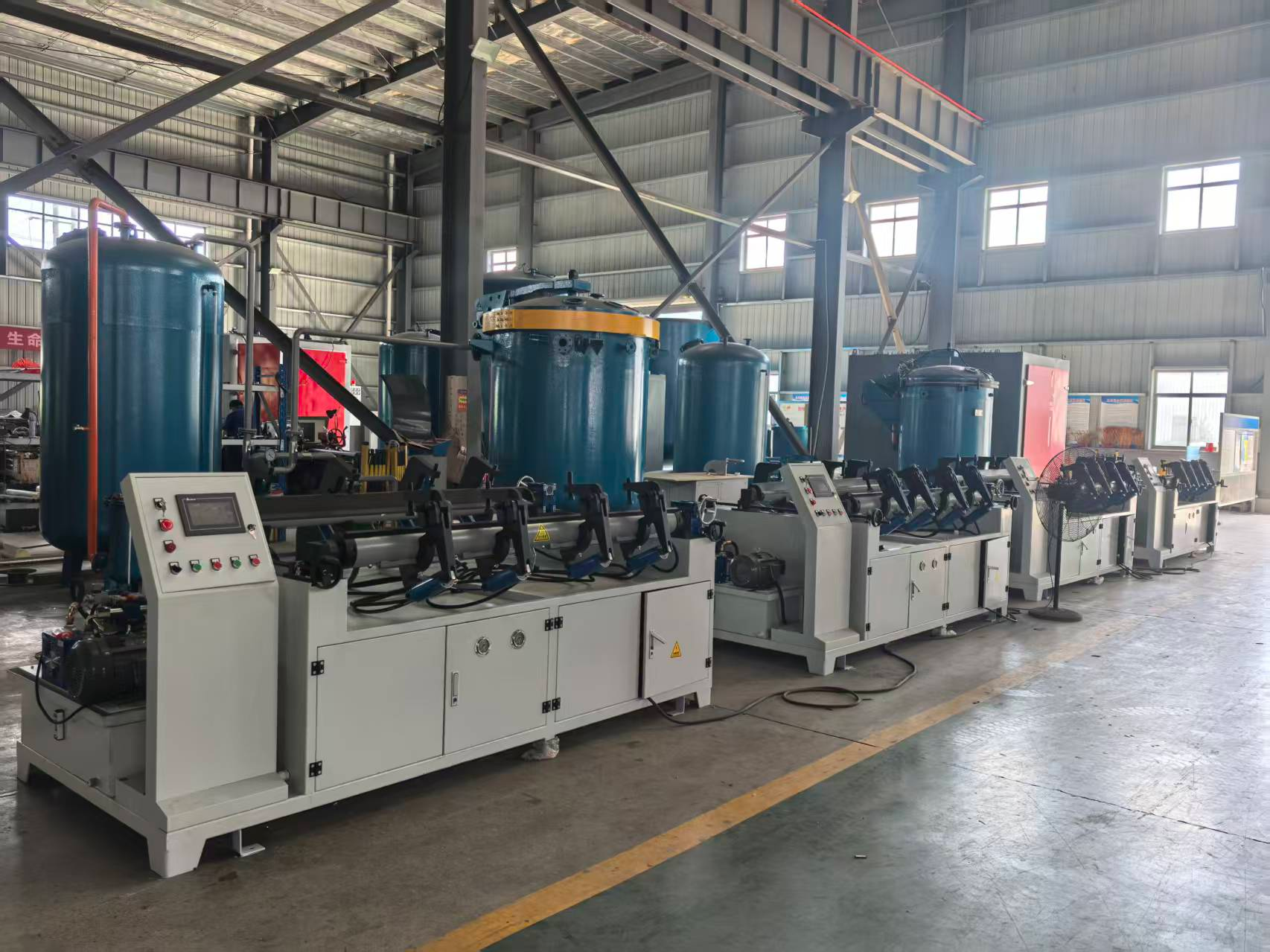

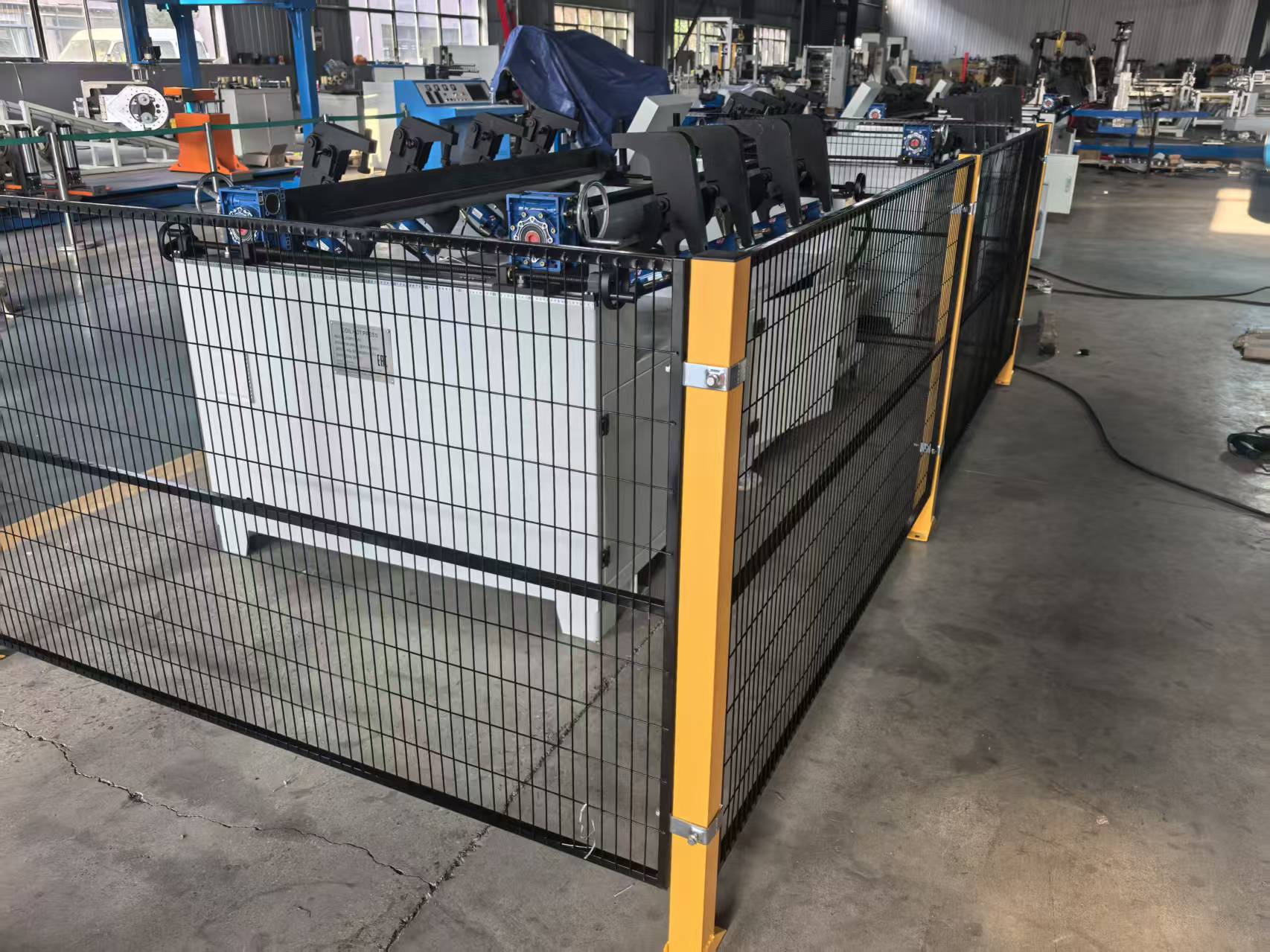

Coil Hot Press Machine
Product Overview
This coil hot press machine is specially designed for coking and shaping the linear part of high-voltage motor forming coils. It adopts integrated hydraulic control system and electric heating structure, realizing automatic pre-pressurization, temperature control and coil curing forming. It can process coils with straight edge length up to 1600mm, suitable for high voltage motor coil manufacturing.
Key Advantages
1. Adjustable Dual‑layer Mold Structure
Two‑layer molds with slidable clamps, flexible travel range, max load 300 Kg for various coil dimensions.
2. Automatic Hydraulic Pressure Control
Auto pre‑press & timed boost up to 6 MPa, pressure compensation every 5 min for consistent pressing result.
3. Precise Constant‑temperature Heating
12 kW heating power, 140‑220 ℃ working range, mold temperature deviation ≤10 ℃ with timer alarm.
4. High‑precision Rotatable Mold
Bearing‑steel L‑shaped mold, 0‑160° rotation, fine surface finish and flatness for complex coil forming.
5. Premium Brand Components
Schneider, Omron and well‑known hydraulic parts, reliable performance, easy maintenance and long service life.
Applications
This machine is widely used in:
Main Equipment Configuration
| No | Name | Qty(set) | Application of equipment |
| 1 | Main frame & double-layer mold assembly | 1 | Install heating plate and clamping mechanism |
| 2 | Integrated hydraulic station | 1 | Provide pressing power for clamping cylinders |
| 3 | Hydraulic cylinder | 1 | Clamping and pressing for coil forming |
| 4 | Solenoid valve | 2 | Control hydraulic oil circuit action |
| 5 | Overflow valve | 1 | Hydraulic pressure regulation and protection |
| 6 | Electric heating tube | 4 | Mold heating for coil curing |
| 7 | Electrical control cabinet | 1 | Temperature & hydraulic logic control |
| 8 | Foot switch | 1 | Independent control of clamping cylinder |
| 9 | Induction switch | 4 | Position detection for mold movement |
FAQ
Q1: What is the maximum coil size this machine can process? A: The maximum straight side length of coil can reach 1600mm, coil width 200-1000mm. Q2: What is the heating temperature range? A: Adjustable temperature range:140℃~220℃, max working temperature 250℃. Q3: Can the mold angle be adjusted? A: Yes, the L-shaped mold can rotate from 0° to 160° to adapt different coil shapes.
 |
 |
