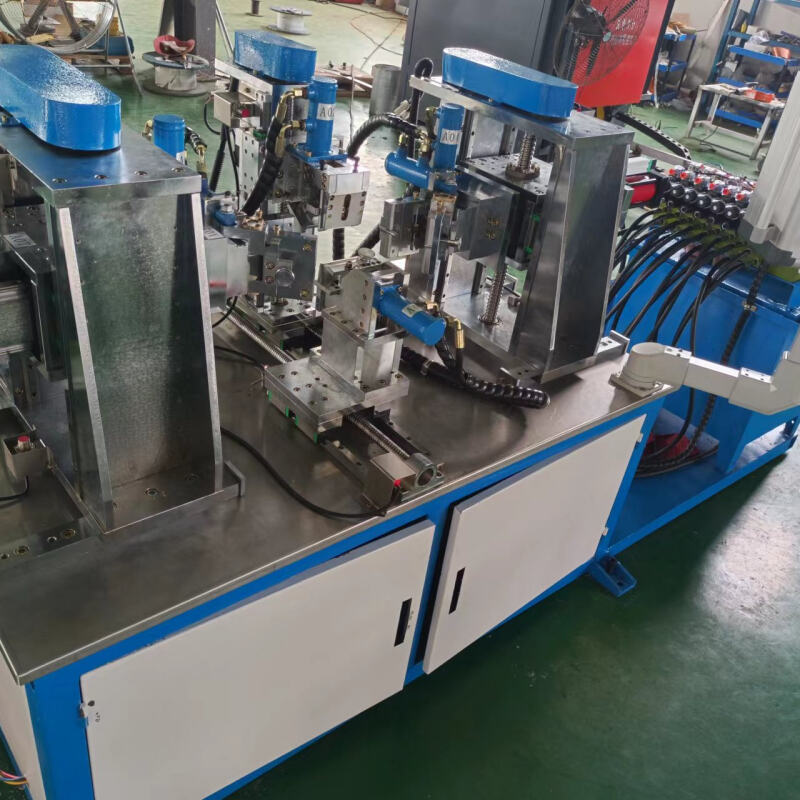

Equipment usage and characteristics

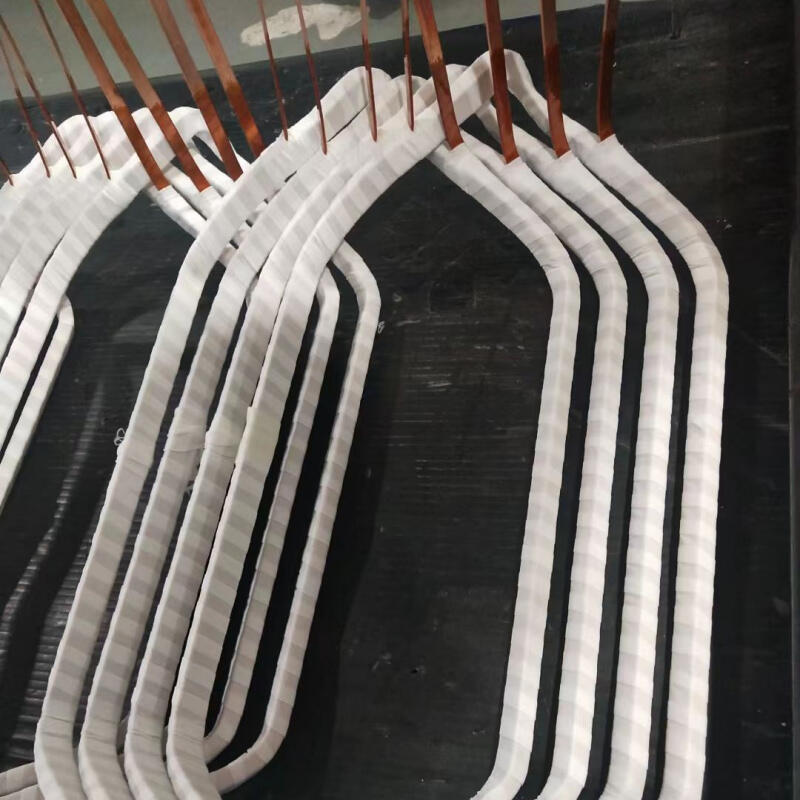

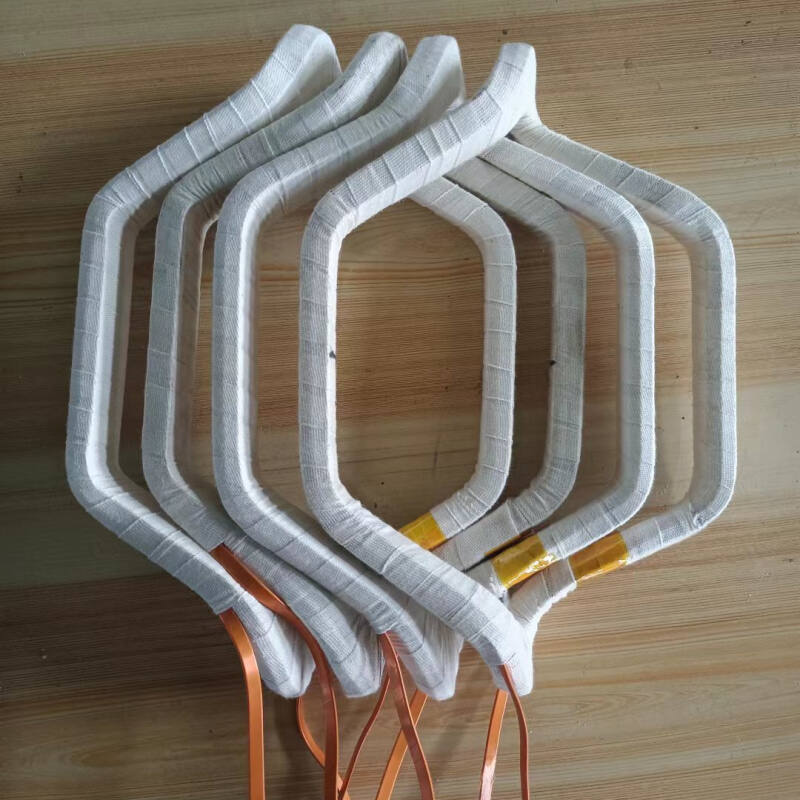

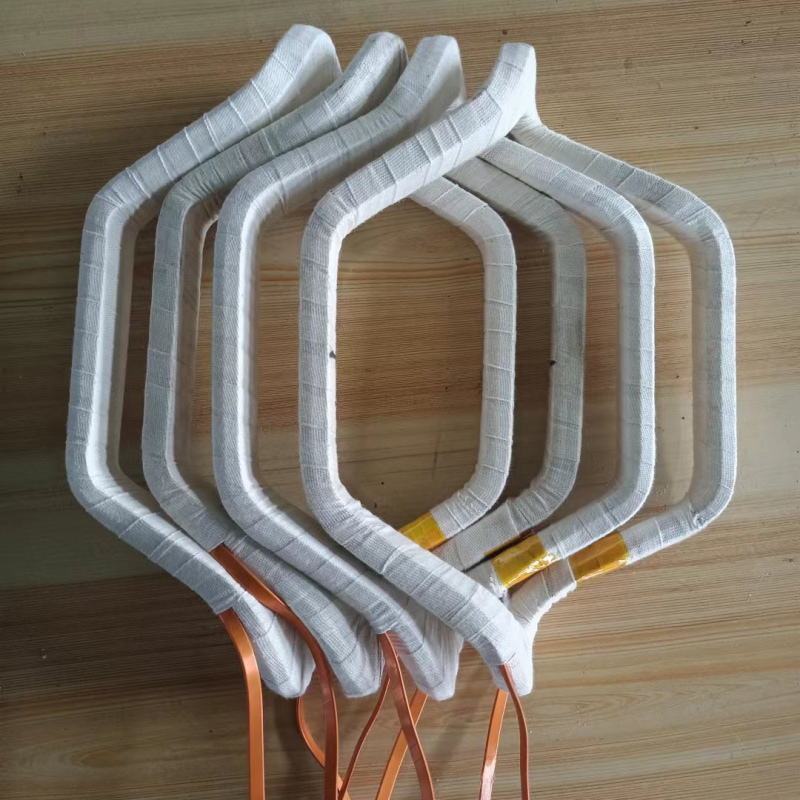

The entire coil forming process of the equipment is controlled by CNC servo. After manually assembling the formed coil, the equipment can automatically control the automatic operation of the nose clamp and straight clamp by pressing the start button. The equipment can automatically complete the automatic operation process of the length and angle of the straight part of the coil, as well as the top arc and nose height of the end according to the program. After the coil expansion is completed, the fixture automatically relaxes, the coil is manually removed, and the equipment status automatically resets.

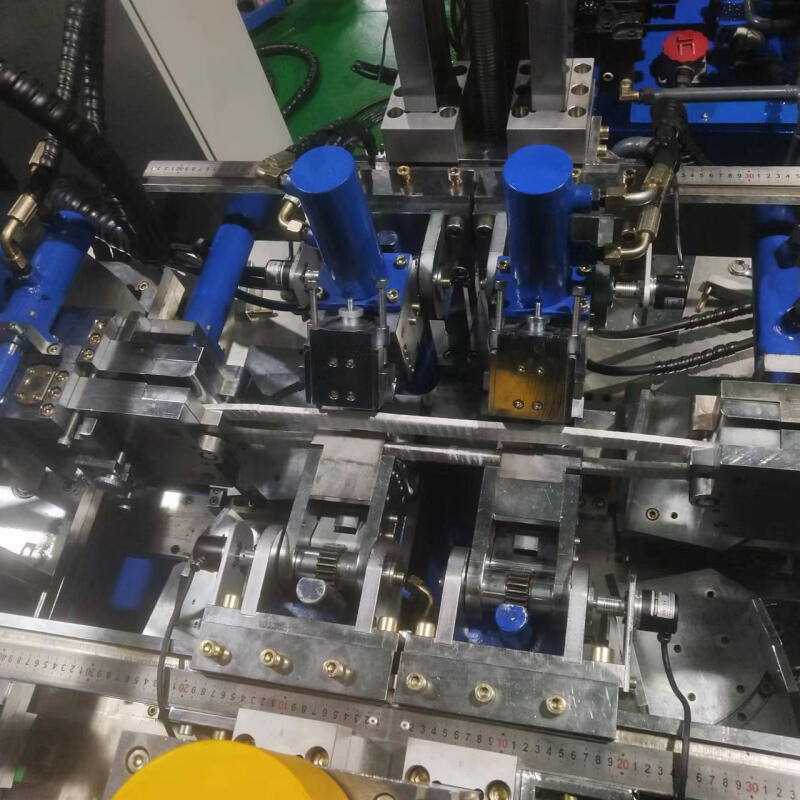

1、The main transmission adopts servo mode, and the clamp adopts oil cylinder and regulating valve to ensure accurate positioning of each workstation:
2、The four arm stretching adopts servo and ball screw transmission, which has the characteristics of accurate positioning and high accuracy
3、Reasonable structure: adjustable opening and turning angles, high degree of automation, simple operation, square
Convenient, reliable safety performance, simple maintenance, continuous operation, good stability, and high production efficiency.
4、 Expansion front perimeter range: 700-3500mm
5、 R coil nose inner circle radius range: 15-20mm
6.、Coil width range: 4-30mme
7、Coil wire height range:12-70mm
8、Length range of straight edge of coil:330-4500mm
9、Total coil width range:100-800mm
10、 Range of nasal elevation:0-400mm
11 、Coil nose tilt angle range :0-30°
12、Maximum angle between the upper edge of the coil and the centerline 10-75°
13. Maximum angle between the lower edge of the coil and the centerline 10-75 °
 |
 |
