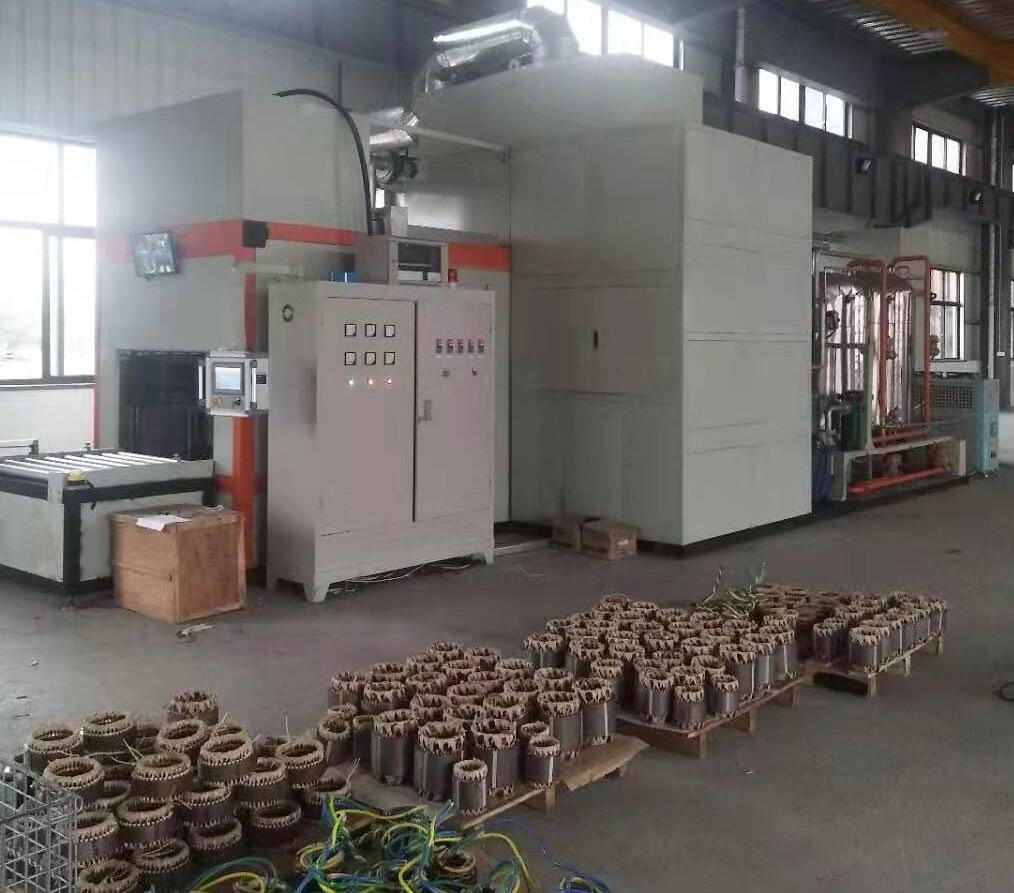

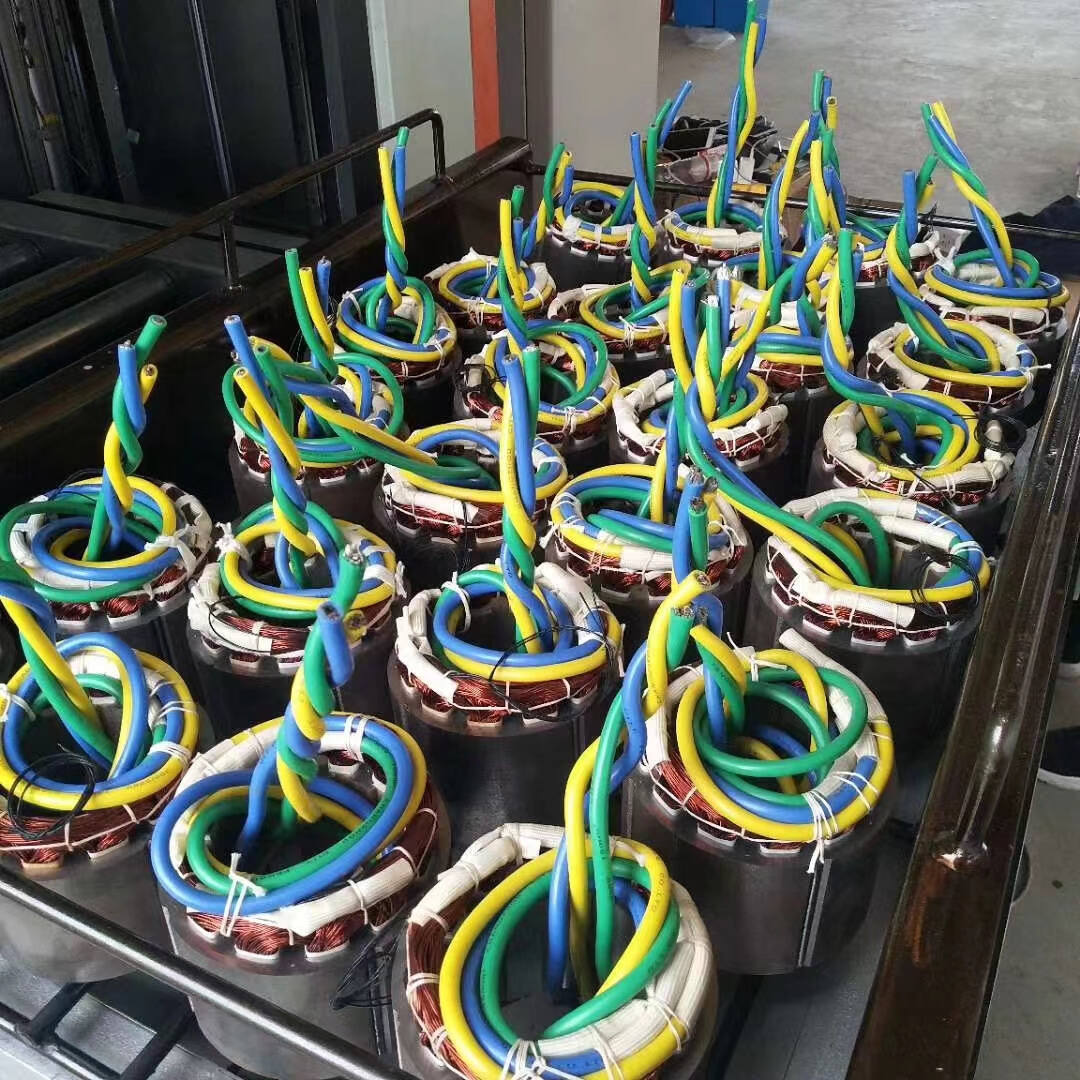

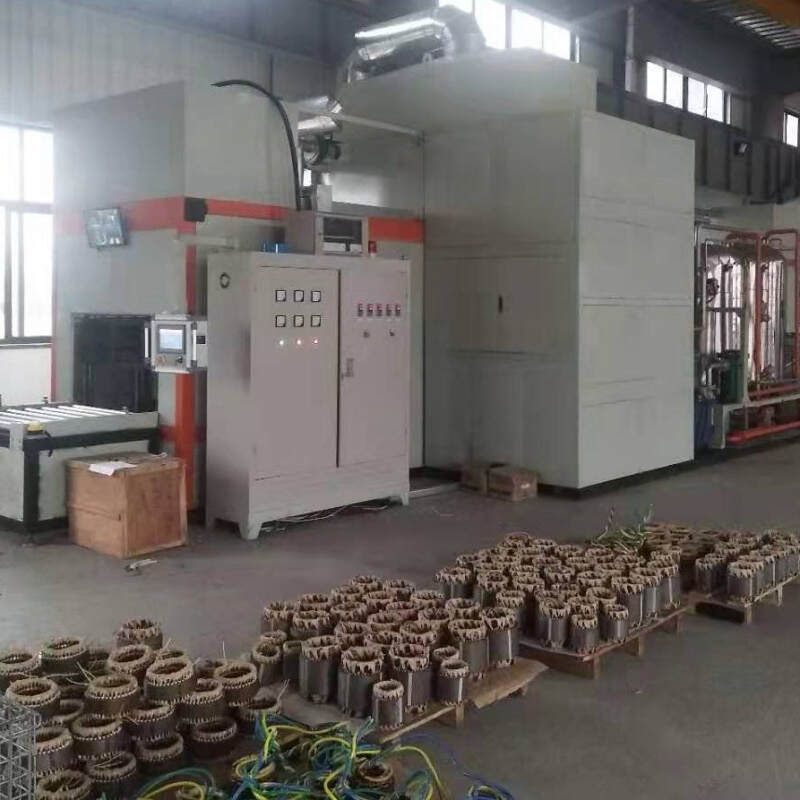

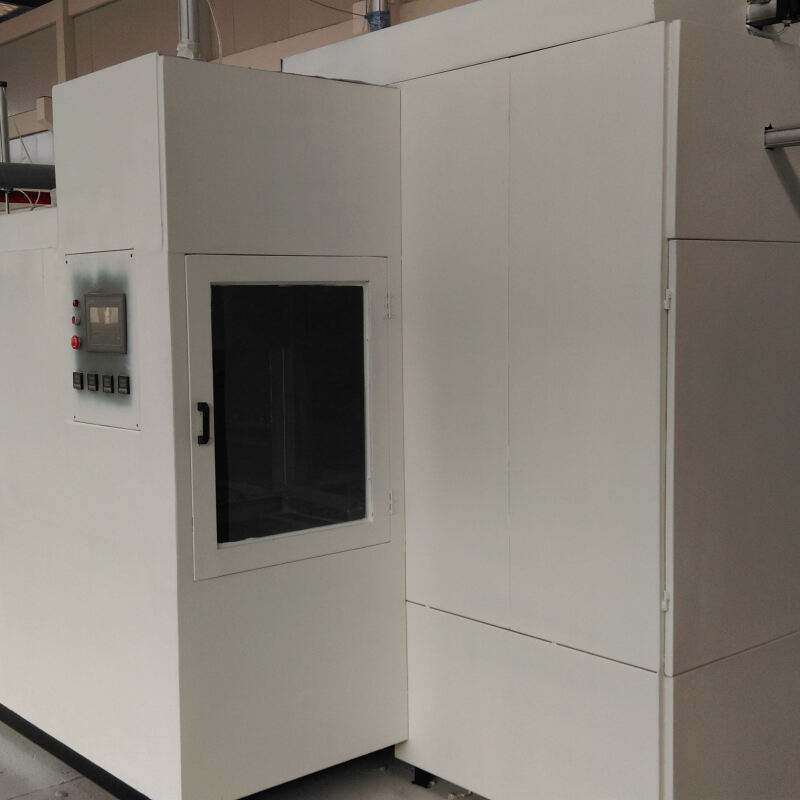

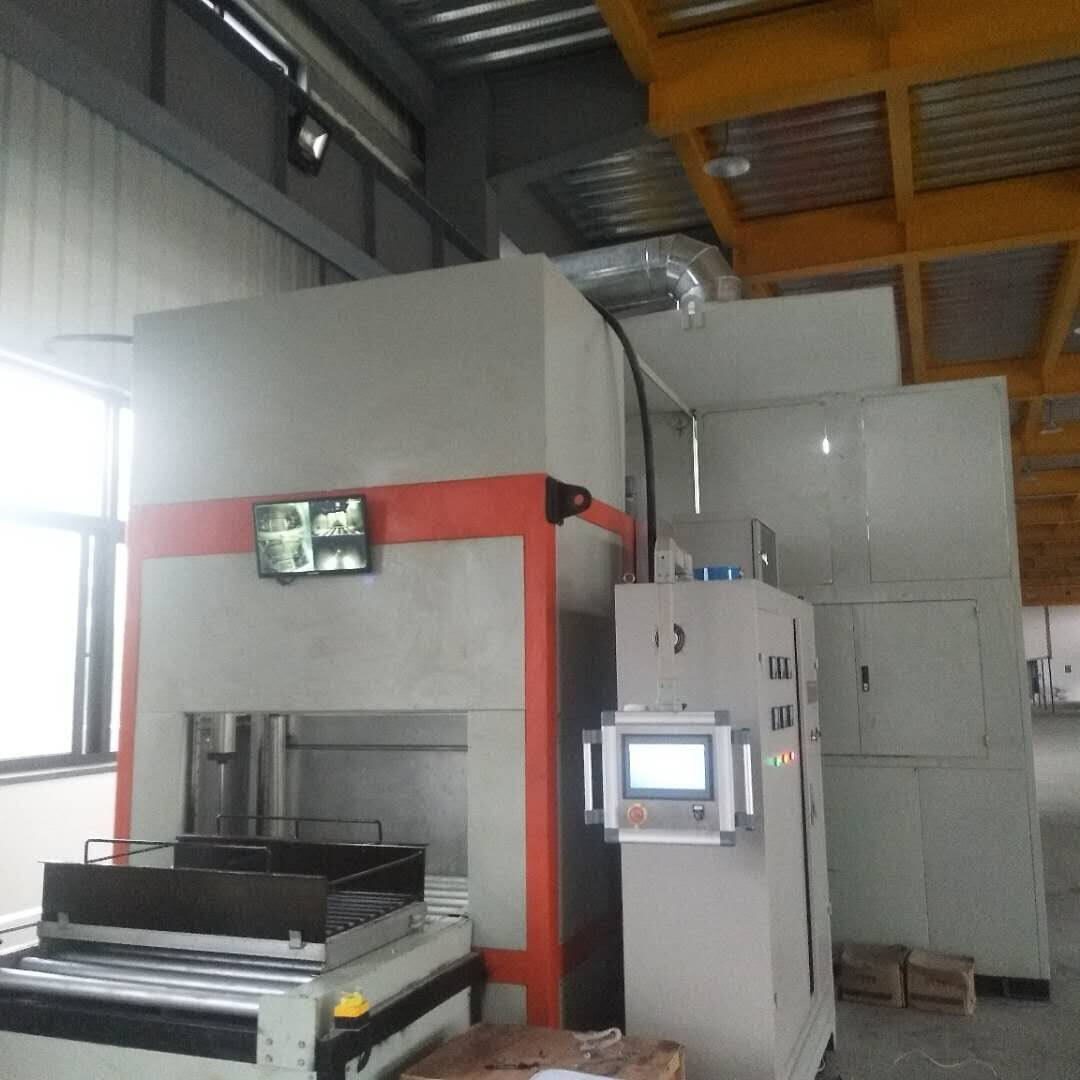

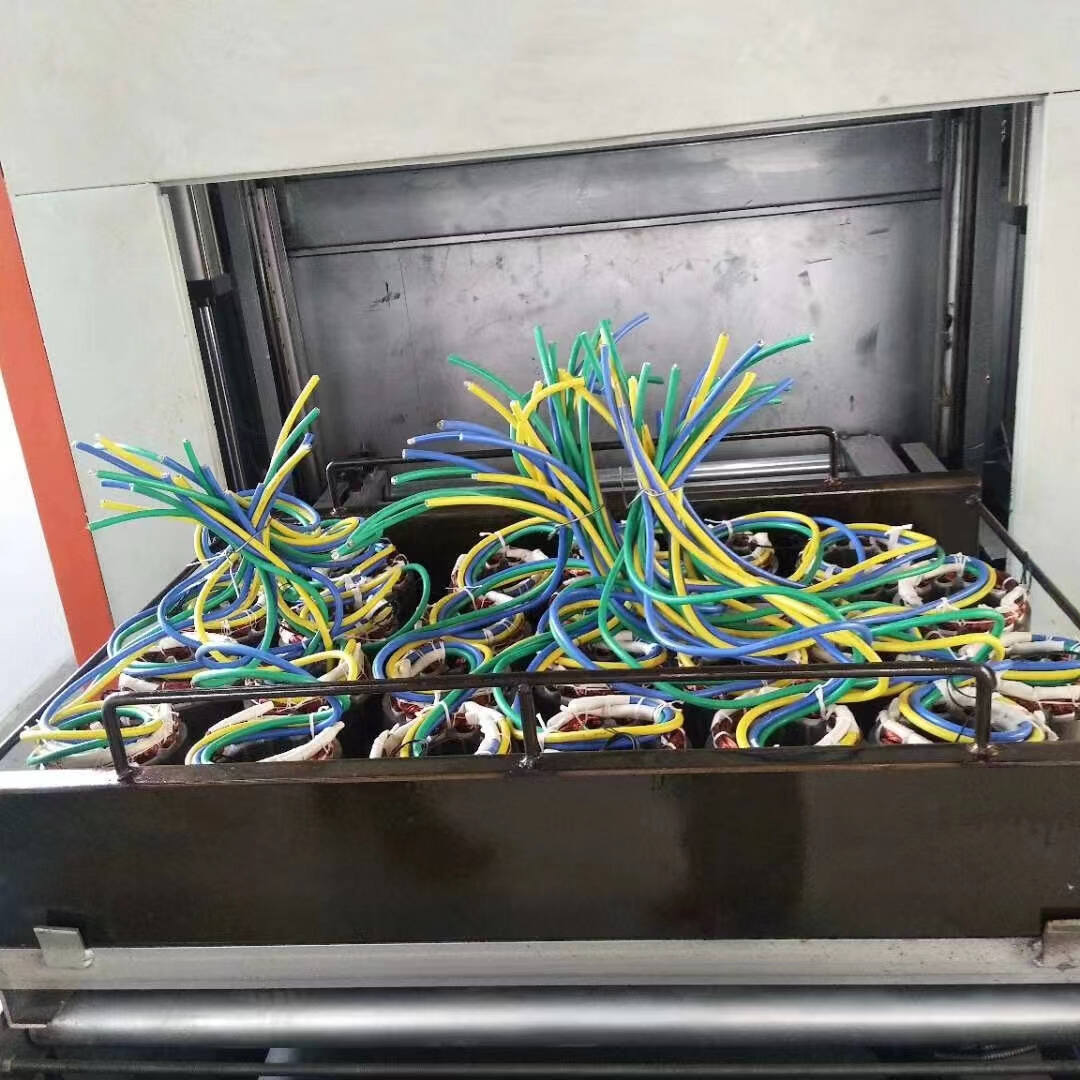

This series of products is widely used for vacuum insulation treatment of coils in motor, electrical appliance, special motor, water pump motor, magneto, transformer and other industries. It is an insulation treatment equipment for the motor, transformer industry and iron core to improve product quality, save costs, and enhance competitiveness. At the same time, it is a new type of energy-saving and environmental protection equipment that mainly undertakes the automatic pre drying, dipping, gel, curing and drying of workpieces, so that the paint film of the treated workpieces is uniform and full, It has good mechanical and electrical properties, with a basically consistent outer surface and good dynamic balance performance. And improve efficiency and save energy.
1.1. The immersion paint has good permeability and thorough immersion;
1.2. Using drying (dehumidification) can significantly reduce pre drying and cooling stations, reduce energy consumption and equipment investment;
1.3. The soaking and drying treatment cycle is greatly shortened, and the entire process only takes a few hours, improving work efficiency by 2-4 times;
1.4. Save 60-80% electricity;
1.5. The use of solvent free paint can improve the filling rate of insulation coils;
1.6. The paint film on the surface of the coil after immersion treatment generally does not exceed 0.02mm, and there is no need for paint scraping process. Compared to dripping paint, the surface of the iron core is protected by insulating paint, which has good rust resistance;
1.7. Due to the implementation of automatic control throughout the entire process, the stability of various process parameters is strictly guaranteed, thereby stabilizing product quality;
1.8. Easy cleaning and maintenance of paint soaking tanks and paint storage tanks;
1.9 Closed pipelines are used for paint transportation, utilizing differential pressure to reduce solvent evaporation and improve insulation paint utilization, which can significantly reduce insulation paint loss;
1.10. Continuous immersion mostly adopts a single layer of immersion paint, and the leads can not be immersed in paint to avoid hardening and embrittlement after immersion paint, which affects assembly and quality.
 |
 |
 |
 |
 |
 |
